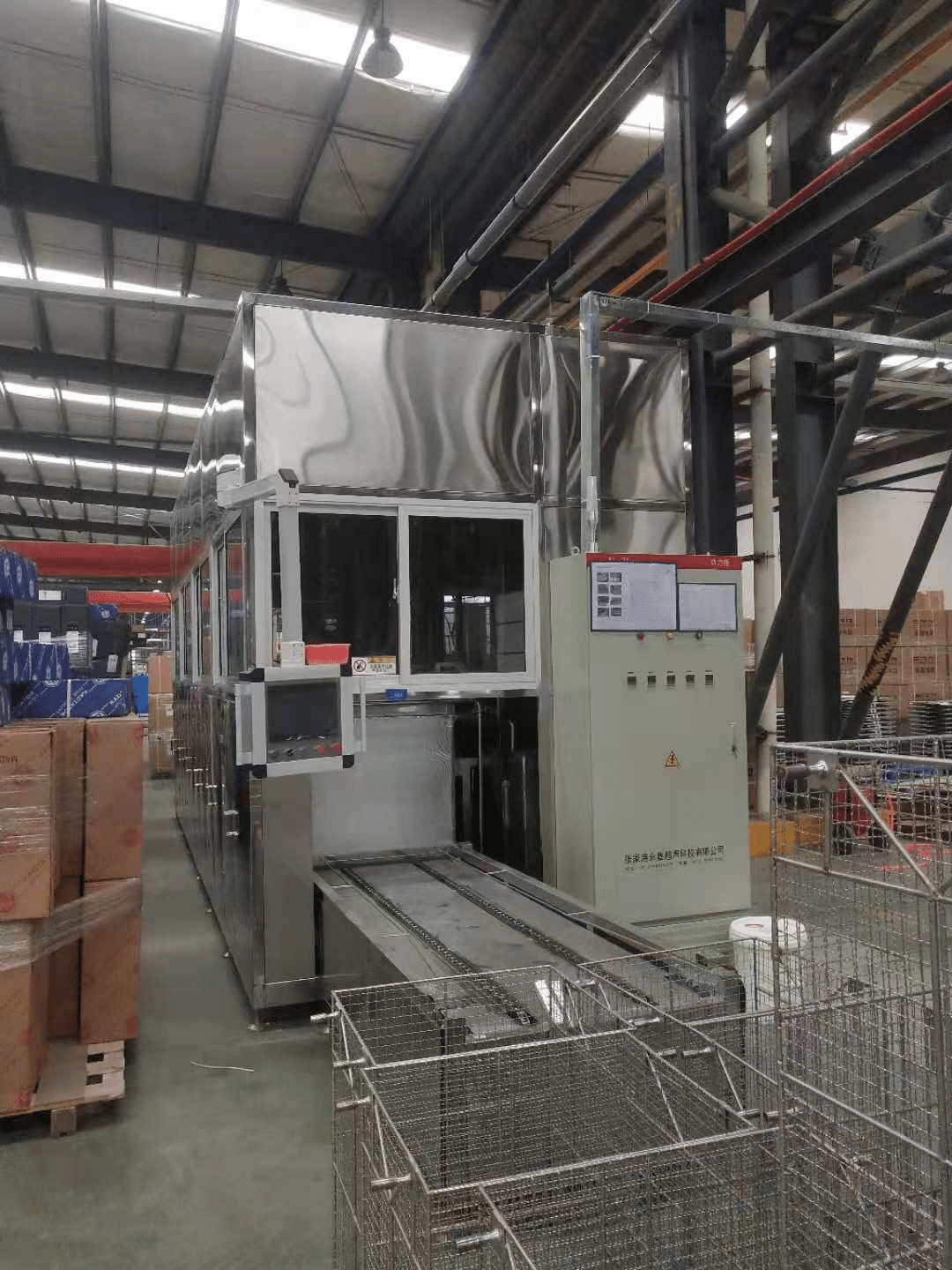

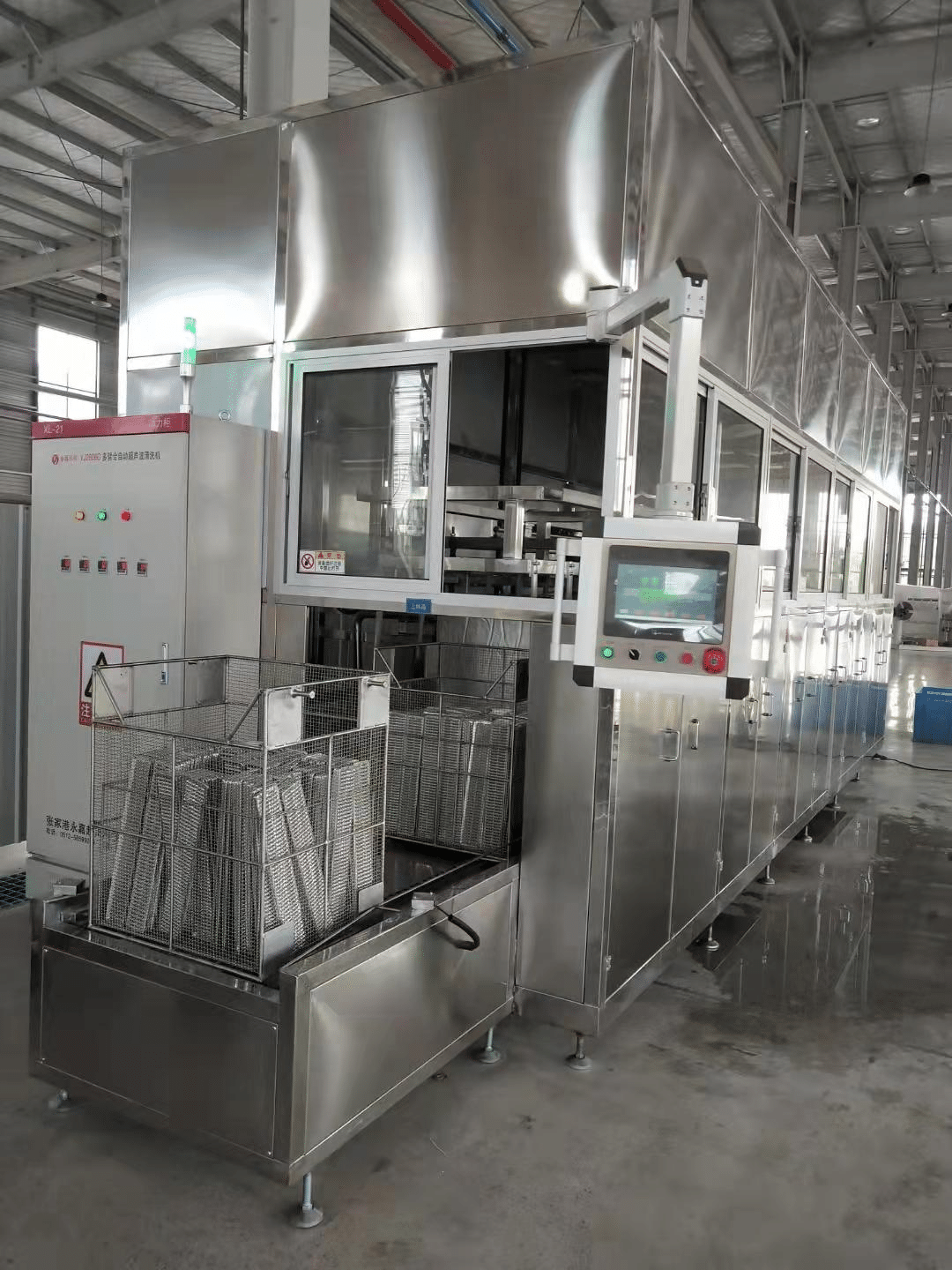

Name: Customized Ultrasonic Cleaner For Car Parts
Brand: DAG
SKU: 10

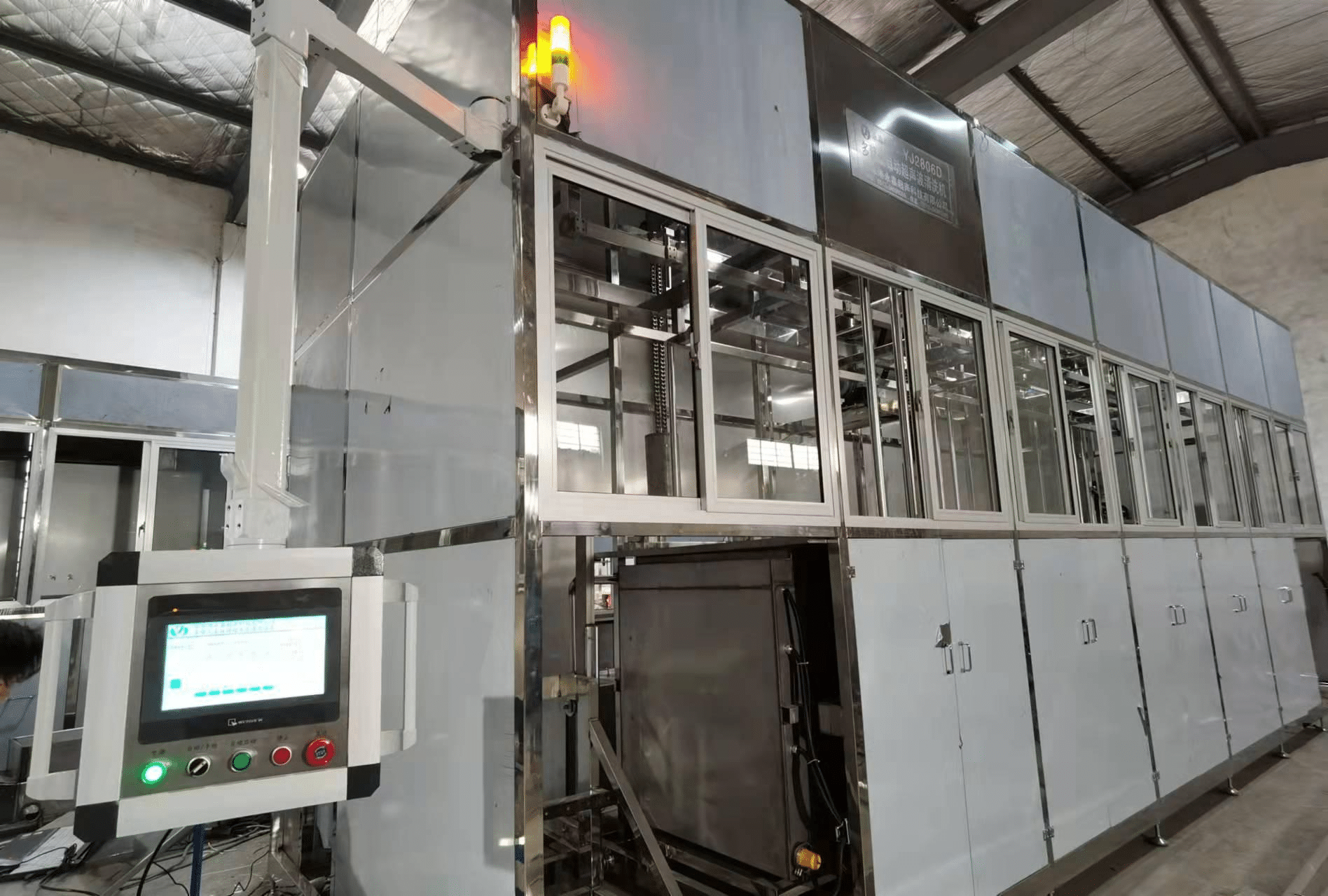

Customized Multi-Arm Ultrasonic Cleaning Machine

1. Fully automatic PLC control, with optional touchscreen operation panel;

2. Automatic and manual operation interchangeable, capable of storing multiple process programs;

3. Automatic fault alarm and diagnostic function;

4. Multi-arm displacement combination manipulator;

5. Four-sided overflow water in the cleaning tank, high-precision circulating filtration device, and liquid level protection control;

6. Multi-arm ultrasonic cleaning machines must have a fully enclosed top exhaust system.

Applications: Machinery Industry: Cleaning of bearings, oil pump nozzles, engine parts, automotive and motorcycle parts, compressor parts, sewing machine parts, and metal stamping parts.

Electronics Industry: Cleaning of electronic components, semiconductors, silicon wafers, circuit boards, glass shells, and magnetic materials.

Equipment Description

Loading →#1-2 Ultrasonic Rough Cleaning →#3 Spray Rinsing – #4 UltrasonicFine Cleaning → #5 Bubbling Rinsing – #6 Ultrasonic Rinsing→ #7 Wind Blow Dewatering → #8 Hot Air Drying一Unloading

Application areas

Application: automotive parts, radiator components, engine blocks, hardware, molds, tools, screws, nuts, cylinders, etc.

Manufacturing Facility

1. Automatic frequency tracking generator drive, modular design of the whole machine, easy to operation, convenience to maintenance.

2. Digital controlled display, one-button to start degassing, can quick remove the air in water, and have strong ultrasonic effect.

3. 20-95 ℃ heating temperature adjustable, 0-100% ultrasonic power adjustable, cleaning time can be adjusted in minutes or hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong.

4. Ultrasonic transducers, high strength glue bonding,have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment, when the machine has no liquid level protection, the ultrasonic work will have abnormal alarm function .

5. Pass 2500V high voltage test, strict production process and aging process,have mute cover/ 304 stainless steel washing basket, etc.and certificated by CE/ROSH/FCC.

6. Additional filtration and circulation, automatic basket lifting system can be added too.

ODM/OEM

1. Inner tank size: It can be customized according to customer’s product size &cleaning quantity.

2. Ultrasonic power: It can be customized according to the cleaning tank capacity. The larger the capacity, the more ultrasonic power is needed.

3. Ultrasonic frequency:20/25/28/35/40/60/68/80/168/200kHz can be optional 28/40kHz is the most commonly used.

4. Ultrasonic generator: There are split-type and integrated type can be optional.

5. Ultrasonic direction: Bottom shock and side shock. Bottom shock is the most commonly used. Transducers can be installed at the bottom and side if the product is bigger and structure is more complex.

6. Inner tank material: Stainless Steel SUS304/SUS316, the most commonly used is SUS304, we kindly recommended to use the stronger acid alkali SUS316 if the cleaning agent you will be used is strong acid or strong base.

7. Outer plate material: The material has drawing plate and mirror plate optional. The drawing plate is commonly used.

8. Stick Brand: We can stick the customer brand according to the authorization of the customer.

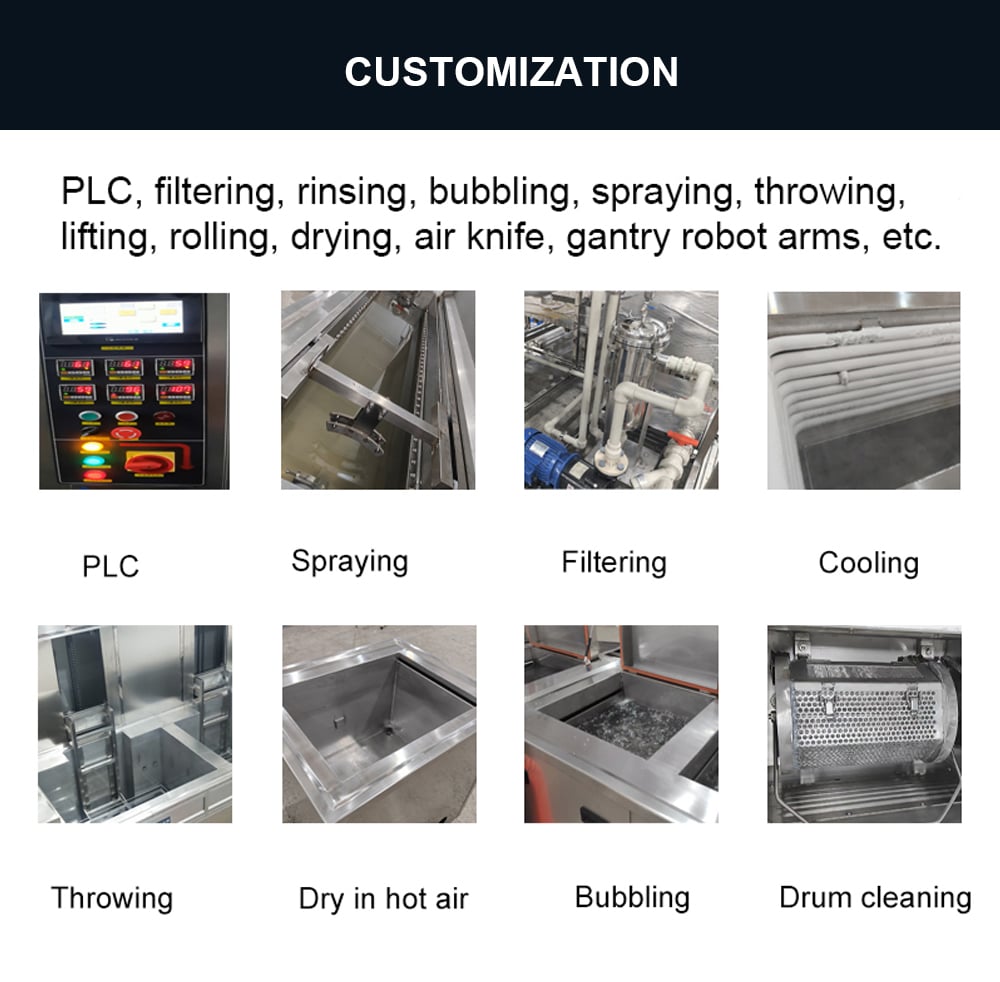

9. Function customized: Full-Automatic Equipment, Through-Type equipment,Filtration circulation system, High-pressure spraying, Bubbling, Drying,Lifting, Throwing, Cooling, Slow pulling and other functions.

FAQ

Q: Do the products have CE/ROHS certificate?
A: All of our products are under CE, FCC, and KC regulations and compliance to ROHS, REACH.

Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28khz frequency is stronger, better for car/motor /truck/ vessel parts(oils, grease, rust, pastes, etc. ); 40khz is better for PCB boards. Electronic parts, etc. Higher precision goods, higher frequency.

Q: Why should we use cleaning solution even though we have the ultrasonic cleaner?
A: Proper cleaning solution helps us to get the best cleaning effect. Like washing machine, when we use it to wash clothes, washing powder is needed to have the best effect.

Q: What’s the production lead time?
A: For bench-top ultrasonic cleaners, usually we have some in stock. If the qty is bigger, welcome to consult us. For industrial ultrasonic cleaners, production lead time is 7-30 days, depending on styles.

Q: What’s the payment method and terms?
A: For sample orders, 100% advance payment is required. For bulk orders,50%/80% deposit before production, the balance before shipment. We accept T/T. The payment terms EXW,FOB, CIF,DAP and DDP are offered.

Q: How about after sales services?
A: One-year warranty for all the ultrasonic cleaners. lf any technical problem during warranty time, replacement parts will be sent free. Technical support and customer service is also available lifelong.
