Radiator Fin Forming Machine Manufacturer
DAG is a reliable automotive radiator fin-forming machine manufacturer.Main products include various sorts of fin machines for the copper/aluminum radiator, automobile air conditioners, automobile intercoolers, oil radiators, stainless steel fins, etc. More than one hundred kinds of fin shapes are available for customers.
All types of machines can be customized according to your product size and capacity to meet your basic needs.
Fin Forming Machine
A fin-forming machine, also called a fin stamping machine, produces the following fins: straight and flat fins, serrated fins, perforated fins, wavy fins, louvered fins, and others. DAG offers different fin-forming machines for automotive radiator production plants, air conditioning manufacturers, and industrial applications.
DAG is your trusted fin-forming machine supplier in China. The fin-forming machine is suitable for aluminum and copper materials. It makes aluminum fins for fin and tube heat exchangers, including aluminum radiator fins, inter-cooler turbulence fins, condenser fins, and evaporator fins in automobile air conditioners.
If you have a business or project that needs a fin-forming machine, you will find the complete line at DAG. We have high-precision, multi-size equipment!

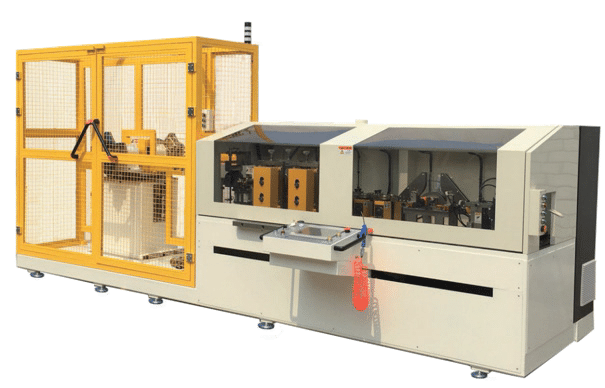

300m/min High Speed Aluminum Fin Machine
1. Feeding speed: Max. 300 m/min (max. 18,000 peaks/min); stable speed: 260 m/min
2. Cutting frequency: Max. 120 cuts/min (the cutting frequency
depends on the fin cutting length and the number of peaks)
3. Cutting accuracy: ±0 peaks — all cuts are made precisely at the peak crest
4. Coil inner diameter: φ150 mm – φ200 mm (expandable to φ300 mm)
5. Coil outer diameter: ≤ φ1800 mm
6. Coil weight: Max. 500 kg
7. Coil configuration: Dual coil holders (double decoiler)
8. Servo system: Panasonic
9. Fin material: Aluminum, thickness 0.05–0.20 mm
10. Fin width: 12–56 mm (customizable)
11. Fin height: 4–12 mm
12. Fin length: Customized to customer requirements
13. Overall dimensions (L × W × H): 5105 × 1200 × 2180 mm
14. Machine weight: Approx. 4,200 kg (4.2 metric tons)
15. Lubrication system: Imported precision oil-spraying system (Japanese-made)
16. Power supply: AC 3-phase, 380 V ±10%
17. Power frequency: 50 Hz ±2%
18. Installed power: 17 kW
19. Air pressure: 0.6 MPa — dry, filtered compressed air
20. Air consumption: Q > 0.1 m³/min
21. Machine color: Customizable according to customer-provided color samples
22. Remarks: Customization available for special requirements

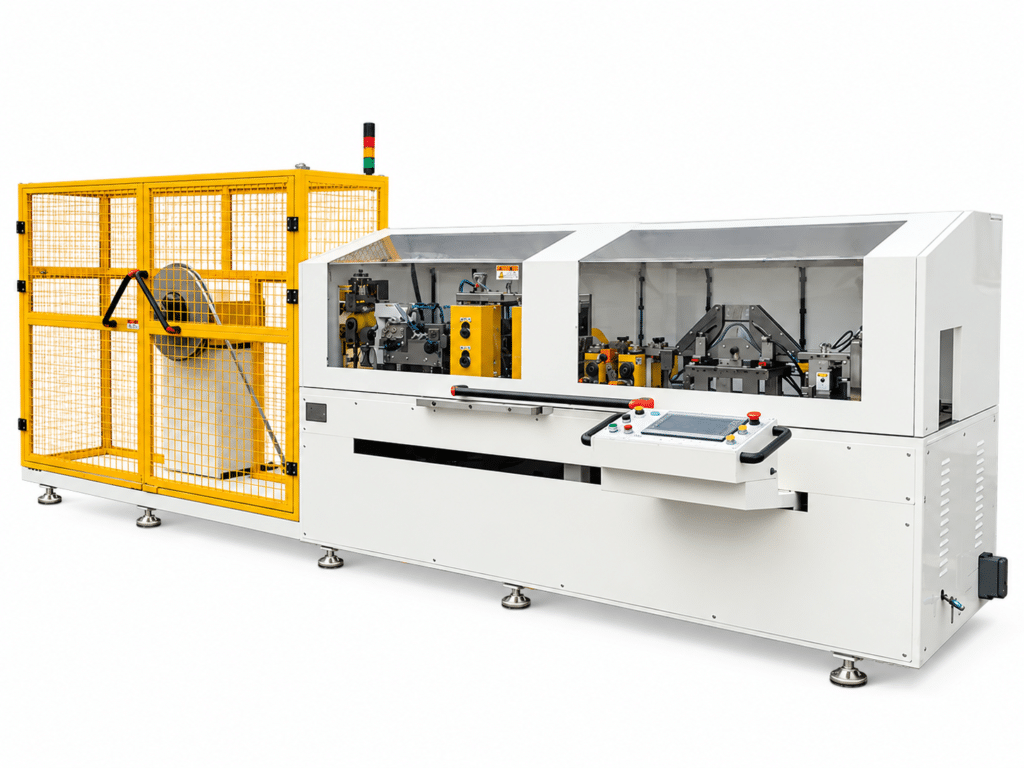

200m/min Medium Speed Aluminum Fin Machine
1. Feeding speed: Max. 200 m/min (max. 13,000 peaks/min); stable speed: 180 m/min
2. Cutting frequency: Max. 100 cuts/min (the cutting frequency
depends on the fin cutting length and the number of peaks)
3. Cutting accuracy: ±0 peaks — all cuts are made precisely at the peak crest
4. Coil inner diameter: φ150 mm – φ200 mm (expandable to φ300 mm)
5. Coil outer diameter: ≤ φ1800 mm
6. Coil weight: Max. 500 kg
7. Coil configuration: Single coil holders (Single decoiler)
8. Servo system: Panasonic
9. Fin material: Aluminum, thickness 0.05–0.20 mm
10. Fin width: 12–56 mm (customizable)
11. Fin height: 4–12 mm
12. Fin length: Customized to customer requirements
13. Overall dimensions (L × W × H): 5103 × 900 × 1836 mm
14. Machine weight: Approx. 4,000 kg (4 metric tons)
15. Lubrication system: Imported precision oil-spraying system (Japanese-made)
16. Power supply: AC 3-phase, 380 V ±10%
17. Power frequency: 50 Hz ±2%
18. Installed power: 15 kW
19. Air pressure: 0.6 MPa — dry, filtered compressed air
20. Air consumption: Q > 0.1 m³/min
21. Machine color: Customizable according to customer-provided color samples
22. Remarks: Customization available for special requirements

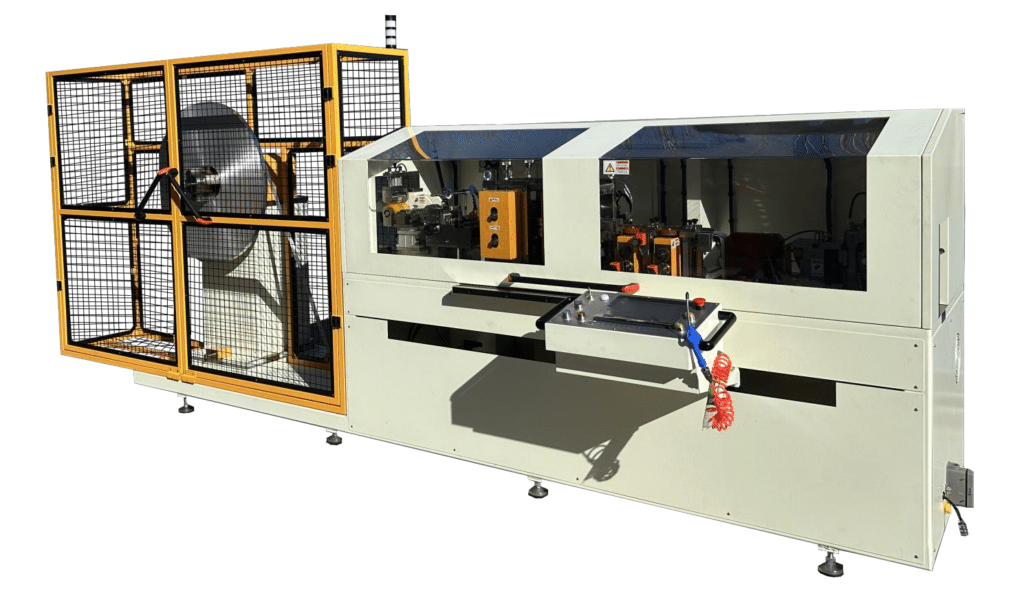

160m/min Aluminum Fin Machine
1. Feeding speed: Max. 160 m/min (max. 10,000 peaks/min); stable speed: 150 m/min
2. Cutting frequency: Max. 100 cuts/min (the cutting frequency
depends on the fin cutting length and the number of peaks)
3. Cutting accuracy: ±0 peaks — all cuts are made precisely at the peak crest
4. Coil inner diameter: φ150 mm – φ200 mm (expandable to φ300 mm)
5. Coil outer diameter: ≤ φ1800 mm
6. Coil weight: Max. 500 kg
7. Coil configuration: Single coil holders (Single decoiler)
8. Control system: Innovance
9. Fin material: Aluminum, thickness 0.05–0.15 mm (customizable)
10. Fin width: 12–60 mm (customizable)
11. Fin height: 4–10 mm
12. Fin length: Customized to customer requirements
13. Overall dimensions (L × W × H): 4900 × 900 × 1836 mm
14. Machine weight: Approx. 2,700 kg (2.7 metric tons)
15. Lubrication system: standard
16. Power supply: AC 3-phase, 380 V ±10%
17. Power frequency: 50 Hz ±2%
18. Installed power: 15 kW
19. Air pressure: 0.6 MPa — dry, filtered compressed air
20. Air consumption: Q > 0.1 m³/min
21. Machine color: Customizable according to customer-provided color samples
22. Remarks: Customization available for special requirements

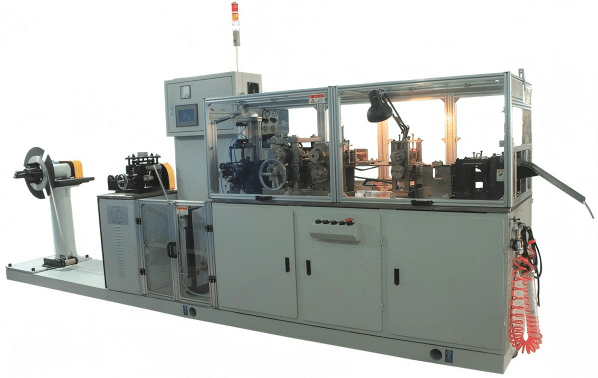

150m/min Aluminum Fin Machine
1. Feeding speed: Max. 150 m/min; stable speed: W16-W50 (90～110/min) ; W50-W105 (80～90/min)
2. Cutting frequency: Max. 60 cuts/min (the cutting frequency
depends on the fin cutting length and the number of peaks)
3. Cutting accuracy: ±0 peaks — all cuts are made precisely at the peak crest
4. Coil inner diameter: φ150 mm – φ200 mm
5. Coil outer diameter: ≤ φ1200 mm
6. Coil weight: Max. 500 kg
7. Coil configuration: Single coil holders (Single decoiler)
8. Application: Interchangeable forming roll for heat-dissipation fin strips with a width of up to 100 mm.
9. Fin length: Customized to customer requirements
10. Overall dimensions (L × W × H): 5000 × 800 × 1900 mm
11. Machine weight: Approx. 2,000 kg (2 metric tons)
12. Power supply: AC 3-phase, 380 V ±10%
13. Power frequency: 50 Hz ±2%
14. Installed power: 7 kW
15. Air pressure: 0.5 MPa — dry, filtered compressed air
16. Air consumption: Q > 0.1 m³/min
17. Machine color: Customizable according to customer-provided color samples
18. Remarks: Customization available for special requirements
60m/min Standard Aluminum and Copper Fin Machine
1. Feeding speed: Max. 60 m/min; stable speed: 40m/min
2. Cutting frequency: Max. 60 cuts/min (the cutting frequency
depends on the fin cutting length and the number of peaks)
3. Cutting accuracy: ±0 peaks — all cuts are made precisely at the peak crest
4. Coil inner diameter: φ200±20 mm
5. Coil outer diameter: ≤ φ1200 mm
6. Coil configuration: Single coil holders (Single decoiler)
7. Application: Interchangeable forming roll for heat-dissipation fin strips with a width of up to 100 mm.
8. Fin length: Customized to customer requirements
9. Overall dimensions (L × W × H): 4000 X 900X 1800 mm
10. Machine weight: Approx. 1,800 kg (1.8 metric tons)
11. Power supply: AC 3-phase, 380 V ±10%
12. Power frequency: 50 Hz ±2%
13. Installed power: 4.5 kW
14. Air pressure: 0.5 MPa — dry, filtered compressed air
15. Air consumption: Q > 0.1 m³/min
16. Machine color: Customizable according to customer-provided color samples
17. Remarks: Customization available for special requirements
Fin Stacking Machine
The Fin Stacking Machine is an automated stacking device designed for receiving, conveying, and orderly stacking of heat-dissipation fin strips (corrugated fin stock) after forming. It is typically integrated with a fin rolling/wave-forming line to realize continuous, unmanned operation of the fin production process.
Formed fin strips are transferred from the upstream forming unit onto the conveying device, which delivers them synchronously to the stacking station. A receiving mechanism counts the fins by quantity or pitch and accumulates them layer by layer into a preset stack. Upon reaching the set stacking quantity, the completed stack is discharged, and the cycle repeats automatically.

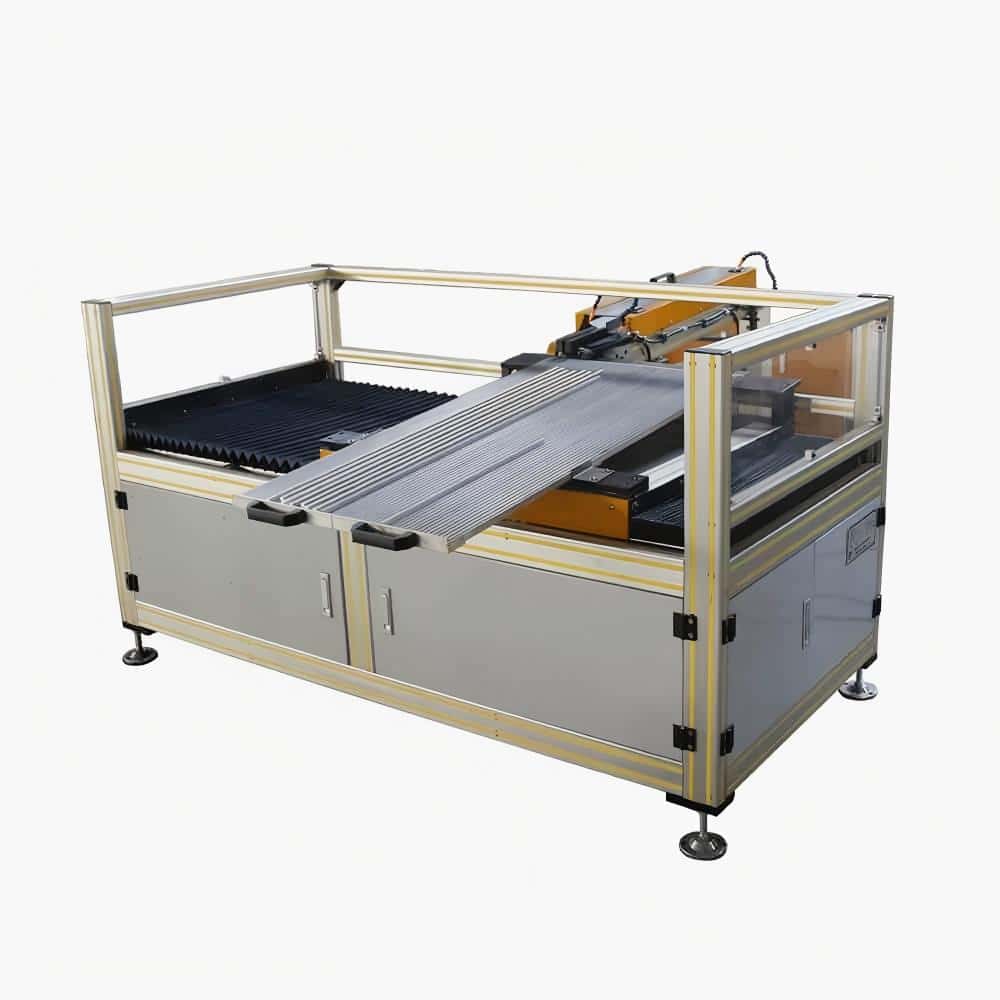

Pallets fin stacking machine
1. Fin specification: per customer’s requirements (customizable)
2. Number of fin slots per tray: per customer’s requirements
3. Tray changeover: manual/automatic
4. Fin tray: supplied by customer (excluded from scope of supply)
5. Production capacity: matched to fin forming machine line speed
6. Drive type: servo + pneumatic
7. Overall dimensions (L×W×H): 2200 × 3200 × 1700 mm
8. Net weight: approx. 1500 kg
9. Power supply: 220 V AC ±10%
10. Frequency: 50 Hz ±2%
12. Pneumatic supply: dry, cooled, filtered compressed air, 0.4–0.8 MPa
13. Noise level: ≤70 dB(A)
14. Equipment color: per customer’s color samples (customizable)

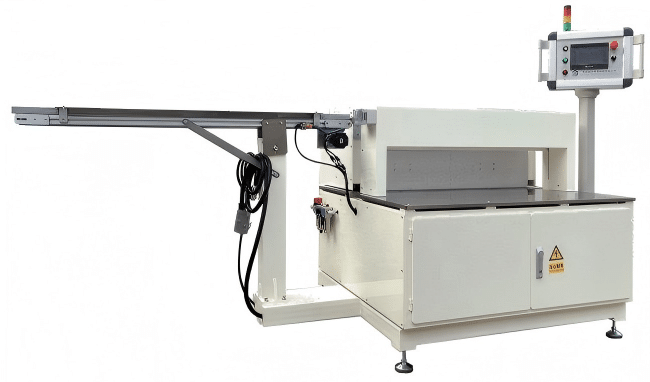

1000 Layering Fin Stacking Machine
1. Fin wave height: H = 4–12 mm (adjustable, customizable)
2. Fin width: 26–105 mm (adjustable, customizable)
3. Fin length: Lmax = 900 mm (adjustable, customizable)
4. Stacking capacity: Nmax = 8–20 fins/stack (adjustable, customizable)
5. Receiving rate: 70–80 fins/min
6. Conveying device overall dimensions (L×W×H): 1510 × 300 × 1120 mm
7. Stacking device overall dimensions (L×W×H): 1590 × 2000 × 1580 mm
8. Net weight: approx. 1000 kg
9. Power supply: 220 V AC ±10%
10. Frequency: 50 Hz ±2%
11. Power: 3 kW
12. Pneumatic supply: dry, cooled, filtered compressed air, 0.4–0.8 MPa
13. Noise level: ≤70 dB(A)
14. Equipment color: per customer’s color samples (customizable)

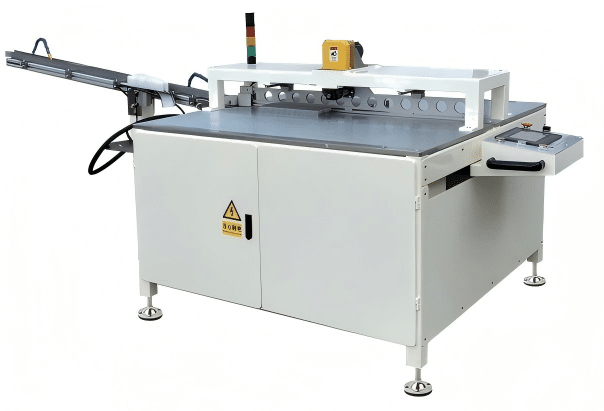

Double-station fin stacking machine
1. Fin height: H = 4–12 mm (adjustable, customizable)
2. Fin width: \_\_\_ mm (adjustable, customizable, as per customer’s requirement)
3. Fin length: Lmax = 900 mm (adjustable, customizable)
4. Feeding rate: 70–80 pcs/min (dual-station); 40–50 pcs/min (single-station)
5. Overall dimensions (L×W×H): 3000 × 1265 × 1040 mm
6. Net weight: approx. 500 kg
7. Power supply: 220 V AC ±10%
8. Power: 2 kW
9. Pneumatic supply: dry, cooled, filtered compressed air, 0.4–0.8 MPa
10. Noise level: ≤70 dB(A)

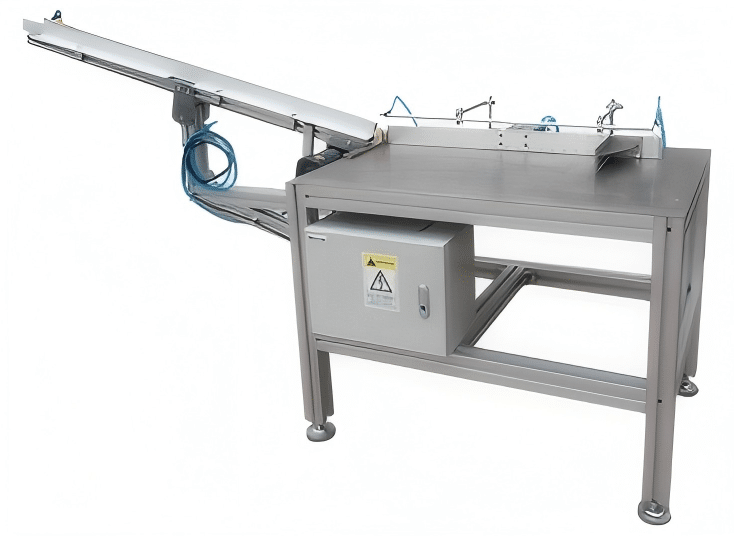

Economical type fin stacking machine (push plate type)
1. Fin height: H = 4–16 mm (adjustable, customizable)
2. Fin width: \_\_\_ mm (adjustable, customizable, per customer’s requirements)
3. Fin length: 100–1000 mm (adjustable, customizable)
4. Receiving rate: max. 40 pcs/min
5. Overall dimensions (L×W×H): 2540 × 820 × 1150 mm
6. Net weight: approx. 150 kg
7. Power supply: 220 V AC ±10%
8. Power: 300 W
9. Pneumatic supply: dry, cooled, filtered compressed air, 0.4–0.8 MPa
10. Noise level: ≤70 dB(A)
11. Equipment color: per customer’s color samples (customizable)

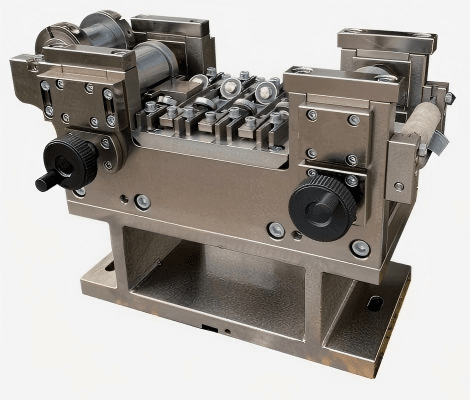

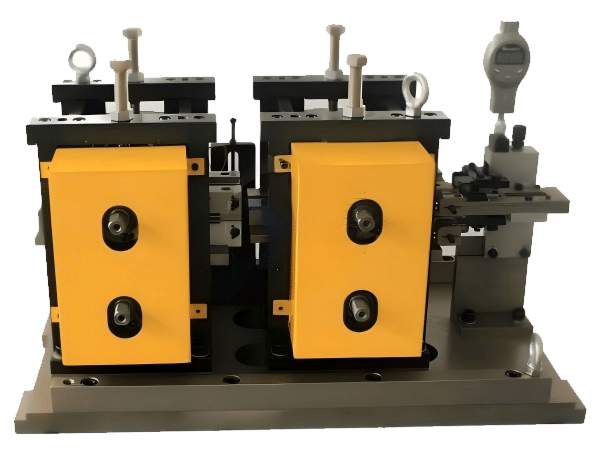

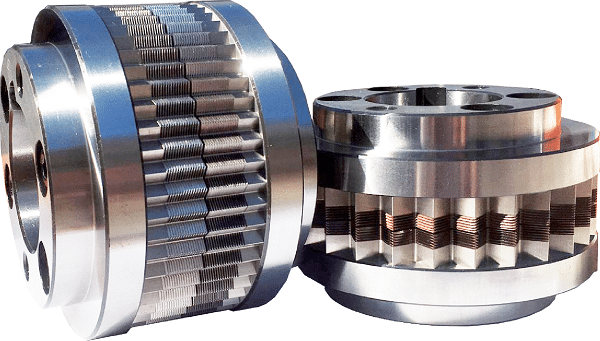

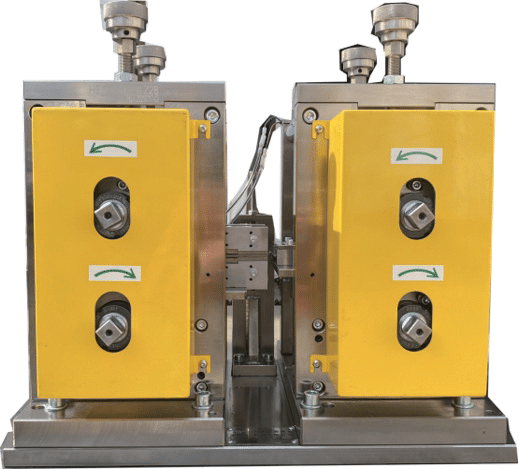

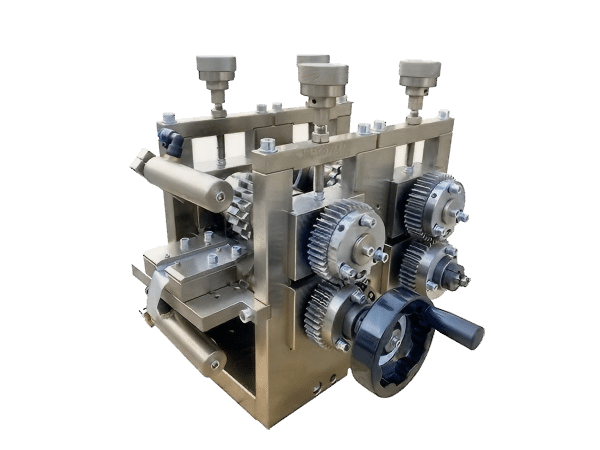

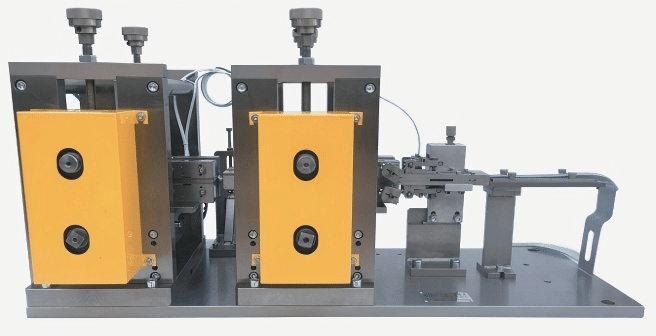

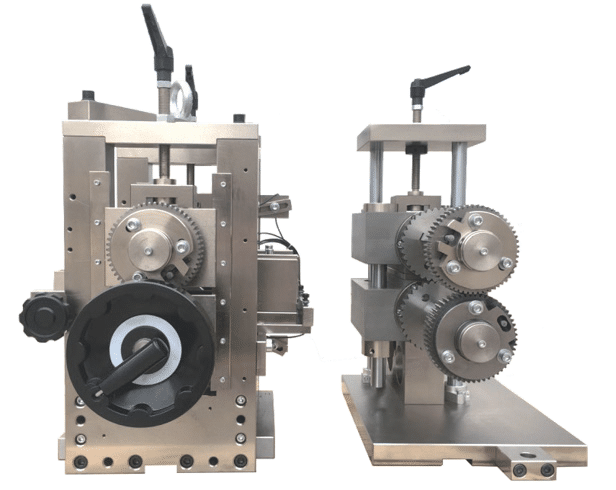

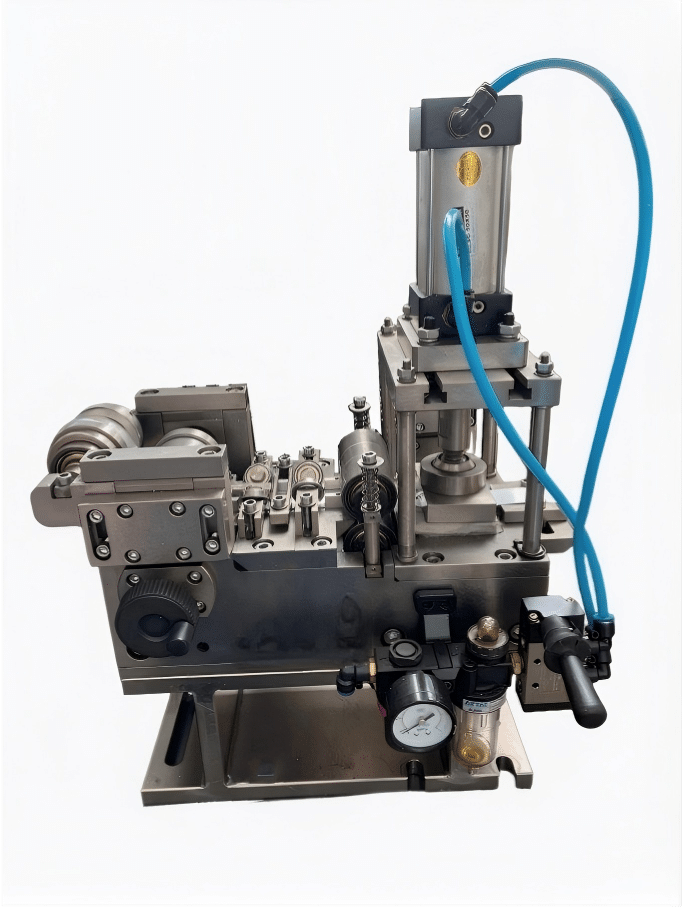

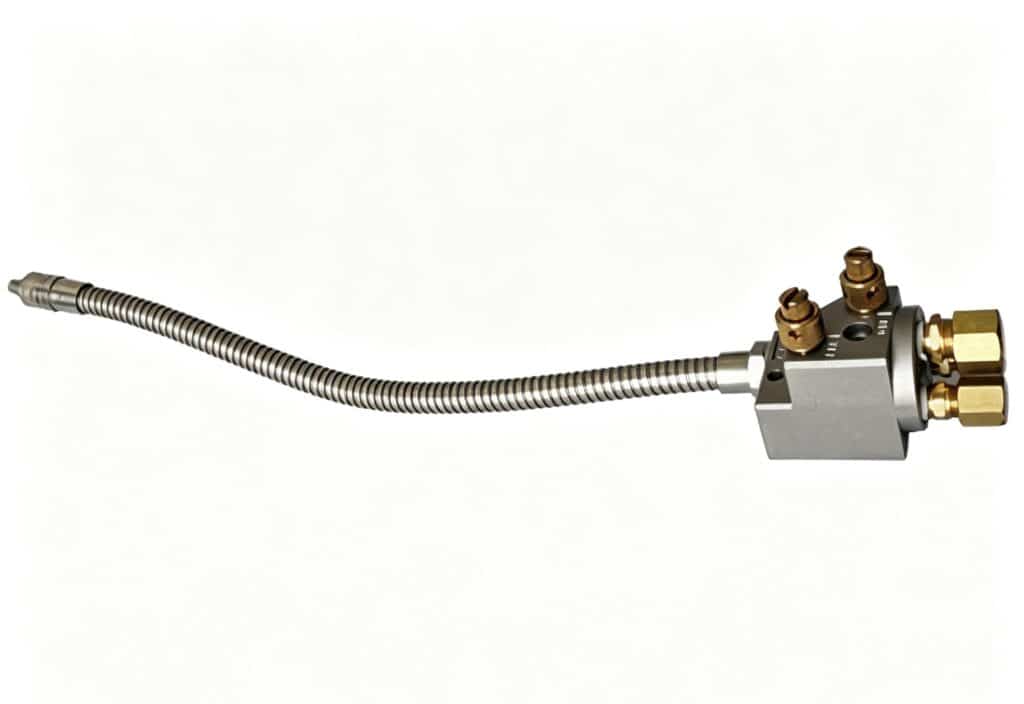

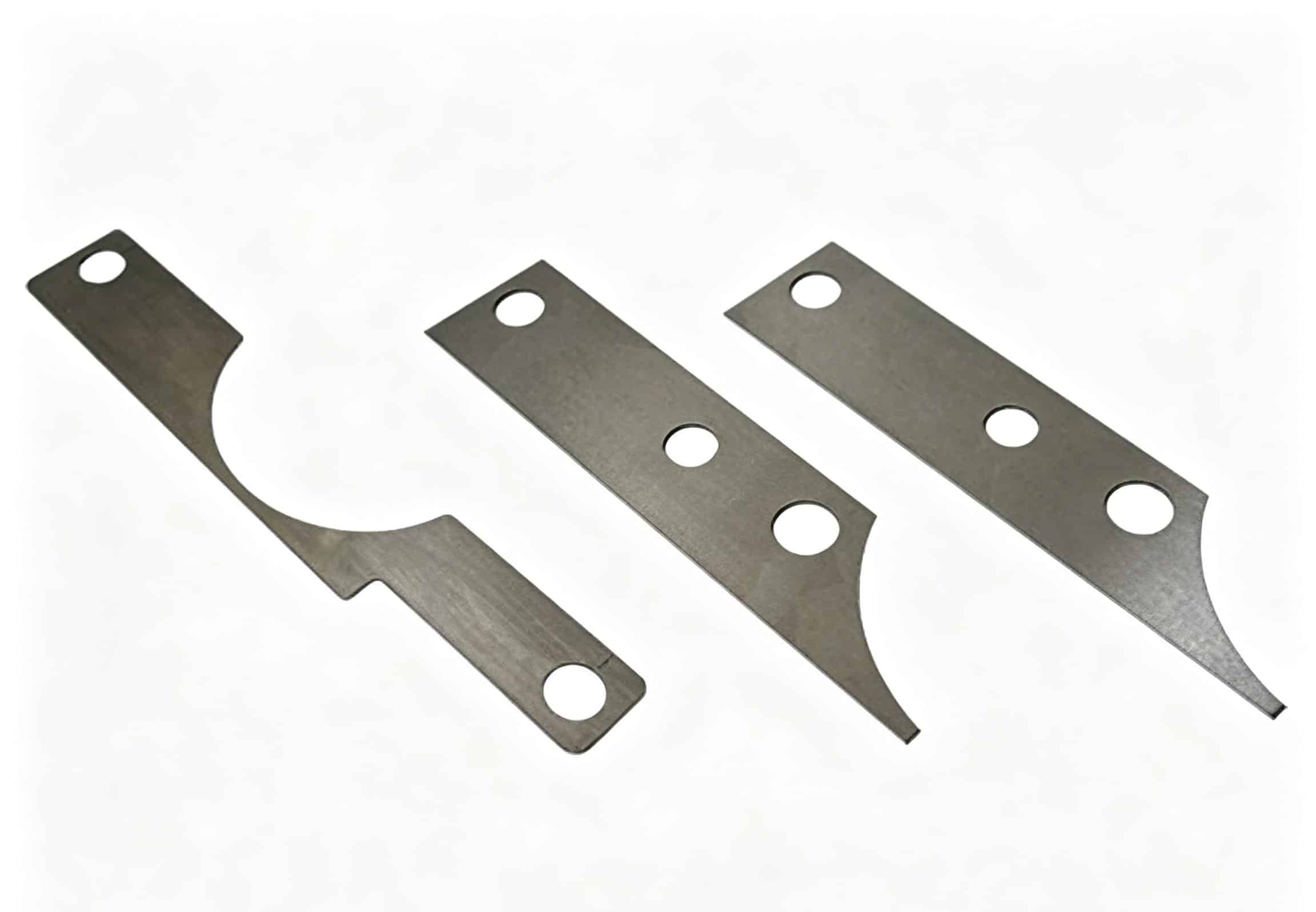

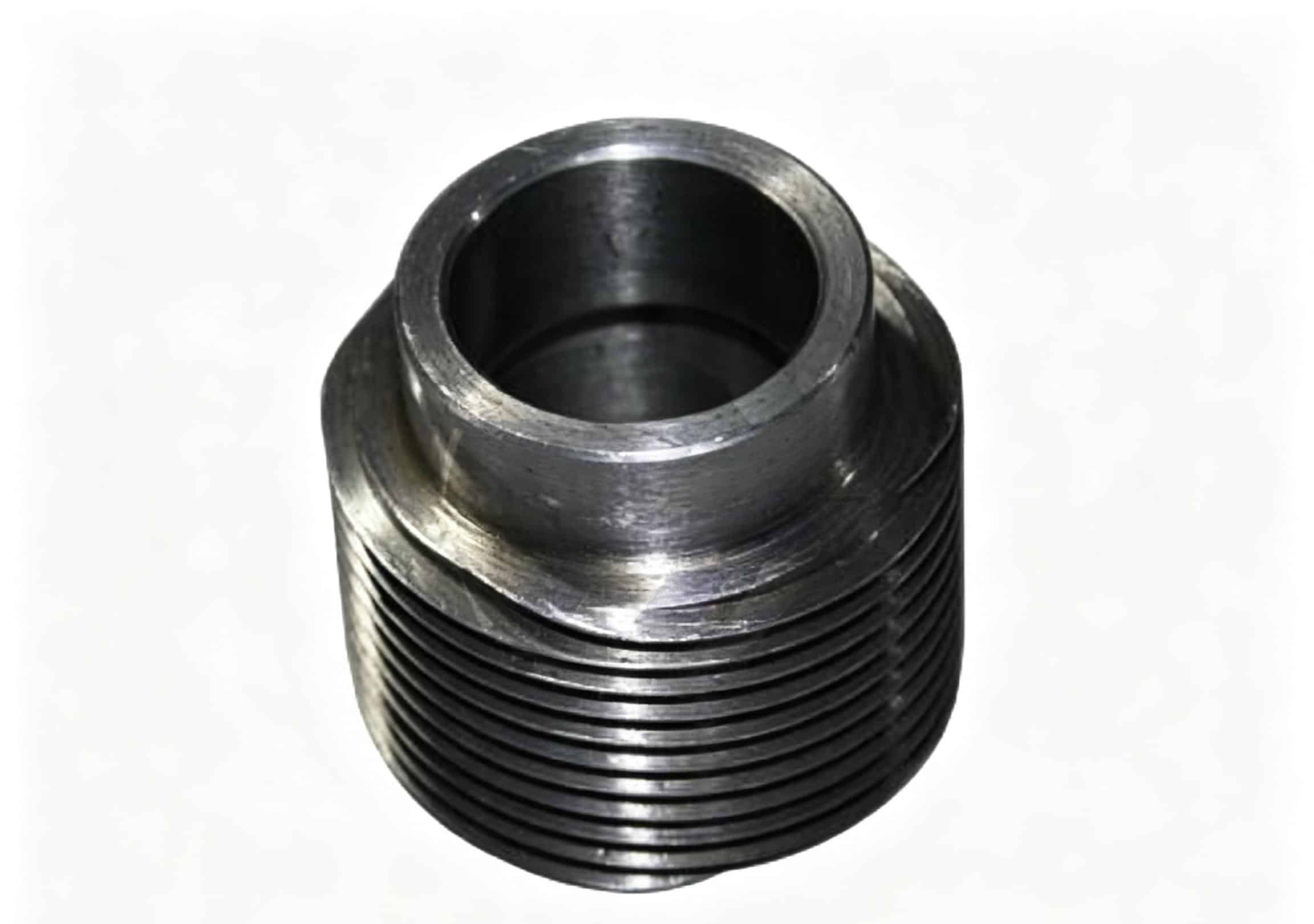

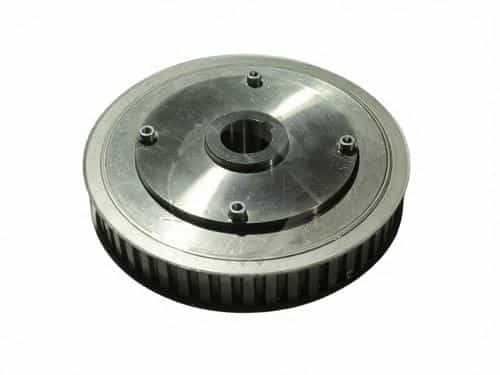

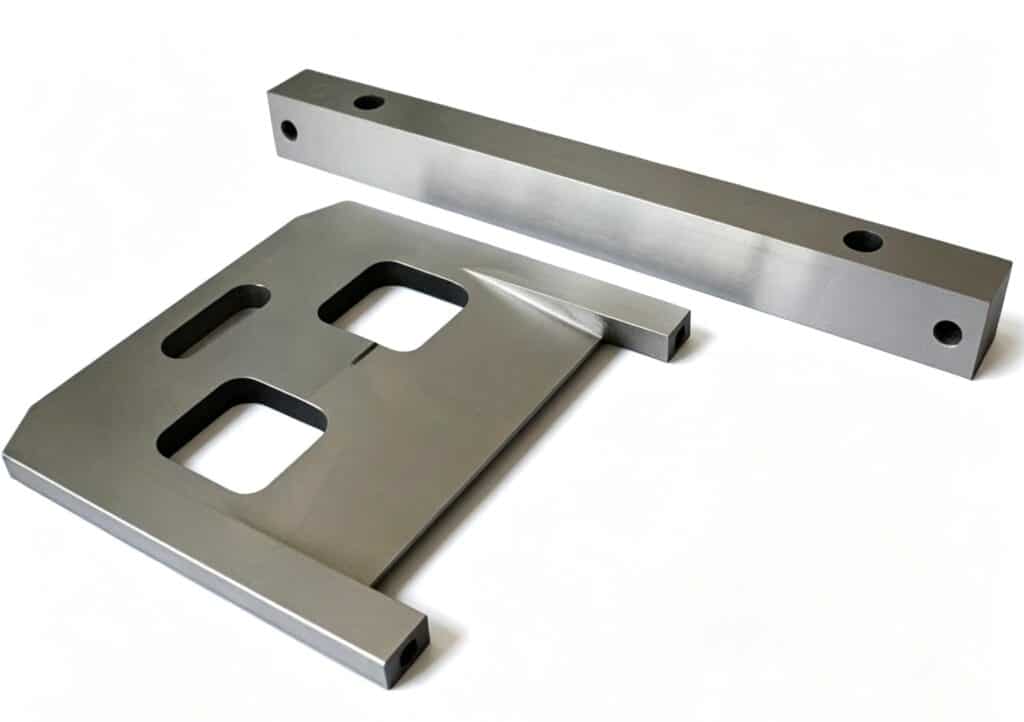

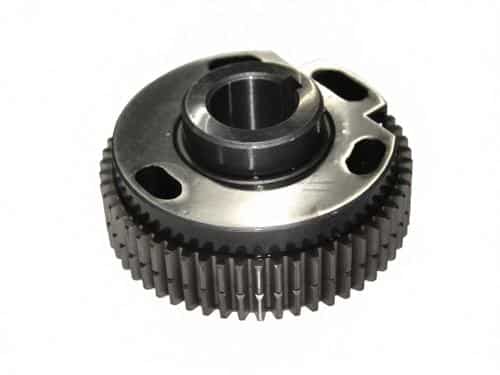

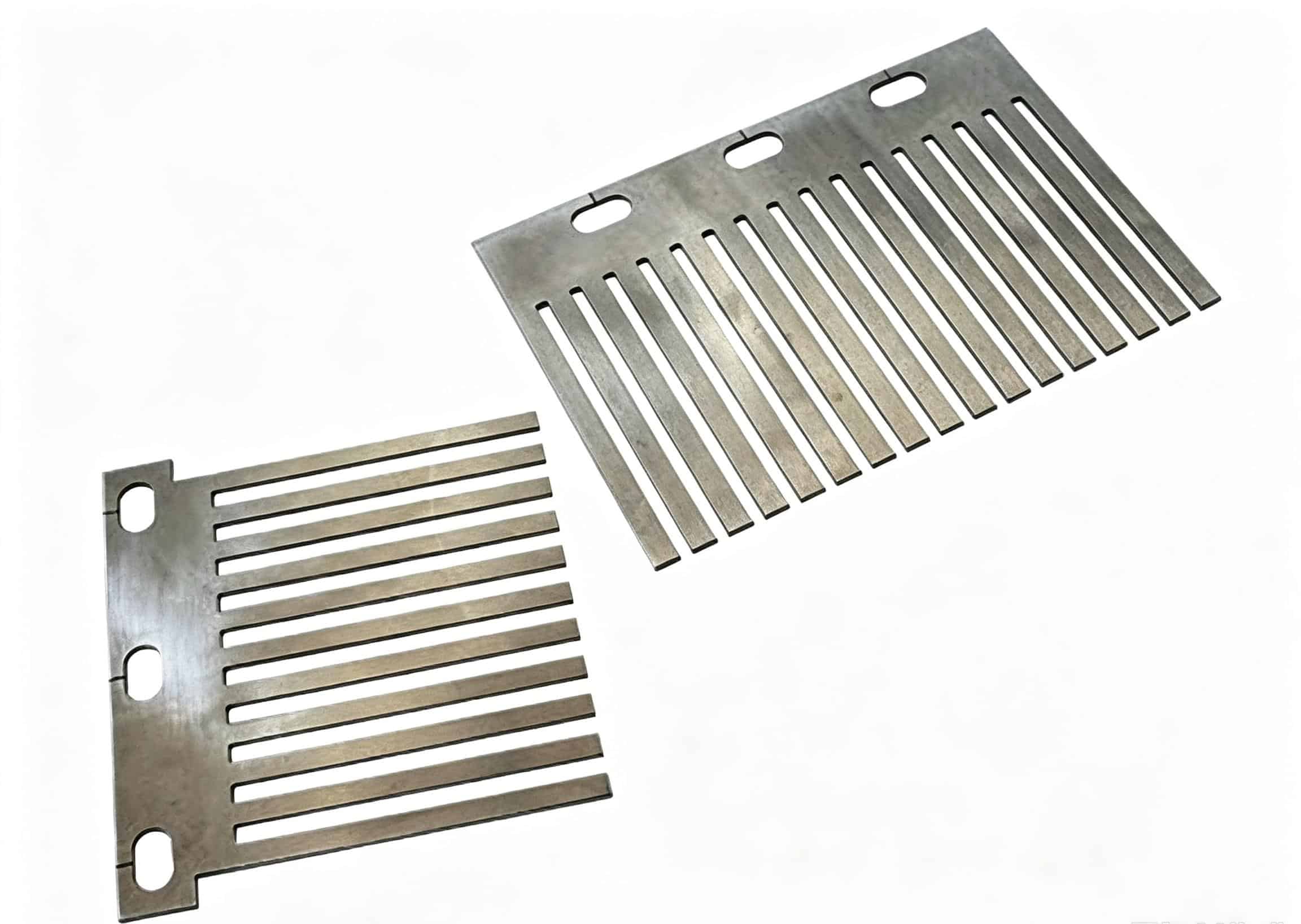

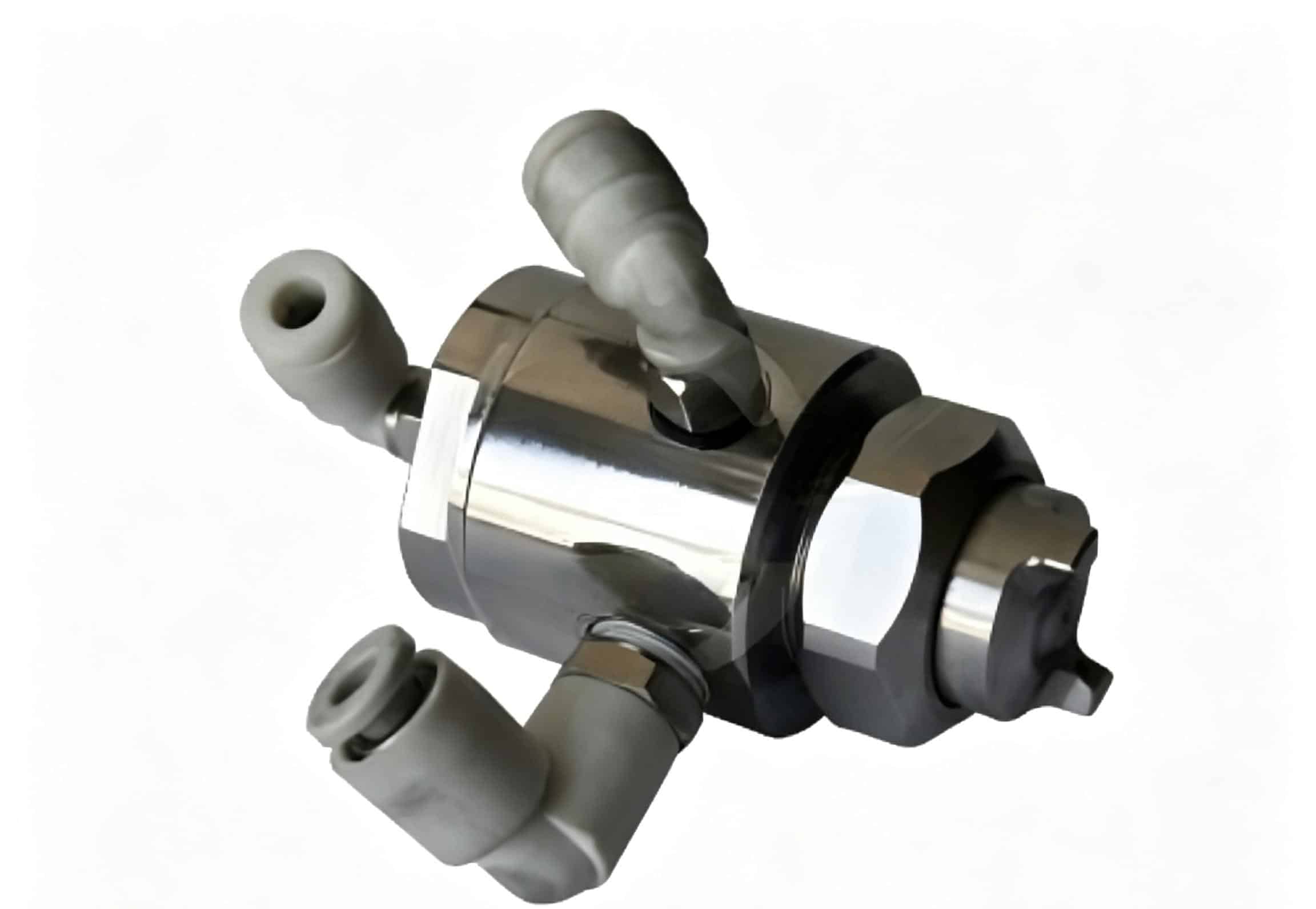

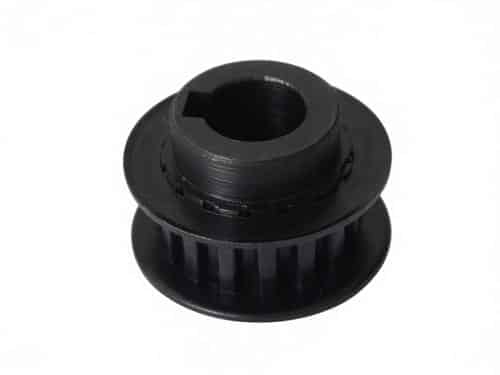

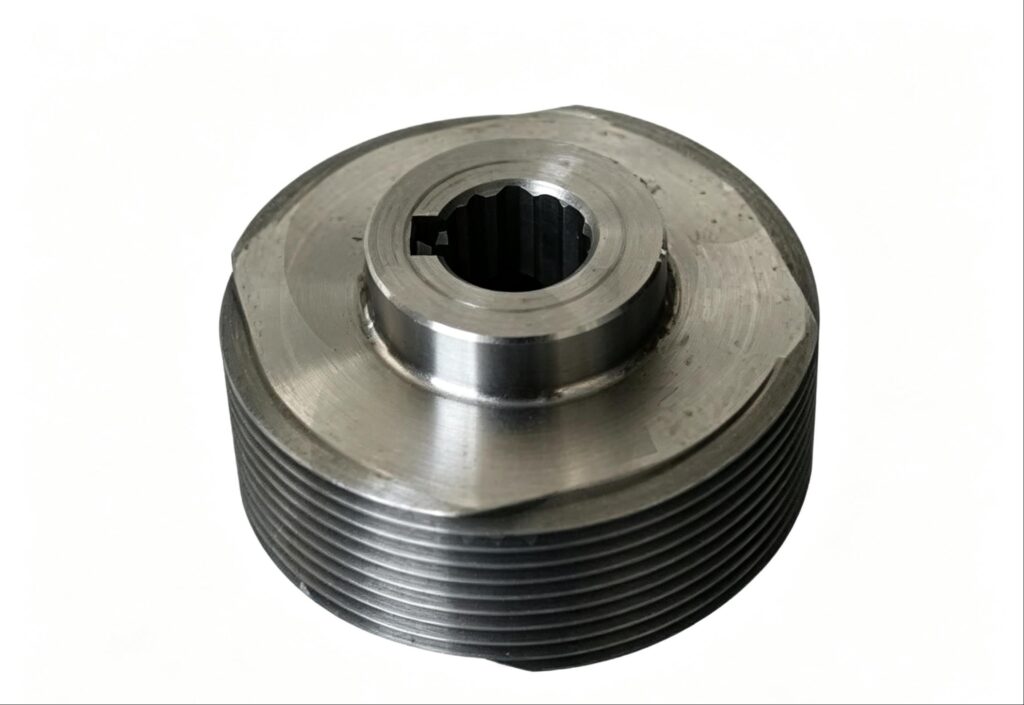

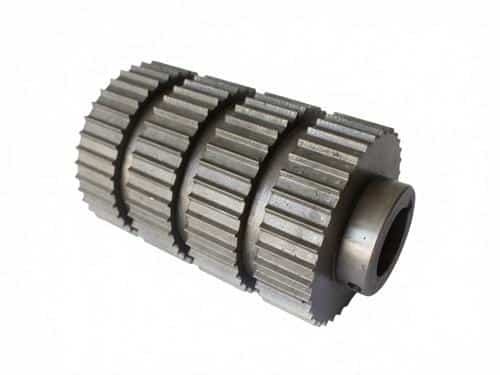

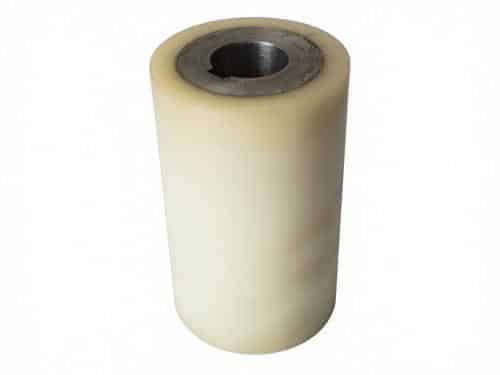

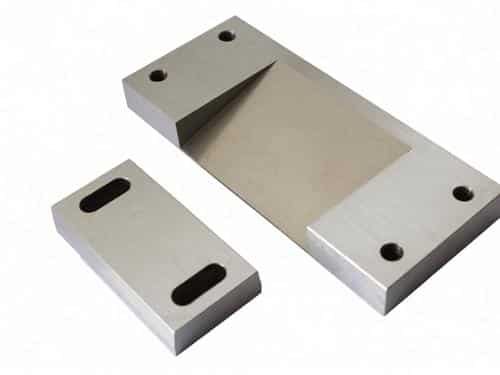

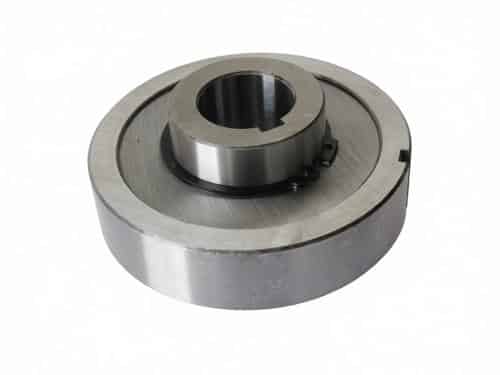

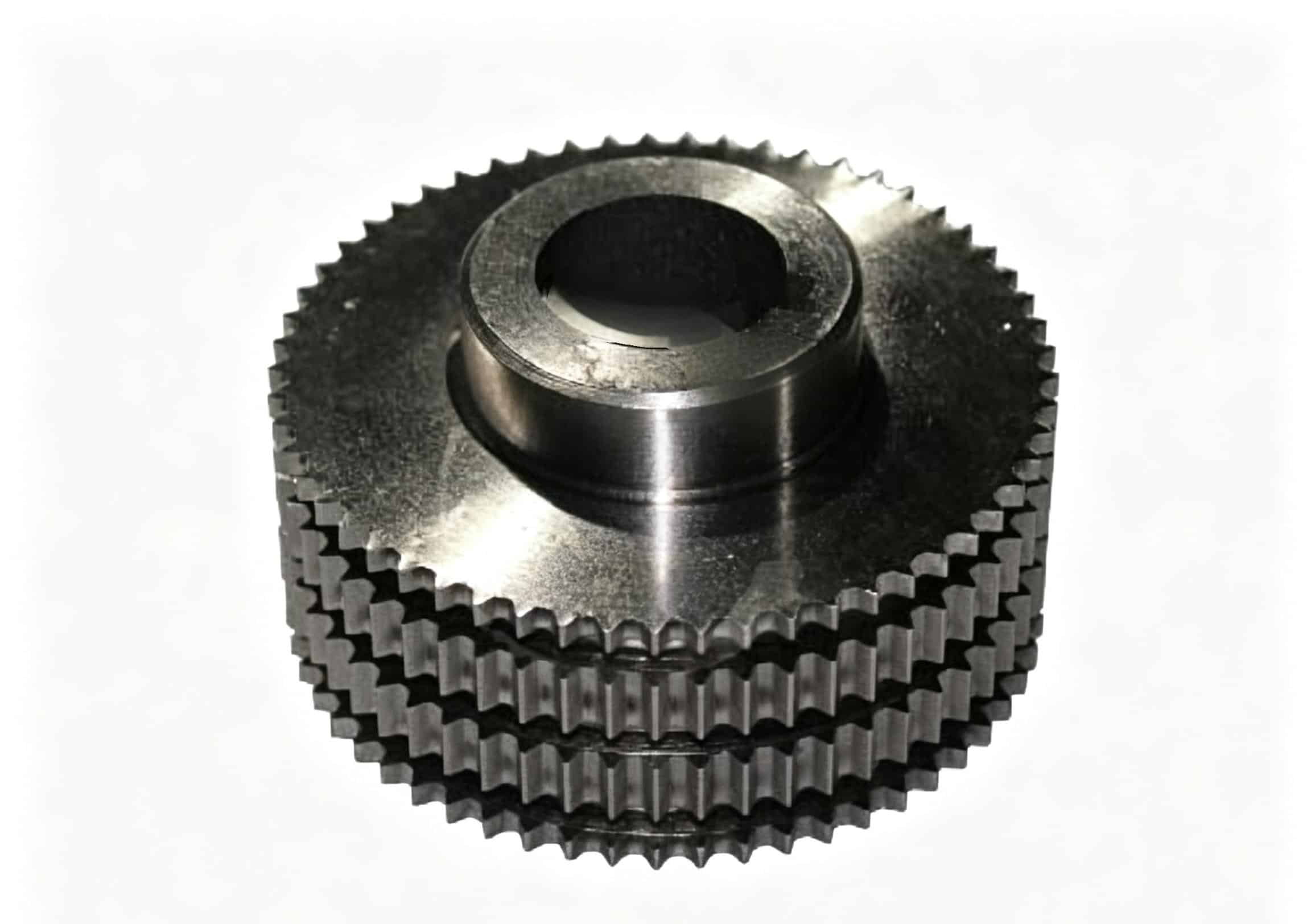

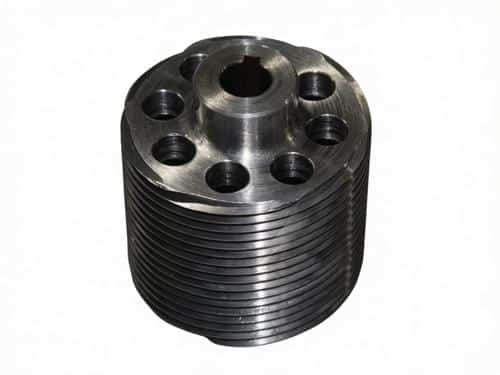

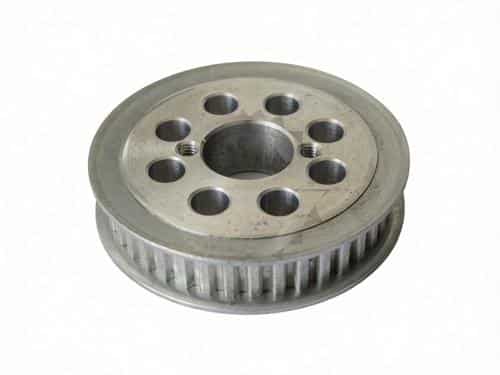

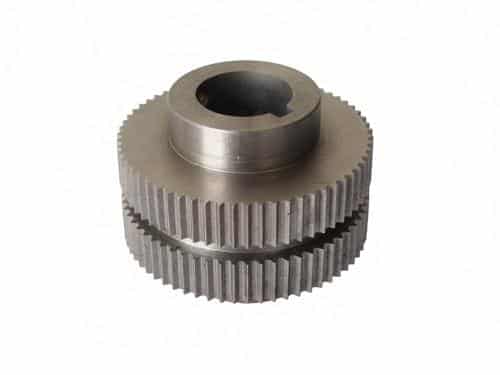

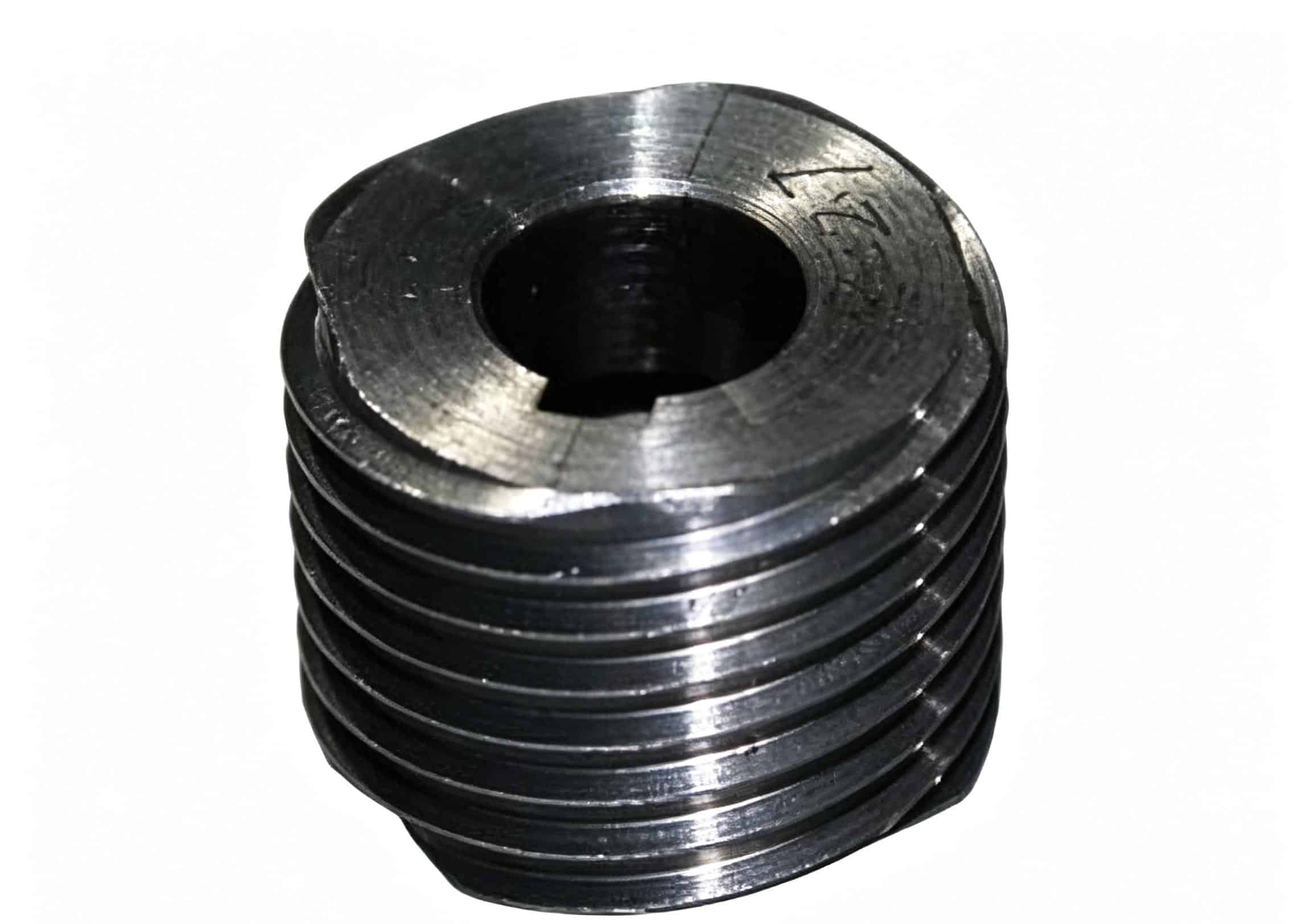

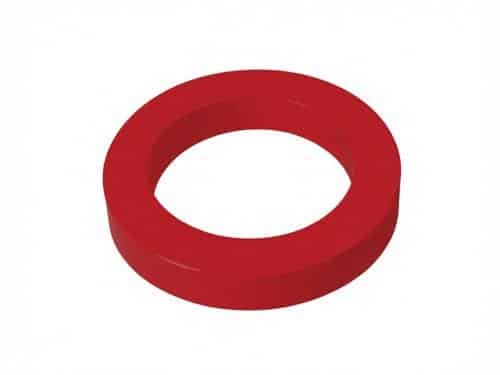

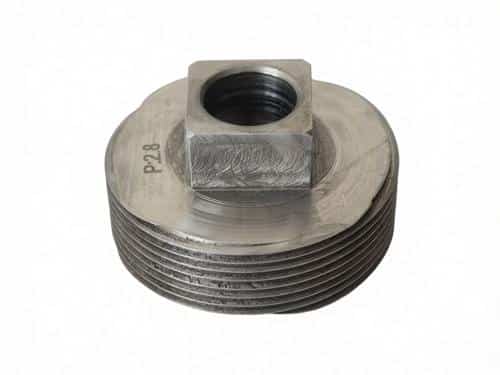

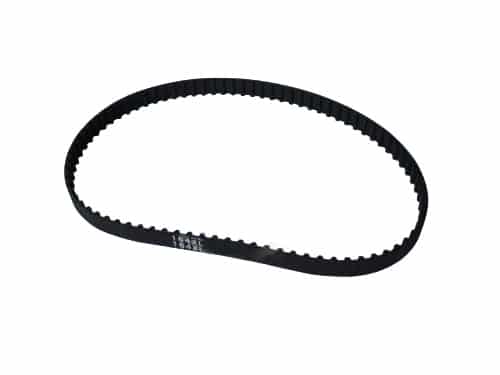

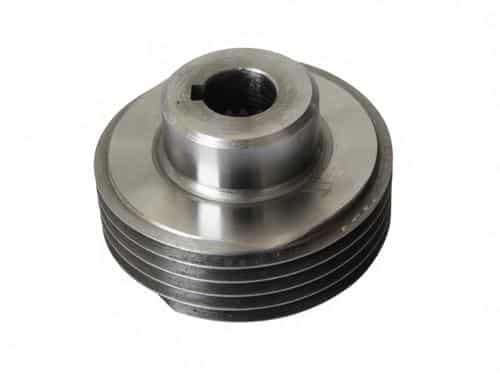

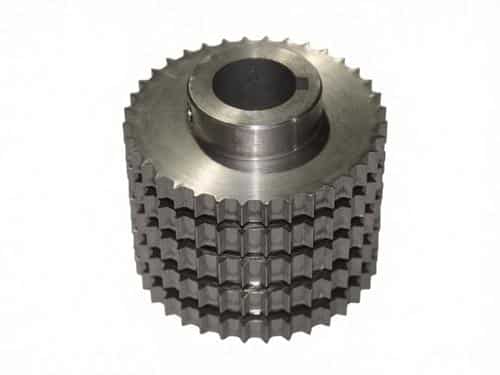

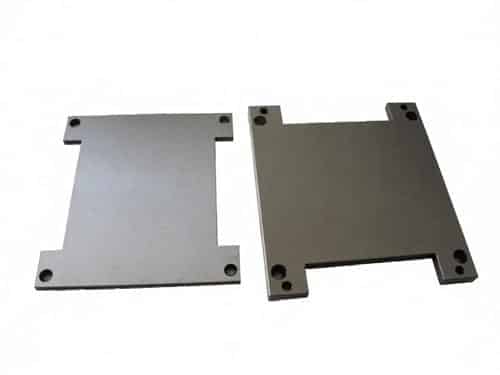

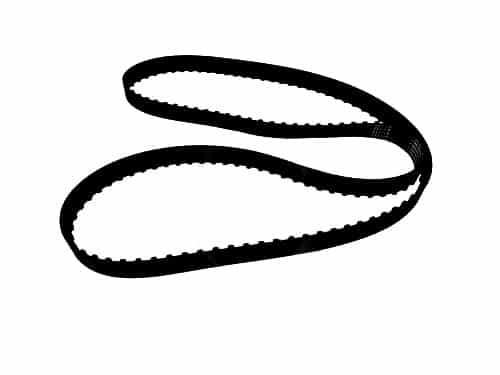

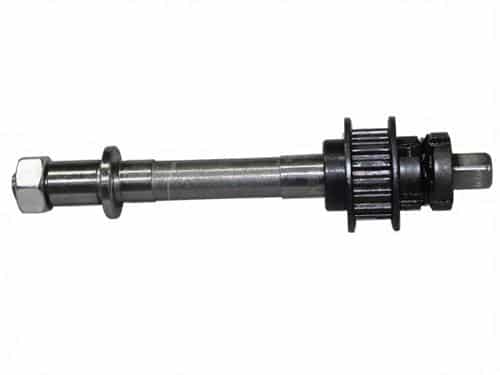

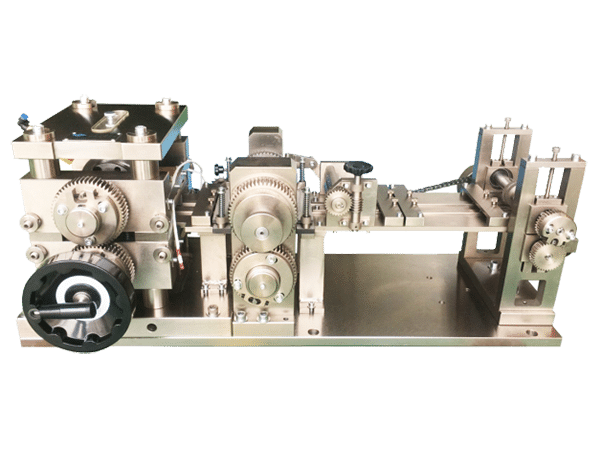

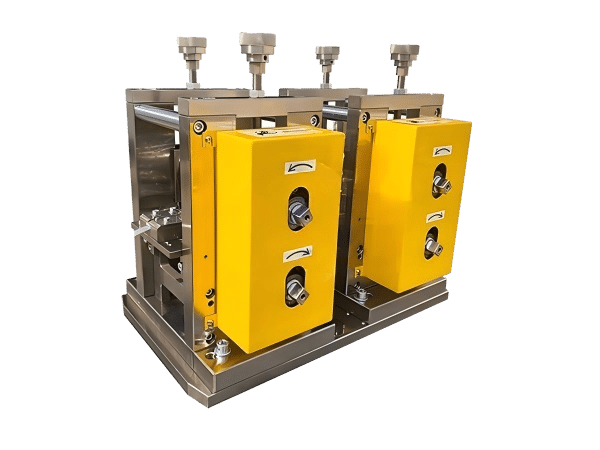

Spare Parts
Features of Fin Forming Machine
Multifunctional
The fin-forming roller is changeable, and different fin models can be produced on the same machine. The minimum fin thickness for the wavy fin is 0.07mm, which saves the customer money.
Convenient
PLC control, inverter speed adjustable, servo feeding, touch screen operation, simple and convenient, high-speed production, and high production efficiency of finished products.
Affordable
All models with different specifications are offered affordably. Stable performance, high positioning accuracy, and accurate cutting accuracy. Reduce customer production costs.
Speed
Super fast forming speed: We overcame the difficulty and made the diamond fin in a fin-rolling machine at 60 m per minute. The fin thickness is a maximum of 0.15mm.
Our Fin Forming Machine Workshop
DAG offers a full range of fin-forming machines, including aluminum fin-forming machines, copper fin-forming machines, high-speed fin-forming machines, ultra-fast fin-forming machines, automatic fin-collecting machines, etc.
Our machines are sold to various countries and regions worldwide, and we will send a professional technical team to guide the installation on-site to ensure smooth production in the customer’s factory. We will also provide free consulting services if any problems arise during the production process—saving customers time and money!
To learn more about the Dafin-forming ring machines, contact us or request a quote today.
fully automatic Fin forming machine working video
People Also Ask
A: what is a making machine?
Q: A radiator fin machine, also called a fin stamping machine, plays a vital role in the manufacturing process of radiators for automobile and truck engines because it can produce fins for radiators, as well as fins for condensers, intercoolers, and evaporators.
A: How many types of fins can the fin-making machine produce?

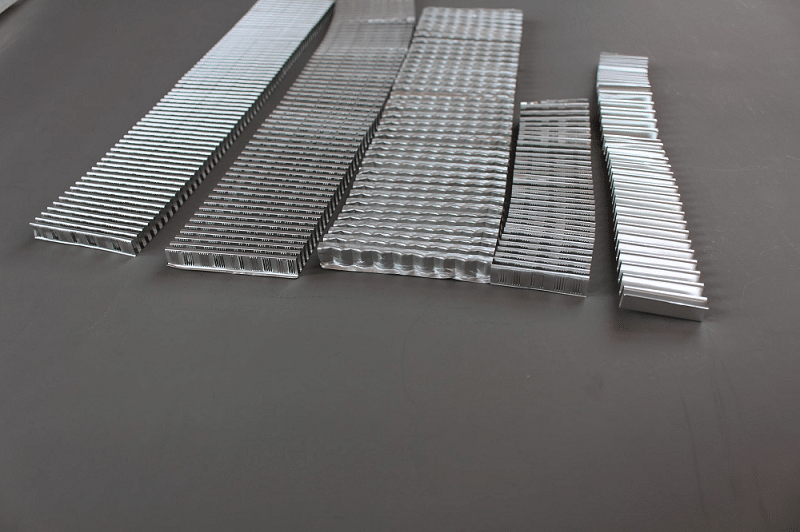

Q: The fin-making machine produces the following fins: straight and flat fins, serrated fins, perforated fins, wavy fins, louvered fins, and others.
Q: Can the same radiator fin-forming machine produce different fin models?
A: The fin-forming roller is changeable, and different fin models can be produced on the same machine.
Q: What is the size of the fins produced by the radiator fin-forming machine?
A: Fin thickness: 0.07-0.08mm; fin width: 8-200mm; we can customize the machine according to size.
Q: What metal materials can the heat sink forming machine process?
A: Aluminum foil material: 3003-H16, Copper material: H62.
