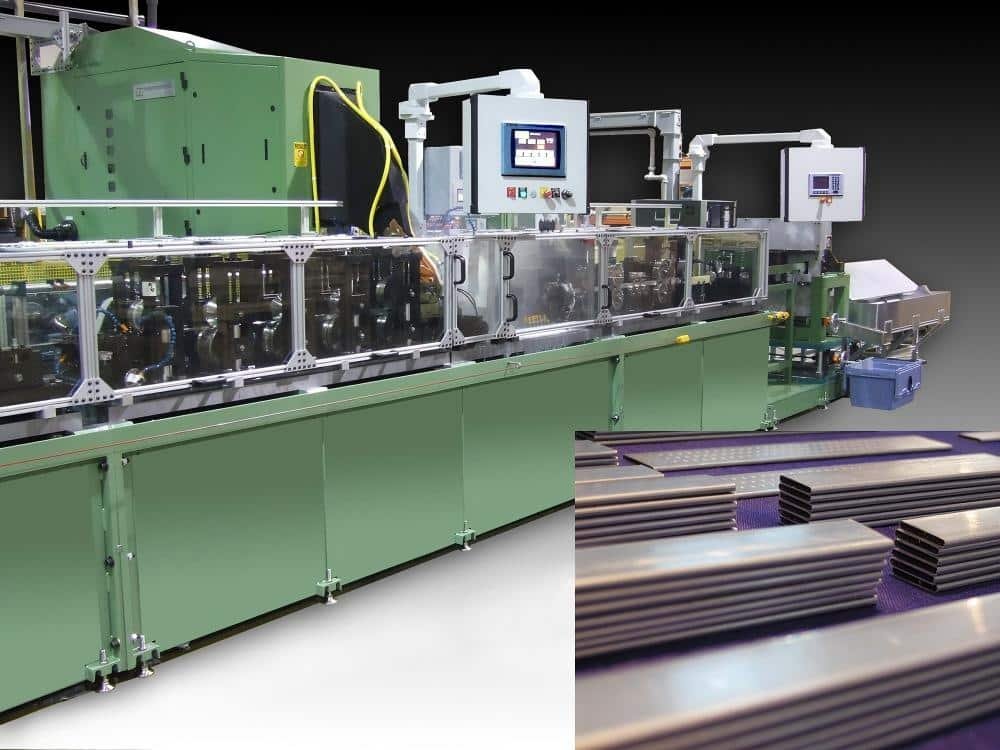

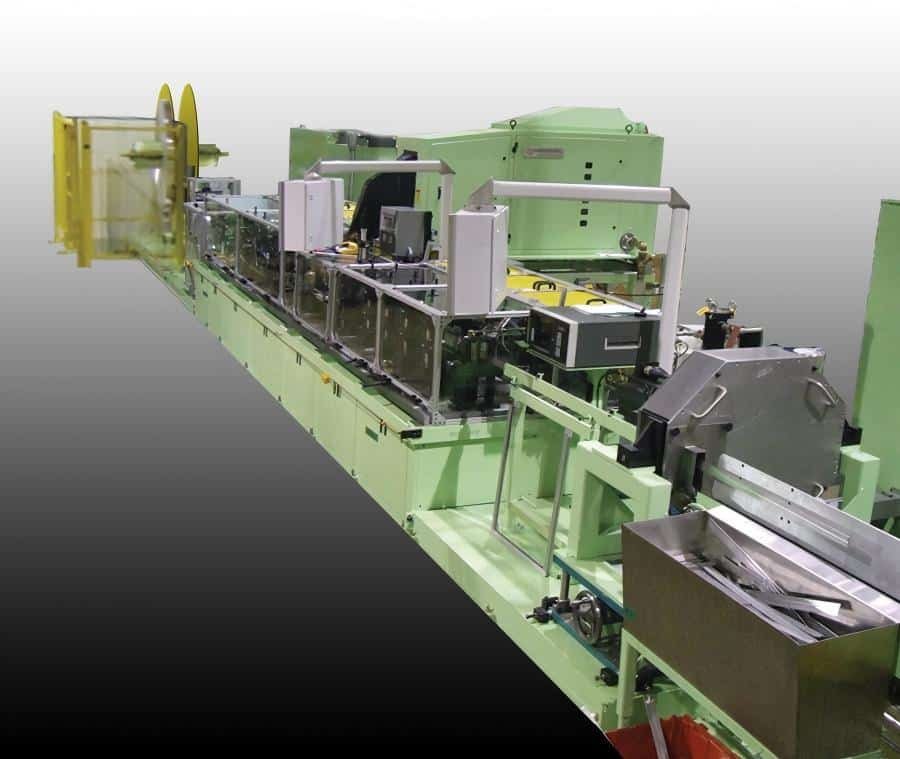

Aluminum Radiator Tube Mill Manufacturer
This aluminum radiator tube mill is specially designed for producing flat aluminum tube (optional header pipes) used in automobile radiators, condenser/evaporators, round & rectangular aluminum pipes and other special shape aluminum pipes.The mill can weld flat oval tubes into near-net-shape profiles, thereby reducing strip width, improving dimensional control accuracy, and reducing gauge thickness.
This aluminum radiator tube mill can 100% replace those aluminum tube mills from Schoeler Germany, Millmaster USA or Mori Japan.

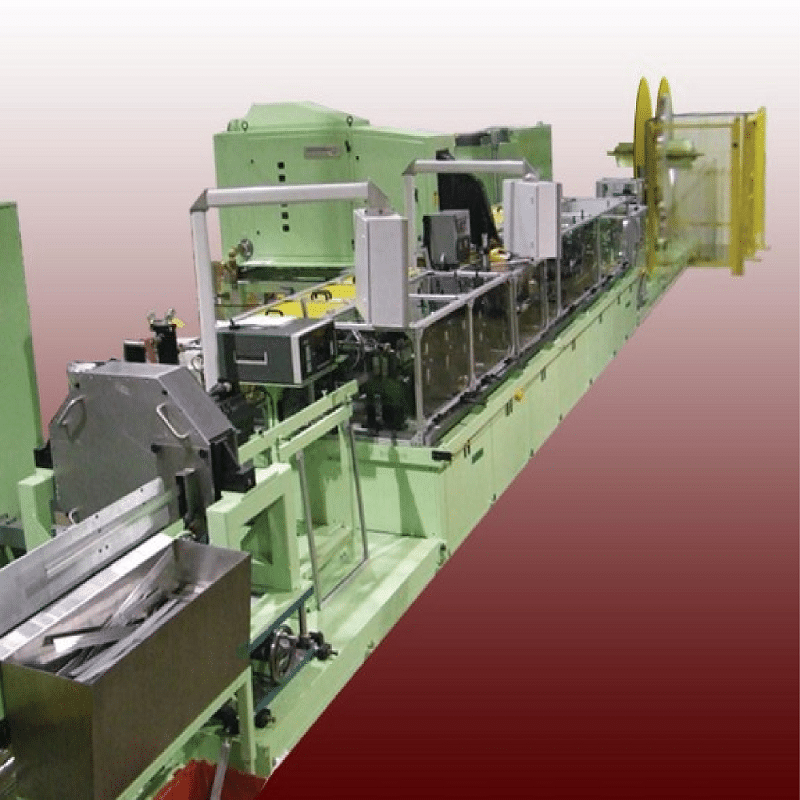

Equipment Introduction - Aluminum Radiator Tube Mill
What is an aluminum radiator tube mill?
The aluminum radiator tube mill utilizes high frequency induction welding process. This high frequency aluminum radiator tube mill is capable of producing aluminum radiator flat tubes, condenser/evaporator header pipes, intercooler flat tubes, etc.
We estimate the line speed of this mill to be between 100-150 MPM and 140 MPM for radiator tubes, and a maximum of 310 MPM is estimated for charge air tubes. Speeds depend on tube size and material thickness. It is designed for producing Flat Oval tubes ranging from 12mm to 90mm heights in a variety of materials, including; Aluminum, Brass, and copper. Actual capability depends on tube wall thickness and tube cross section.
Technical Specifications (Aluminum)
| No. | Item | Data |
| 1 | Suitable material | Pure aluminum or aluminum alloy 4343/3003/7072 or 4343/3005/7072, with/without cladding |
| 2 | Applicable flat aluminum tube size | Width: 16~32mm; Thickness: 1.8~2.2mm; Wall thickness: 0.26~0.30mm |
| 3 | Suitable aluminum pipe length | 300~6000mm |
| 4 | Applicable aluminum strip coil size | Max. OD: 1900mm; ID: 290~310mm; Max. Weight: 900kg |
| 5 | Production speed | Max. 100m/min |
| 6 | Cutting speed | Max. 400 cuts per minute |
| 7 | Cooling method for welder | Air cooler + water chiller |
| 8 | Cooling method for rollers | Recycling liquid type coolant |
| 9 | Transmitting method | Coupling + reducer distributors |
| 10 | Tube bow | ≤0.5mm @500mm length |
| 11 | Tube twist | ≤0.3mm @300mm length |
| 12 | Cutting end inclination | ≤0.3mm |
| 13 | Cutting burr height | ≤0.08mm |
| 14 | Cut-to-length precision | ≤ ±0.3mm |
| 15 | Life of cutting blades | More than 0.2 billion cuts |
| 16 | Duration for changing rollers | One hour by 4 workers @ cassette changing method |
| 17 | Duration for changing tube width | ≤ 15min |
| 18 | High-frequency power | 400kHz, 100kVA |
| 19 | Total electric power | About 160kVA |
| 20 | Total electric consumption | About 80 kW·h |
| 21 | Air source | 0.5-0.7MPa, 0.8m3/min |
| 22 | Noise level | ≤78dB (@2m away) |
| 23 | Pollution | Welding smoke & dust collecting, no liquid pollution discharged |
| 24 | Total weight | About 16 Tons |
| 25 | Whole line dimension | About 30m x 5m x 3.5m (including run-out rack) |
Equipment Structure - Aluminum Radiator Tube Mill

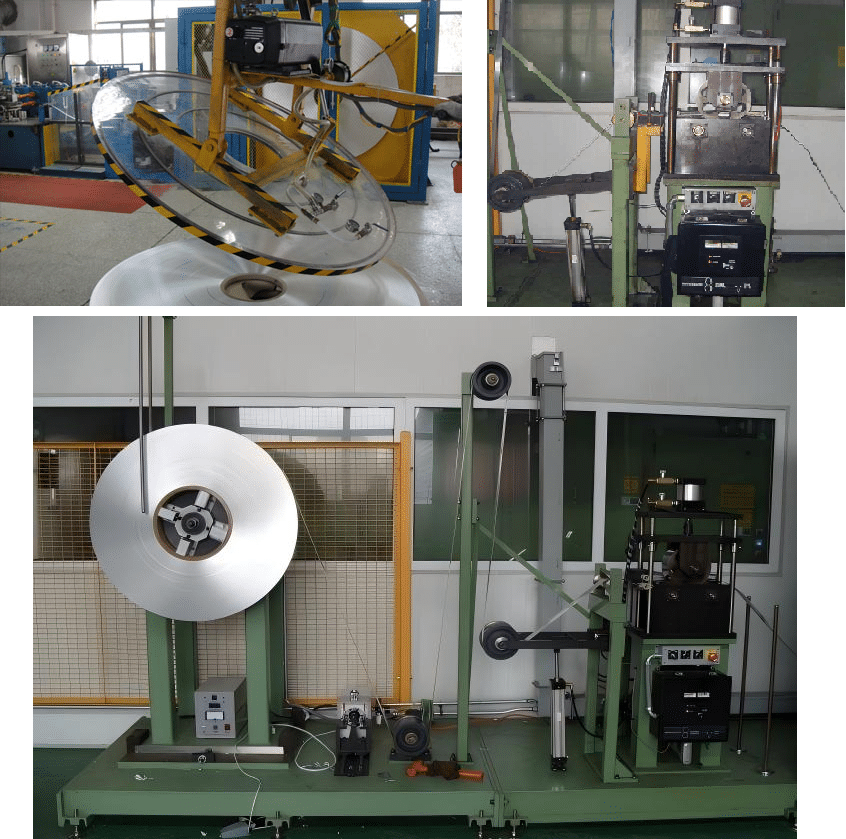

Strip Material Supply
1. Aluminum strip reel loading by vacuum absorber loading device
2. Aluminum strip decoiling by active decoiler
3. Aluminum strip feeding by synchronization feeder with buffer

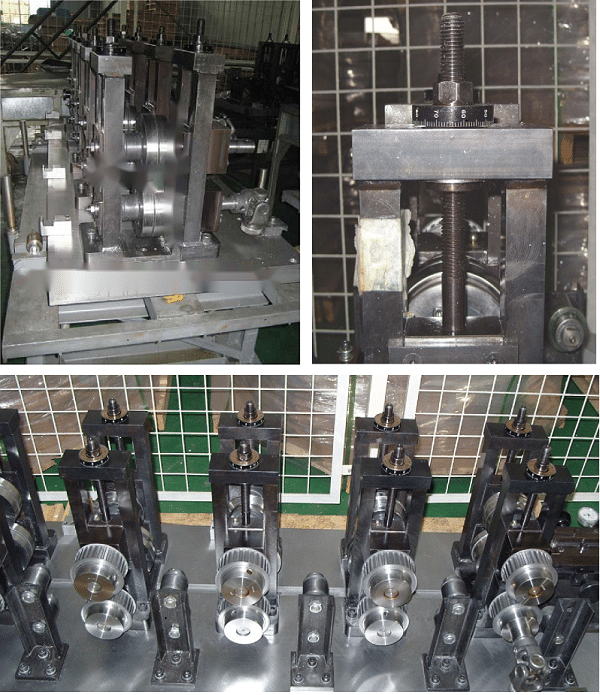

Tube Forming to Shape
Flat strip ismade intoalmost final tube shape byforming rollerand led into welding station.

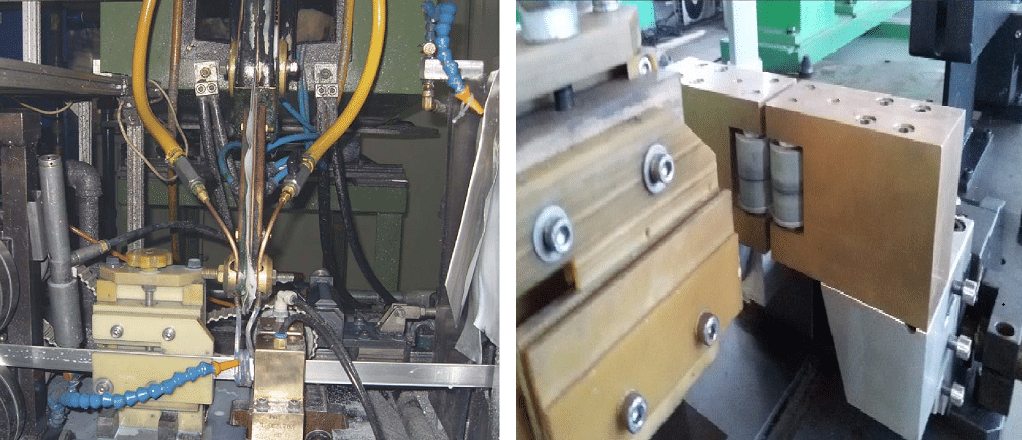

Welding Station
1. High frequency welder with solid state technology
2. Easy-to-operate touchscreen terminal
3. Production speed: up to 150 m/min

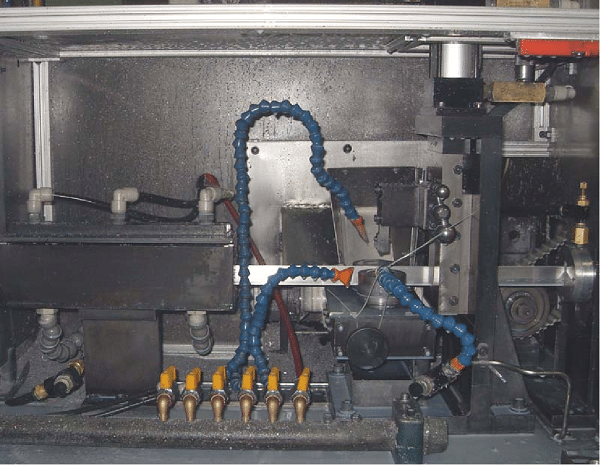

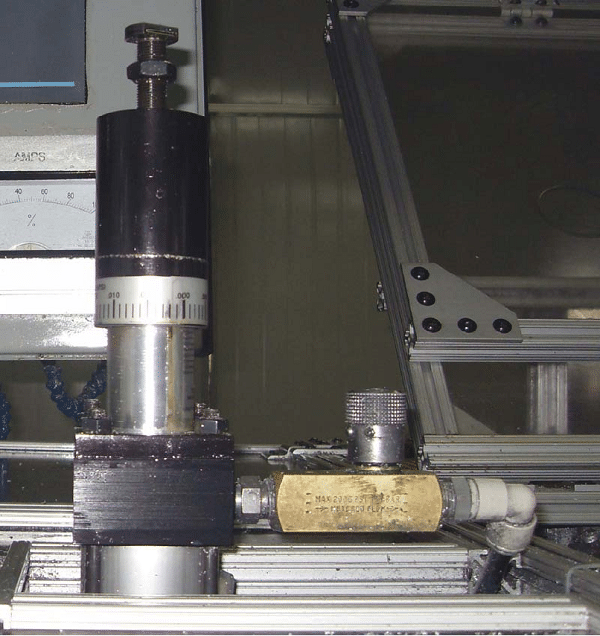

Cooling & Scraping
Cooling: After welding process, the temperature of the tube is high, so it needs to be cooleddown by re-circulating water coolingsystem.
Scraping: A scraper is used for handling the weld seam after the welding process. Scrapers can reduce the height of the weld seam and smooth its surface.

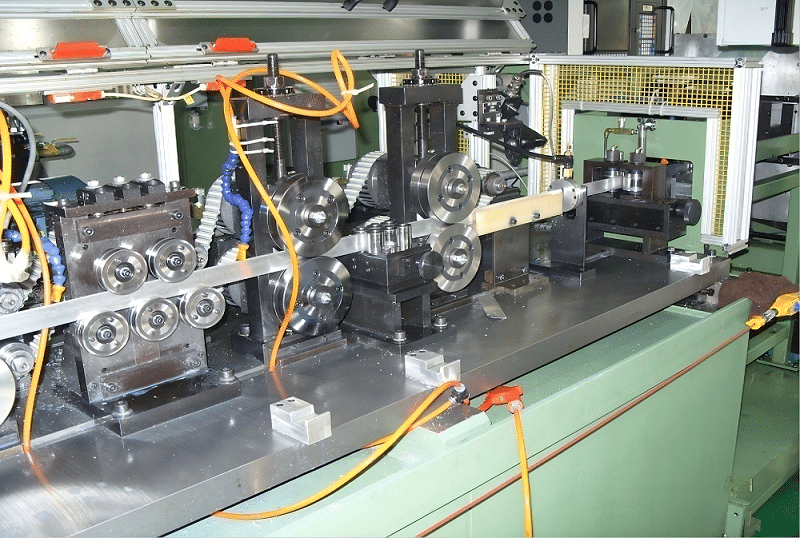

Straighten & Sizing
Tube straightened in horizontal andvertical direction bycalibration rollersafter being scraped.
Adjust tube
dimensions: the height, R angle, crown.

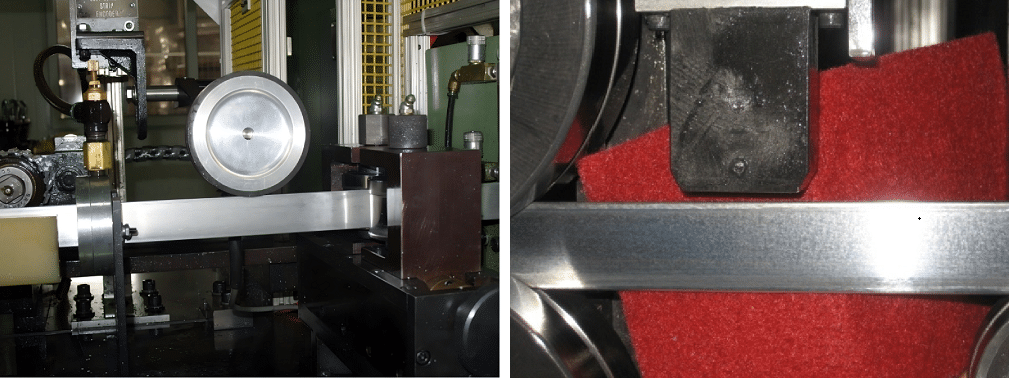

Eddy Current Tester
1. To detect weld quality, adopt two-channel online eddy check equipment.
2. There is a probe to monitor tube welding in the eddy-check region.
When there is a defective product, the probe will send a signal to sort it into the defective products channel.
3. Eddy current testing is performed throughout the whole production process.

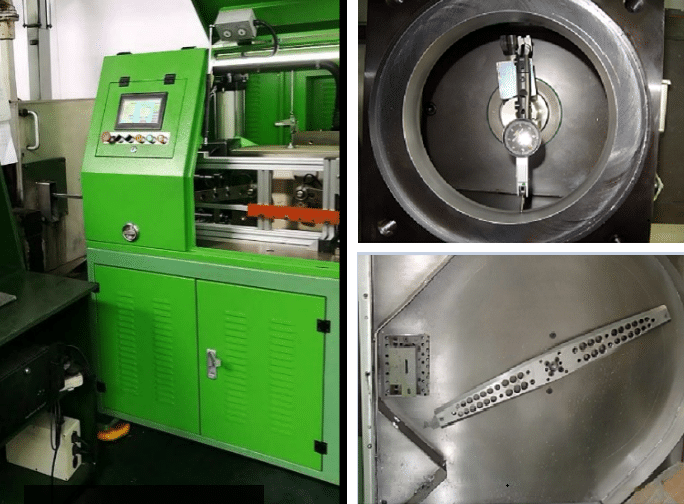

Cutting Off
1. Driven by a servomotor
According to the production requirements, cut the tube to the required length. Meanwhile, input two tasks at the same timelength transform withoutstopping the mill.
2. The tolerance in length is+0.05 mm at a cut frequency of max. Of 10cuts/second
3. Online changeable cut length
Main Configuration - Aluminum Radiator Tube Mill
– PLC & HMI: Siemens from Germany
– Servo motor & driver: Yaskawa from Japan
– Contactor& circuit breaker: Schneider (Chinese joint venture)
– Pneumatic components: Airtac from Taiwan
Main Features - Aluminum Radiator Tube Mill
– Special roller design and adjustment technology for various aluminum pipe forming; quick roller cassette changing
– Max. production speed 150m/min
– High-quality solid-state high-frequency welder, less electric consumption, smaller internal burr
– Online cut-to-length, no need for secondary processing, saving energy
– Special cutting device, super high-speed cutting, catching the whole line speed
● 300~375 cuts/min @400mm length
● 160~200 cuts/min @750mm length
● 120~150 cuts/min @1000mm length
● 40~50 cuts/min @3000mm length
● 20~25 cuts/min @6000mm length
Aluminum Tube Products
Material: 3003, 4343/3003/7072 H14. Custom sizes available according to customer drawings and samples.

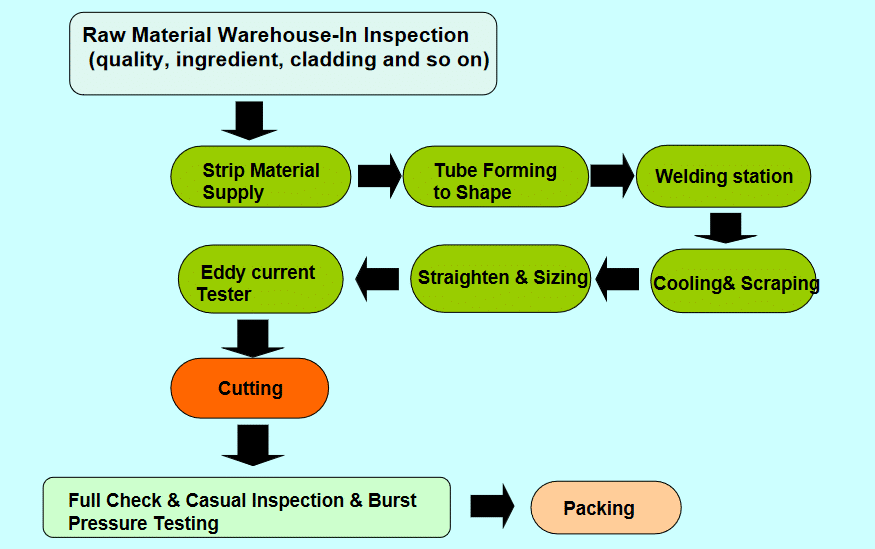

Process Flow
Radiator Tube
| Height × R × Wall Thickness (mm) — Material: 3003 or 4343/3003/7072 H14 | |||
| 12×1.5×0.26/0.28 | 16×1.8×0.28/0.30/0.32 | 22×1.8×0.30/0.32 | 26×1.5×0.30/0.32 |
| 12×1.71×0.26/0.28 | 16×2.0×0.28/0.30/0.32/0.35 | 22×2.0×0.30/0.32/0.35/0.40 | 26×1.6×0.30/0.32 |
| 12×2.0×0.26/0.28 | 16×2.5×0.28/0.30 | 22.5×1.5×0.30/0.32 | 26×2.0×0.30/0.32/0.35/0.40 |
| 12.35×2.1×0.28/0.30 | 16.5×1.75×0.28/0.30 | 23.5×1.95×0.30/0.32/0.40 | 27×1.5×0.30 |
| 13×1.5×0.26/0.28/0.30 | 18×1.5×0.30/0.32 | 23.5×2.0×0.30/0.32/0.40 | 27×1.2×0.30 |
| 13×1.75×0.26/0.28/0.30 | 18×1.6×0.30/0.32 | 24×1.4×0.30/0.32/0.40 | 32×1.75×0.28/0.30/0.40 |
| 13×2×0.26/0.30/0.32 | 18×2.0×0.30/0.32/0.40 | 24×2.0×0.30/0.32/0.40 | 32×1.8×0.28/0.30/0.40 |
| 14.55×1.5×0.26/0.28/0.30 | 18.5×2.3×0.30/0.32/0.40 | 25×2.0×0.30/0.32/0.40 | 32×1.85×0.28/0.30/0.40 |
| 14.55×2.0×0.26/0.28/0.30 | 20×1.5×0.30/0.32 | 25.5×2.0×0.28/0.30 | 32×2.0×0.30/0.32/0.35/0.4 |
| 16×1.4×0.26/0.30/0.32 | 20×2.0×0.30/0.32 | 25.5×1.75×0.28/0.30 | 40×2.0×0.35/0.40 |
| 16×1.5×0.26/0.28/0.30/0.32 | 22×1.5×0.30/0.32 | 26×1.2×0.28/0.30 | 42×2.0×0.35/0.40... |
| 16×1.71×0.28/0.30/0.32 | 22×1.6×0.30/0.32 | 26×1.4×0.26/0.30/0.32 | |
Intercooler Tube/Oilcooler Tube
| Height H × R D × Wall Thickness T (mm) | |
| 19×4.0×0.45/0.50 | 65.15×4.6×0.4 |
| 32×7.8-8.08×0.30/0.40 | 72.6×7.8×0.5 |
| 48.5×4.3×0.40 | More sizes available upon request |
