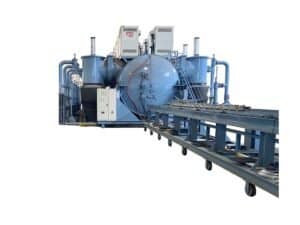

Giant Vacuum Aluminum Brazing Furnace

Product Introduction

Giant Vacuum Aluminum Brazing Furnace

This industrial-grade large-scale vacuum aluminum brazing furnace is engineered for high-precision, high-volume brazing of critical aluminum components across the automotive, transportation, and advanced manufacturing sectors. Leveraging state-of-the-art vacuum brazing technology, it delivers superior joint integrity, optimal thermal conductivity, and consistent production quality for complex aluminum assemblies.

Key Manufacturing Benefits

1. Ensures flux-free, high-strength aluminum joints with minimal distortion

2. Ideal for mass production of leak-proof heat exchangers

3. Meets stringent automotive and aerospace quality standards (ISO/TS specifications)

4. Optimized for energy efficiency and process repeatability in continuous operations

Core Applications

 Automotive Environmental & Thermal Management Systems

1. Vacuum brazing of automotive air conditioning (AC) systems

2. Engine oil coolers, radiators, and heater cores

3. AC evaporators and condensers

4. Plate-fin and tube-fin heat exchangers

5. Charge air coolers (CACs) and intercoolers

New Energy Vehicle (NEV) & High-Speed Rail Components

1. Aluminum liquid cold plates for battery thermal management

2. Power electronics cooling solutions (IGBT modules, inverters)

3. Air-cooled enclosures for electrical control units

4. Aluminum heat sinks for traction systems

Advanced Communication & Industrial Equipment

1. Radar network antennas and waveguide components

2. Air separation unit (ASU) heat exchangers

3. Aerospace and defense cooling systems

4. Telecommunication infrastructure cooling modules

Technical Specifications & Customization Options

Giant Vacuum Aluminum Brazing Furnace

Advanced Heating Chamber & Thermal Insulation System

The heating chamber utilizes a high-performance composite insulation structure, integrating nickel-chromium (Ni-Cr) alloy heating elements with multi-layer 1Cr18Ni9Ti reflective shields (AISI 321 stainless steel equivalent). This engineered design ensures exceptional temperature uniformity, minimal heat loss, and optimal energy efficiency throughout the brazing cycle.

Three-Stage High Vacuum System

Equipped with a robust three-stage high vacuum pumping system comprising:

1. Diffusion pump (primary high vacuum)

2. Roots booster pump (intermediate stage)

3. Mechanical backing pump (roughing stage)

This configuration achieves ultra-high vacuum levels critical for flux-free aluminum brazing, ensuring superior joint quality and preventing oxidation.

Standard & Optional Configurations

– All models operate as negative pressure furnaces (standard design)

– External forced air circulation cooling system available as optional add-on per customer specifications

Customizable Work Zone Dimensions

Effective working area and chamber dimensions are fully customizable to accommodate specific production requirements and component geometries.

Equipment Pricing

Unit price range: ¥350,000 – ¥9,000,000 RMB (approximately $50,000 – $1,280,000 USD depending on configuration and customization)
