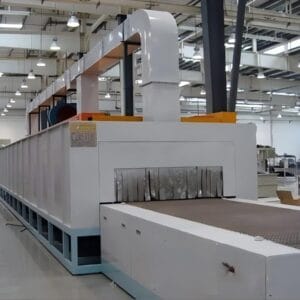

10 meters Brazing Section Nitrogen Atmosphere Continuous Brazing Furnace for Aluminum Car Radiator
Product technology: Degreasing furnace, spray room, drying furnace, brazing furnace, cooling system
| Width Of Brazing Furnace | 1000mm | Working Station Size | 1000mm×250mm |
| Speed | 150～600mm/min | Height Of Brazing Furnace | 250mm |
| Length Of Brazing Furnace | 6000mm | ||
| High Light | Nitrogen Atmosphere Continuous Brazing Furnace, 10 Meters Section Continuous Brazing Furnace | ||
Technical Parameters
maximum service temperature
700℃
effective working size
1000mm(Mesh belt width)×250mm(Height of mesh belt)
The channel size
1050mm×300mm(Straight edge height)
Temperature control zone
6 points in Section 6 of Section 3 (temperature measurement)
Temperature measuring point layout
The upper and lower of each section + furnace temperature measurement
design power
240KW±10%
Temperature control mode
PID, The work pressure regulating
heating mode
resistance wire
length of the heating zone
6M
conveying chain
SUS316L, Wire Φ 3 mm, wear silk Φ 3.5 mm
Mesh belt operating surface height
900mm
Normal operating temperature
600～650℃
Furnace temperature uniformity
±3℃
Note: The power listed in the technical specification is the maximum load capacity of the equipment, not the service value. The workpiece load determines the actual load, and the fixture is transmitted to the conveyor belt.
The number of brazing zones is designed to sufficiently ensure the workpiece is heated to the required temperature in the protective nitrogen. The temperature uniformity of the product in the final brazing zone (575℃ -650℃) is ±3℃.
Brazing muffle for air chamber is welded structure, the length of the whole sheet adopts bending without splicing.
