Automotive Radiator Stamping Die
Our radiator stamping dies are engineered for processing aluminum alloys, galvanized steel, and stainless steel materials ranging from 0.5mm to 3.5mm thickness, delivering ±0.01mm die accuracy and ±0.01mm die flatness to ensure leak-free sealing surfaces in automotive cooling systems and optimal heat dissipation performance. Ideal for Tier 1/Tier 2 automotive suppliers and radiator manufacturers requiring 300,000+ stamping cycles die life.
Our Radiator Stamping Die is a precision-engineered metal forming tool designed for high-volume production of automotive radiator components. Manufactured to IATF 16949 and ISO 9001:2015 standards, this stamping die produces complex radiator parts including header plates (head plates), cooling fins, side plates, and frame assemblies with exceptional dimensional accuracy and repeatability.
Technical Specifications -Radiator Stamping Die
| Parameter | Specification | Industry Standard |
| Mold Type | Progressive Die / Compound Die / Stage Tooling | Custom Engineered |
| Application | Radiator Header Plate, Fin Stamping, Side Plate, Frame Assembly | Automotive Cooling Systems |
| Material Processed | Aluminum (1050/3003/6061), Galvanized Steel, Stainless Steel, Copper | ASTM B209 / JIS H4000 |
| Material Thickness | 0.5mm – 3.5mm (Customizable up to 6mm) | Per Customer Specification |
| Die Steel Material | Cr12MoV / D2 / DC53 / SKD11 / HSS / Carbide | AISI D2 (58-62 HRC) |
| Die Shoe Material | SAE 1018 / SAE 1020 / EN C45 | Standard Tool Steel |
| Hardness | HRC 58-62 (Cutting/Forming Components) | Vacuum Heat Treated |
| Die Part Accuracy | ±0.01mm | Precision Grinding |
| Formwork Flatness | ±0.01mm | Surface Grinding |
| Surface Finish | Ra < 0.4μm (Mirror Polish for Sealing Surfaces) | EDM + Hand Polishing |
| Stamping Speed | 50-200 strokes/minute (Progressive Die) | High-Speed Production |
| Tool Life | 300,000 – 1,000,000+ stamping cycles | Material Dependent |
| Press Compatibility | 100-ton to 800-ton Mechanical/Hydraulic Press | Custom Die Height |
| Design Software | AutoCAD, SolidWorks, UG/NX, CATIA, AutoForm | 3D CAD/CAM/CAE |
| Simulation | Finite Element Analysis (FEA) for Forming Analysis | Blank Development |
| Lead Time | 45-60 working days (T0-T3 Trials Included) | Expedited 35-day Available |
| Certifications | ISO 9001, IATF 16949, ISO 14001, CE | Quality Management |
Radiator Stamping Die Types & Applications

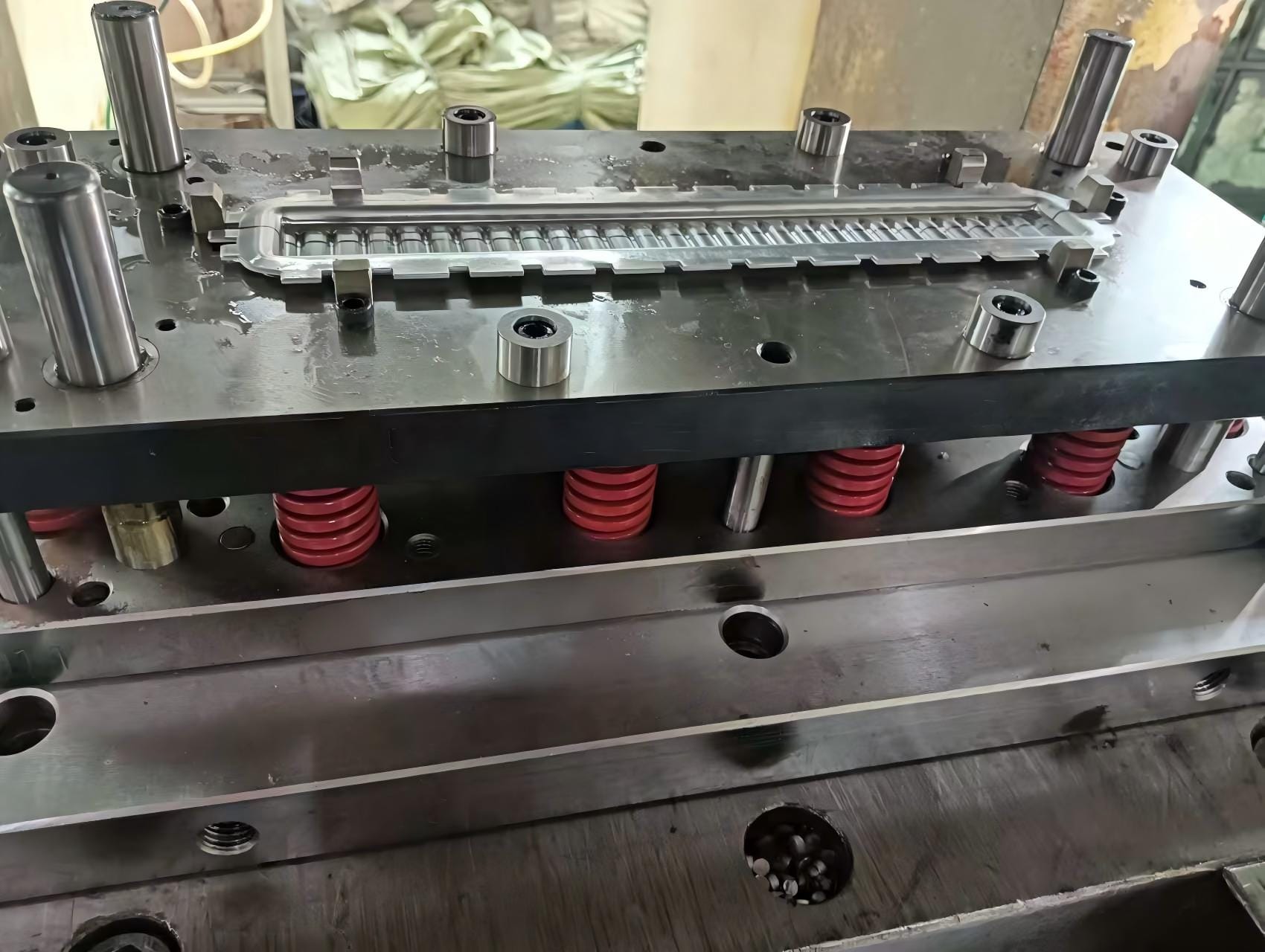

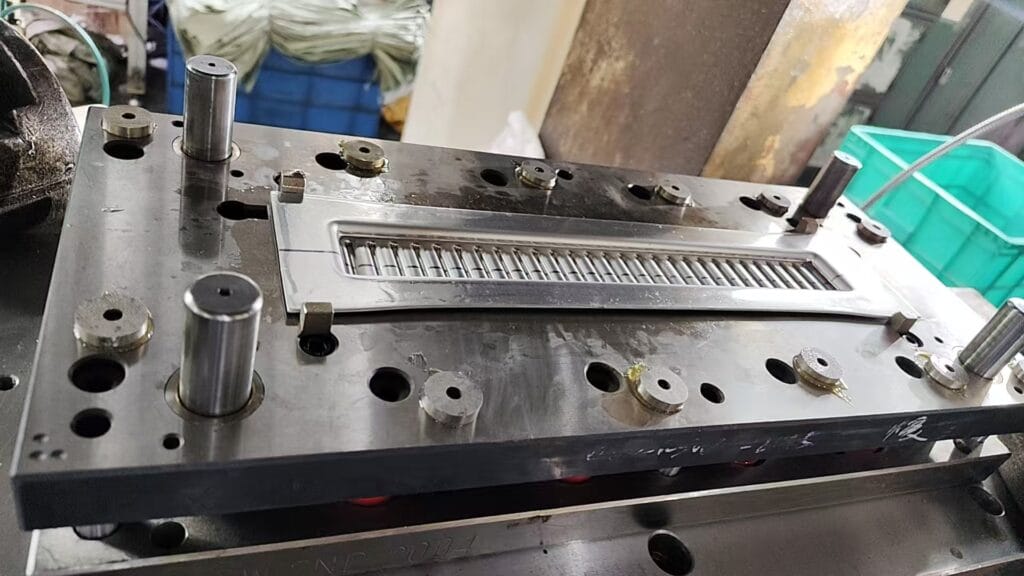

Header Plate Stamping Die (Head Plate Die)
Radiator Header Plate Stamping Die is a specialized manufacturing tool engineered for high-volume production of critical sealing components in automotive cooling systems. This precision die enables mass production of radiator top tanks (also known as top covers, header plates, water tank end caps, or upper/lower tanks)—the primary connection components between the radiator core and plastic tanks.
We offer aluminum radiator header plate stamping dies achieving ±0.01mm precision with 300,000 to 1,000,000 cycle lifespan. Specifically designed for processing 4343/3003/7072 aluminum alloys (1.4-1.5mm thickness), ensuring leak-free performance under pressures exceeding 2.5 bar.
1. Function: Forms top/bottom header plates with tube holes, inlet/outlet ports, and mounting brackets
2. Features:
– Precision piercing for tube hole patterns (±0.05mm hole position accuracy)
– Drawing operations for coolant port formation
– Coining for sealing surface flatness
3. Material: Aluminum 4343/3003/7072 or Clad Aluminum
4. Production Rate: 60-120 parts/minute (Progressive Die)

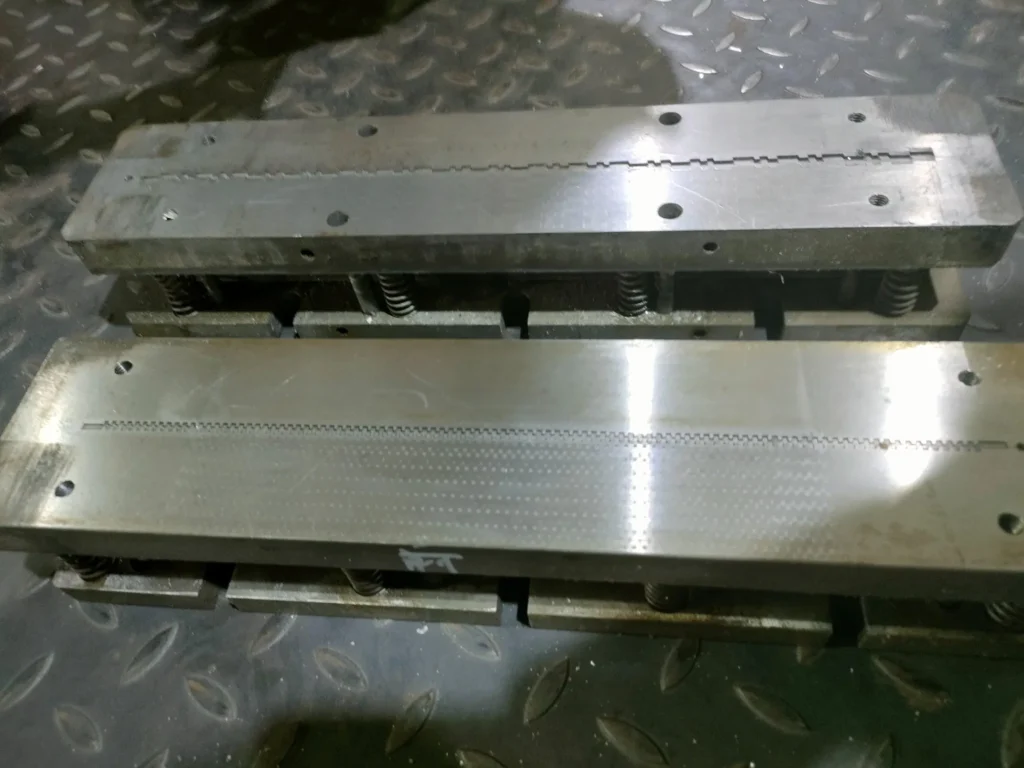

Radiator Fin Stamping Die (Fin Mold)
Radiator Fin Stamping Dies for automotive and engineering applications are specialized precision tools engineered for high-speed stamping of radiator cooling fins. These dies process aluminum strip, copper strip, and stainless steel materials.
When paired with high-speed stamping presses, they achieve rapid stamping rates of up to 300 strokes per minute (SPM), efficiently producing dimensionally accurate, structurally complex fins with intricate louver patterns. The cutting edges utilize ASP30 high-speed powder steel and other premium-grade materials, delivering exceptional wear resistance for long-term stable operation.
Advanced technologies including 3D structural optimization and CAE simulation are employed throughout design and manufacturing, enhancing fin forming precision and maximizing heat exchanger thermal efficiency. These dies play a critical role in meeting cooling demands for automotive engines and construction machinery, ensuring reliable equipment operation.
1. Function: Stamps corrugated cooling fins with louvered air flow enhancement
2. Features:
– High-speed progressive die design (up to 300 strokes/minute)
– Complex louver forming for turbulent air flow
– Burr-free cutting for optimal thermal contact
3. Material: Aluminum 1050-O, Copper (for high-performance radiators)
4. Fin Pitch: 3.5mm – 10mm (Customizable)

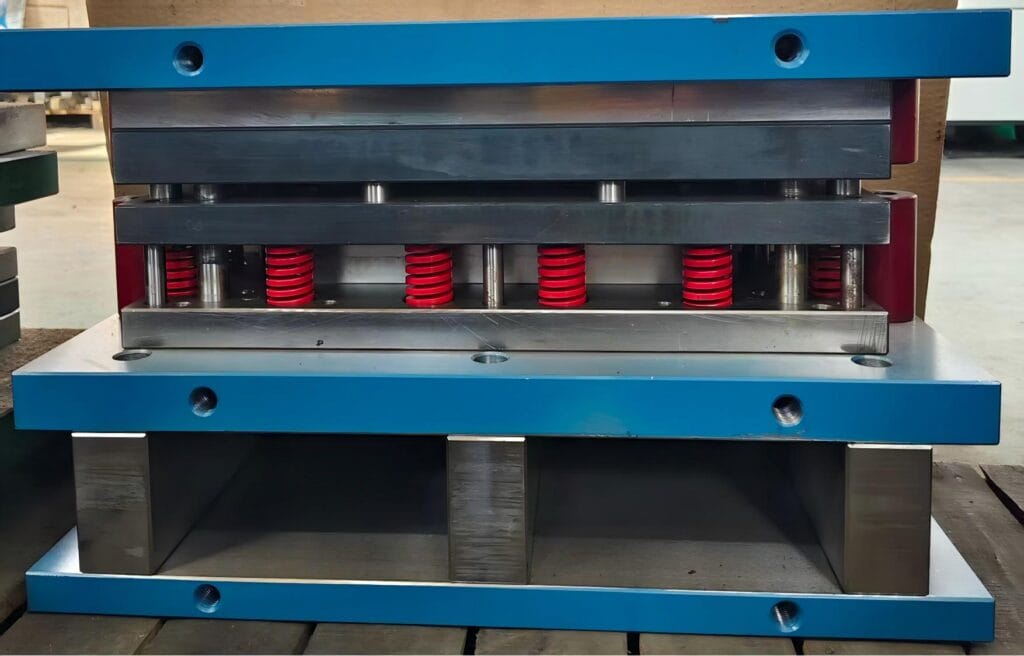

Side Plate & Frame Stamping Die
1. Function: Forms structural side plates, top/bottom frames, and mounting brackets
2. Features:
– Bending and forming operations for 3D geometry
– Piercing for assembly holes and notches
– Robotic welding integration ready
3. Material: Galvanized Steel (SGCC), Aluminum 6061-T6
4. Tolerance: ±0.10mm on critical mounting dimensions
Compound Die for Small Radiator Components
1. Function: Single-station cutting and forming for small brackets, clips, and fasteners
2. Features:
– Cost-effective for medium volumes (10,000-250,000 parts/year)
– Piercing + blanking + forming in one operation
– Quick-change die components for setup reduction
Material Selection Guide for Radiator Stamping Dies
| Production Requirement | Recommended Die Steel | Hardness | Applications |
| Standard Volume (<300K strokes) | Cr12MoV / D2 | HRC 58-60 | Aluminum header plates, low-carbon steel |
| High Volume (300K-500K strokes) | DC53 / SKD11 | HRC 60-62 | High-strength steel, galvanized materials |
| Ultra-High Volume (>500K strokes) | Carbide Inserts / ASP-23 | HRC 62-66 | Stainless steel, abrasive materials |
| High-Speed Stamping (>150 SPM) | M2 High-Speed Steel | HRC 62-64 | Fin stamping, mass production |
| Corrosion Resistance | S136 Stainless Steel | HRC 48-52 | Copper, brass processing |
Advanced Engineering & Manufacturing Process
Phase 1: Design & Simulation (Days 1-10)
– DFM Analysis: Design for Manufacturability review to optimize part geometry for stamping
– Die Layout Design: Strip layout optimization for material utilization (typically 75-85%)
– 3D Modeling: Complete die assembly including upper/lower shoes, punches, dies, and guidance systems
Phase 2: Precision Machining (Days 11-35)
| Process | Equipment | Tolerance | Application |
| CNC Roughing | 5-Axis High-Speed Milling | ±0.01mm | Die shoes, cavity blocks |
| Wire EDM | CNC Wire Cut (0.005mm wire) | ±0.005mm | Punch/die clearances |
| Ram EDM | Sinker EDM | Ra < 0.4μm | Complex contours, ribs |
| Surface Grinding | Precision Grinder | ±0.002mm | Flat surfaces, parallelism |
| Jig Grinding | Coordinate Grinding | ±0.001mm | Precision holes, profiles |
Phase 3: Heat Treatment & Surface Engineering (Days 36-40)
– Vacuum Quenching: HRC 58-62 hardness for cutting/forming components
– Nitriding: 0.1-0.3mm diffusion layer for wear resistance
– PVD Coating: TiN, TiAlN, or CrN coating for extended tool life (2-3x improvement)
– TD Coating: Toyota Diffusion coating for extreme wear applications (HV2800+)
Phase 4: Assembly & Validation (Days 41-55)
– Master Assembly: Experienced technicians (avg. 15 years) assemble with 0.02mm guide pin clearance
– T0 Trial: Initial stamping trial with customer material, dimensional report provided
– T1-T3 Optimization: Adjustments for springback compensation, burr reduction, and surface quality
– Production Validation: 300-piece buy-off run with CMM inspection report
Phase 5: Delivery & Documentation (Days 56-60)

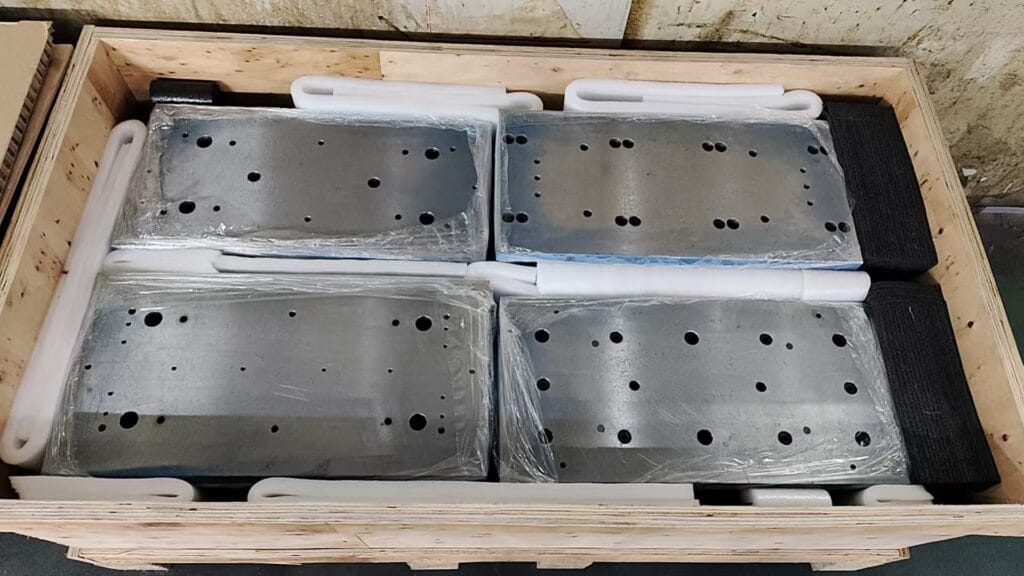

– Protective Packaging: Anti-rust oil, VCI film, fumigated wooden case (ISPM-15)
– Documentation Package:
– 2D/3D die drawings (DWG, STEP, PDF)
– Steel material certificates
– Heat treatment reports
– Dimensional inspection reports
– Operation and maintenance manual
Quality Assurance & Inspection
In-Process Quality Control
– Material Verification: Incoming steel mill certification check
– Dimensional Inspection: CMM (Coordinate Measuring Machine) for critical dimensions
– Hardness Testing: Rockwell hardness tester for every heat-treated batch
– Surface Roughness: Profilometer measurement (Ra < 0.4μm requirement)
Final Validation
– Tonnage Verification: Press force measurement during trial stamping
– Part Quality: Visual inspection, dimensional report, and sample parts (300 pcs)
– Die Function: Strip progression check, pilot pin accuracy, and scrap cutting verification
Certifications
✓ ISO 9001:2015 – Quality Management System
✓ IATF 16949 – Automotive Quality Standard
✓ ISO 14001:2015 – Environmental Management
✓ CE Marking – European Conformity
Competitive Advantages
| Feature | Our Capability | Industry Standard |
| Specialization | 20+ years dedicated to automotive heat exchange molds | General stamping die makers |
| Precision Level | ±0.01mm die part accuracy, ±0.10mm part tolerance | ±0.05mm typical |
| Global Experience | 200+ radiator manufacturers served worldwide | Regional suppliers |
| Delivery Speed | 45-day standard, 35-day expedited | 60-90 days typical |
| Design Capability | Reverse engineering from OEM samples or part numbers | Requires complete drawings |
| Technical Support | Lifetime engineering consultation + spare parts inventory | Limited post-sale support |
| Cost Efficiency | Optimized material utilization (75-85%) | 60-70% typical |
Industry Applications – Radiator Stamping Die
Automotive OEM
– Passenger Vehicles: Engine radiator header plates, cooling fins, side plates
– Commercial Vehicles: Heavy-duty truck radiator frames, intercooler tanks
– Electric Vehicles (EV): Battery cooling system heat exchanger components
– Hybrid Systems: Dual-temperature radiator stampings
Industrial & Aftermarket
– Construction Equipment: Radiator frame assemblies for excavators, loaders
– Agricultural Machinery: Tractor radiator components
– Power Generation: Generator cooling system stampings
– Replacement Parts: Aftermarket radiator repair components
Frequently Asked Questions (FAQ)
1. Q: What is the typical service life of a radiator header plate stamping die?
A: Standard dies with D2 steel achieve 300,000-500,000 stamping cycles. With carbide inserts or advanced coatings (PVD/TD), 1,000,000+ cycles are achievable. Actual life depends on material thickness, material type (aluminum vs. steel), and maintenance practices.
2. Q: How do you ensure leak-proof sealing surfaces on header plates?
A: We achieve ±0.01mm flatness tolerance on sealing surfaces through: (1) Precision surface grinding, (2) Optimized stamping die clearance to prevent burr formation, (3) Coining operations for surface finish improvement, and (4) 100% visual inspection and CMM verification.
3. Q: How do you control springback in aluminum radiator header plate forming?
A: We employ three strategies: (1) FEA simulation to predict springback angles during design phase, (2) Over-bending die geometry to compensate for elastic recovery, and (3) Restrike operations in the die to finalize critical dimensions.
4. Q: Can you design stamping dies based on OEM radiator part numbers?
A: Yes, our engineering team can reverse-engineer from physical samples, OEM part numbers, or 2D/3D drawings. We maintain an extensive database of radiator specifications from major automotive brands (Denso, Valeo, Mahle, Modine).
5. Q: What is the difference between progressive die and compound die for radiator parts?
A: Progressive dies are ideal for high-volume production (250,000+ parts/year) with multiple operations in one die, running at 50-200 SPM. Compound dies perform cutting and forming in one station, better for medium volumes (10,000-250,000/year) with simpler geometries and lower tooling investment.
6. Q: Do you provide stamping process parameters with the die?
A: Yes, we provide a complete process guide including: press tonnage requirements, stroke speed, feed height, shut height, lubrication recommendations, and strip layout diagrams based on T0-T3 trial results.
Request a Quotation – Radiator Stamping Die
Required Information for Accurate Quote:
1. Part Data: 3D STEP/IGES files or 2D drawings (PDF/DWG) with material specifications
2. Material Details: Aluminum alloy grade, thickness, temper (e.g., 3003-H14, 1.2mm)
3. Annual Volume: Expected production quantity (strokes/year)
4. Press Information: Available press tonnage, bed size, stroke length
5. Die Preference: Progressive vs. compound vs. stage tooling
6. Surface Requirements: Sealing surface flatness, cosmetic finish specifications
7. Delivery Terms: FOB, CIF, DDP, or EXW
Contact our engineering team for a detailed quotation within 24 hours.
