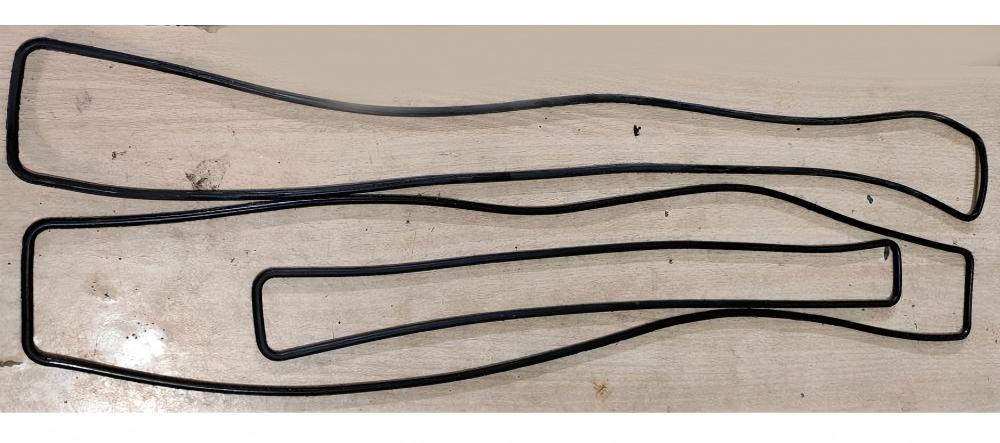

Radiator Rubber Gasket Supplier
Our radiator rubber gasket is engineered for critical sealing applications in automotive cooling systems, HVAC equipment, and industrial heat exchangers. Manufactured from premium EPDM (Ethylene Propylene Diene Monomer) and silicone rubber compounds, these gaskets provide exceptional resistance to ethylene glycol coolants, high temperatures, ozone, and weathering—ensuring leak-free performance throughout the vehicle service life.
Our radiator gaskets meet ASTM D-2000-2BA specifications and IATF 16949 automotive quality standards. Available in custom shapes, sizes, and hardness grades to match specific OEM requirements.
Our radiator rubber gasket is engineered from high-performance ethylene propylene diene monomer (EPDM) rubber, delivering superior sealing reliability in automotive cooling systems, HVAC equipment, and industrial thermal management applications. EPDM’s unique molecular structure—saturated polymer backbone with pendant diene groups for crosslinking—provides exceptional resistance to water, ethylene glycol coolants, ozone, UV radiation, and weathering, making it the material of choice for radiator, heater core, and thermostat sealing
Designed for sealing between radiator tanks and core assemblies, thermostat housings, water pump flanges, and cooling system connections, our radiator gaskets meet ASTM D-2000-2BA specifications and IATF 16949 automotive quality standards. Available in custom shapes, sizes, and hardness grades to match specific OEM requirements.
Technical Specifications - Radiator Rubber Gasket
| Parameter | EPDM Radiator Gasket | Silicone Radiator Gasket | Neoprene Alternative |
| Material | EPDM (Ethylene Propylene Diene Monomer) | VMQ (Vinyl Methyl Silicone) | CR (Chloroprene) |
| Color | Black (standard), White (FDA) | Red, Black, Custom | Black |
| Durometer (Hardness) | 45-55 Shore A (soft), 55-65 Shore A (medium), 70-80 Shore A (hard) | 40-70 Shore A | 50-70 Shore A |
| Temperature Range | -40°C to +120°C (-40°F to +248°F) | -60°C to +230°C (-76°F to +446°F) | -40°C to +120°C (-40°F to +248°F) |
| Tensile Strength | 7-21 MPa (1000-3000 PSI) | 5-10 MPa | 7-15 MPa |
| Elongation at Break | 300-600% | 200-400% | 250-500% |
| Compression Set | <25% at 70°C/22h | <30% at 200°C/22h | <35% at 100°C/22h |
| Coolant Resistance | Excellent (ethylene glycol, propylene glycol) | Good | Good |
| Oil/Fuel Resistance | Poor (not recommended) | Fair | Excellent |
| Ozone/UV Resistance | Superior | Excellent | Good |
| Steam Resistance | Up to 100°C/212°F | Up to 150°C/302°F | Up to 100°C/212°F |
| Water Resistance | Excellent (hot & cold) | Excellent | Good |
| Electrical Properties | Good insulation | Excellent insulation | Fair insulation |
| Manufacturing Method | Die-cutting, Water-jet, Laser, Molding | Die-cutting, Extrusion, Molding | Die-cutting, Molding |
| Thickness Range | 0.5-12mm (0.02-0.47") | 0.5-10mm | 0.5-10mm |
| Standard Sizes | Custom per drawing | Custom per drawing | Custom per drawing |
| Pressure Rating | Up to 10 bar (145 psi) | Up to 15 bar (218 psi) | Up to 10 bar (145 psi) |
| Certifications | ASTM D-2000-2BA, IATF 16949, RoHS, REACH | FDA, UL, IATF 16949 | ASTM, IATF 16949 |
Material Selection Guide for Radiator Applications

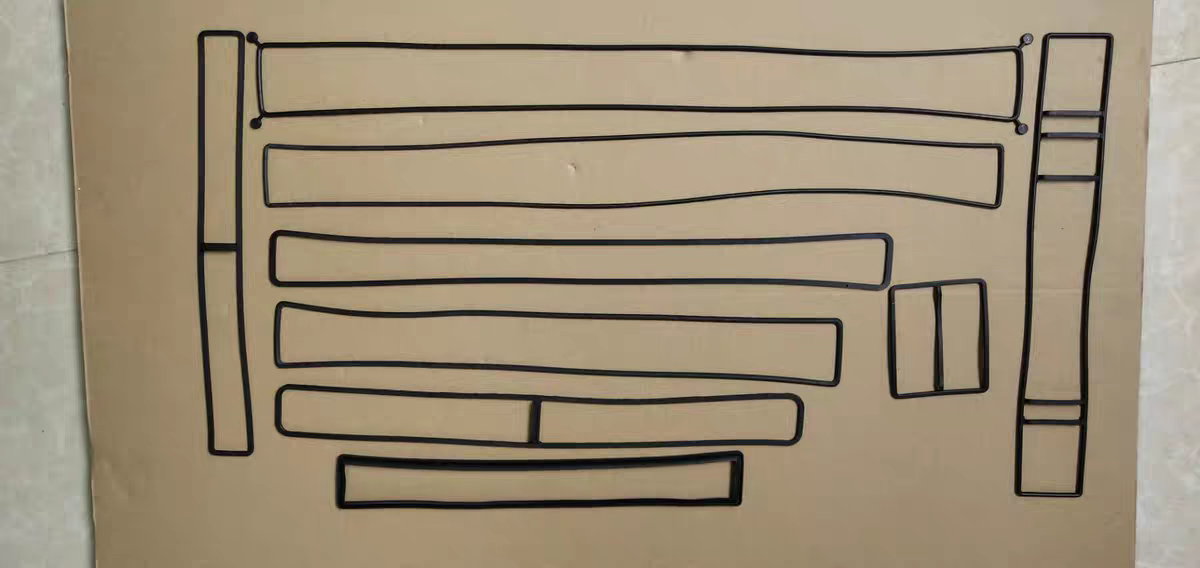

Radiator Rubber Gasket
| Application Environment | Recommended Material | Key Properties |
| Standard Engine Coolant (Ethylene Glycol) | EPDM 55-65 Shore A | Cost-effective, excellent coolant resistance, -40°C cold start capability |
| High-Temperature Racing/Performance | Silicone 60-70 Shore A | 230°C peak temperature, extreme durability |
| Heavy-Duty Commercial Vehicles | EPDM 70-80 Shore A | Higher compression resistance, longer service life |
| Steam/Hot Water Systems | Peroxide-cured EPDM | 150°C continuous steam resistance |
| Food-Grade Coolant Systems | White FDA EPDM | Non-toxic, FDA compliant |
| Oil-Contaminated Coolant | Neoprene or FKM (Viton®) | Oil resistance required |
Product Types & Configurations – Radiator Rubber Gasket
1. Flat Radiator Gasket (Sheet Gasket)
– Construction: Solid EPDM or silicone rubber sheet, die-cut to shape
– Applications: Radiator tank-to-header plate sealing, thermostat housings, water pump flanges
– Thickness: 1-3mm standard (custom available)
– Surface Finish: Smooth or textured (improved grip)
– Adhesive Backing: Optional PSA (Pressure Sensitive Adhesive) for assembly assistance
2. Molded Radiator Gasket (Custom Profile)
– Construction: Compression or injection molded with custom cross-section
– Applications: Complex geometries, integrated sealing beads, metal-insert gaskets
– Features:
– Integrated compression stops
– Metal reinforcement inserts
– Dual-durometer construction (soft sealing surface, rigid mounting)
– Tooling: Custom molds for high-volume production
3. Beaded/Profiled Radiator Gasket
– Construction: Extruded or molded with sealing beads/ribs
– Advantage: Enhanced sealing pressure at critical points, reduced
clamping force required
– Applications: High-pressure cooling systems, heavy-duty radiators
4. Metal-Rubber Composite Gasket
– Construction: EPDM/silicone bonded to steel or aluminum carrier
– Advantages:
– Structural rigidity for large gaskets
– Improved torque retention
– Easier assembly alignment
– Applications: Large truck/bus radiators, industrial heat exchangers
Manufacturing Process & Quality Assurance – Radiator Rubber Gasket
Step 1: Material Compounding
– EPDM Base: Ethylene-propylene polymer with ENB (ethylidene norbornene) cure site
– Reinforcement: Carbon black (for UV/ozone resistance), mineral fillers
– Curing System: Sulfur-cured (general purpose) or peroxide-cured (high heat/steam)
– Additives: Plasticizers, antioxidants, processing aids
– Quality Check: Rheometer testing for cure characteristics, durometer verification
Step 2: Gasket Fabrication
| Method | Best For | Tolerances | Volume |
| Die-Cutting | Simple shapes, high volume | ±0.25mm | 10,000+ units |
| CNC Knife Cutting | Complex shapes, prototypes | ±0.5mm | 100-10,000 units |
| Water-Jet Cutting | Thick materials, no tooling | ±0.1mm | 1-1000 units |
| Laser Cutting | Precision, intricate details | ±0.05mm | 100-5000 units |
| Compression Molding | Custom profiles, 3D geometry | ±0.1mm | 1000+ units |
| Injection Molding | High-volume complex parts | ±0.05mm | 10,000+ units |
Step 3: Quality Control
– 100% Visual Inspection: Check for cuts, voids, surface defects
– Dimensional Verification: CMM or optical measurement against drawing
– Hardness Testing: Shore A durometer (5-point average)
– Compression Set: ASTM D395 (22h at 70°C)
– Tensile/Elongation: ASTM D412 (minimum 7 MPa, 300% elongation)
– Coolant Immersion: 1000h at 100°C in 50/50 ethylene glycol/water
– Leak Testing: Pressure decay test at 2x operating pressure
Competitive Advantages - Radiator Rubber Gasket
| Feature | Our Capability | Industry Standard |
| Material Expertise | Custom EPDM compounding for coolant compatibility | Off-the-shelf generic EPDM |
| Manufacturing Flexibility | Die-cut, water-jet, laser, molded—all in-house | Single-method suppliers |
| Prototype Speed | Samples in 48 hours | 2-3 weeks typical |
| Automotive Certification | IATF 16949, ASTM D-2000-2BA | ISO 9001 only |
| Technical Support | Application engineering, material selection guidance | Sales-only support |
| Global Supply | Manufacturing in North America, Europe, Asia | Regional only |
| Customization | Color, hardness, adhesive backing, metal inserts | Limited options |
Applications by Industry - Radiator Rubber Gasket
Automotive OEM & Aftermarket
| Component | Function | Material Grade |
| Radiator Tank Gasket | Seal between plastic/aluminum tank and core | EPDM 55-65A, black |
| Thermostat Housing Seal | Engine temperature control sealing | EPDM 65-75A, high temp |
| Water Pump Gasket | Coolant circulation system sealing | EPDM 55-65A, PSA backing |
| Heater Core Gasket | HVAC system sealing | EPDM 45-55A (soft for conformability) |
| Expansion Tank Seal | Coolant reservoir sealing | EPDM 55-65A, ozone resistant |
| Charge Air Cooler Gasket | Turbo/intercooler sealing | Silicone 60-70A (higher temp) |
Industrial & Commercial
– HVAC Heat Exchangers: Chiller and boiler sealing
– Power Generation: Cooling system gaskets for generators
– Agricultural Equipment: Tractor and harvester radiator seals
– Marine Engines: Boat and ship cooling system gaskets (saltwater resistant grades)
Frequently Asked Questions (FAQ)
1. Q: Why is EPDM the best material for radiator gaskets?
A: EPDM is ideal for radiator applications because of its superior resistance to water, ethylene glycol coolants, ozone, and UV exposure. It maintains elasticity from -40°C to +120°C, ensuring reliable sealing in all weather conditions. Unlike NBR (nitrile), EPDM does not degrade from coolant exposure. Unlike silicone, it offers better cost-effectiveness for standard applications. However, EPDM is not suitable for oil-contaminated coolants—use neoprene or FKM for those applications.
2. Q: What is EPDM rubber used for in automotive applications?
A: EPDM (Ethylene Propylene Diene Monomer) is used in automotive radiator gaskets, heater core seals, weatherstripping, and cooling system components due to its superior resistance to water, ethylene glycol coolants, ozone, and UV radiation. EPDM maintains sealing performance from -40°C to +120°C with excellent compression set resistance, making it ideal for engine cooling systems where long-term reliability is critical.
3. Q: Is EPDM good for radiator hoses and gaskets?
A: Yes, EPDM is excellent for radiator gaskets and hoses—it’s the industry standard material. EPDM’s saturated polymer backbone
provides unmatched ozone and weathering resistance compared to unsaturated rubbers. It exhibits <5% volume swell in ethylene glycol coolant at 100°C, maintains elasticity across automotive temperature ranges, and offers cost-effective long service life (5-10 years typical).
4. Q: What hardness (durometer) should I choose for my radiator gasket?
A: 45-55 Shore A: Soft, excellent conformability for uneven surfaces, low clamping force applications. 55-65 Shore A: Most common, balanced sealing and durability for standard radiator tanks. 70-80 Shore A: Hard, high compression resistance for heavy-duty commercial vehicles or high-pressure systems. The choice depends on flange design, clamping force, and surface finish.
5. Q: How long do radiator rubber gaskets last?
A: With proper material selection and installation, EPDM radiator gaskets typically last 5-10 years or 150,000-300,000 km in automotive applications. Factors affecting life include: operating temperature (continuous >100°C accelerates aging), coolant chemistry (corrosion inhibitors compatibility), ozone/UV exposure (under-hood vs. enclosed), and compression set (over-torquing causes permanent deformation).
6. Q: Can you provide custom shapes and sizes?
A: Yes, we specialize in custom radiator gaskets manufactured to your drawings or samples. Our capabilities include: 2D/3D CAD design support, rapid prototyping (48-hour samples), custom tooling for molded profiles, and multi-material combinations (rubber-to-metal bonding). We can reverse-engineer from OEM samples or develop new designs for your specific application.
7. Q: What is the difference between sulfur-cured and peroxide-cured EPDM?
A: Sulfur-cured EPDM: Lower cost, general-purpose, good for standard radiator applications up to 120°C. Peroxide-cured EPDM: Higher heat resistance (up to 150°C), better compression set resistance, lower odor, preferred for high-performance or steam applications. Peroxide curing is required for food-grade (FDA) applications as sulfur residues can affect taste/odor.
8. Q: Can EPDM radiator gaskets handle modern long-life coolants (OAT, HOAT)?
A: Yes, standard EPDM is compatible with modern Organic Acid Technology (OAT) and Hybrid Organic Acid Technology (HOAT) coolants. However, silicate-based coolants (IAT) can cause slightly more swelling. For high-performance long-life coolants with aggressive additive packages, we offer specialized EPDM-LS (low-swelling) compounds with enhanced chemical resistance. Always verify compatibility with specific coolant chemistry through immersion testing.
