Product Introduction

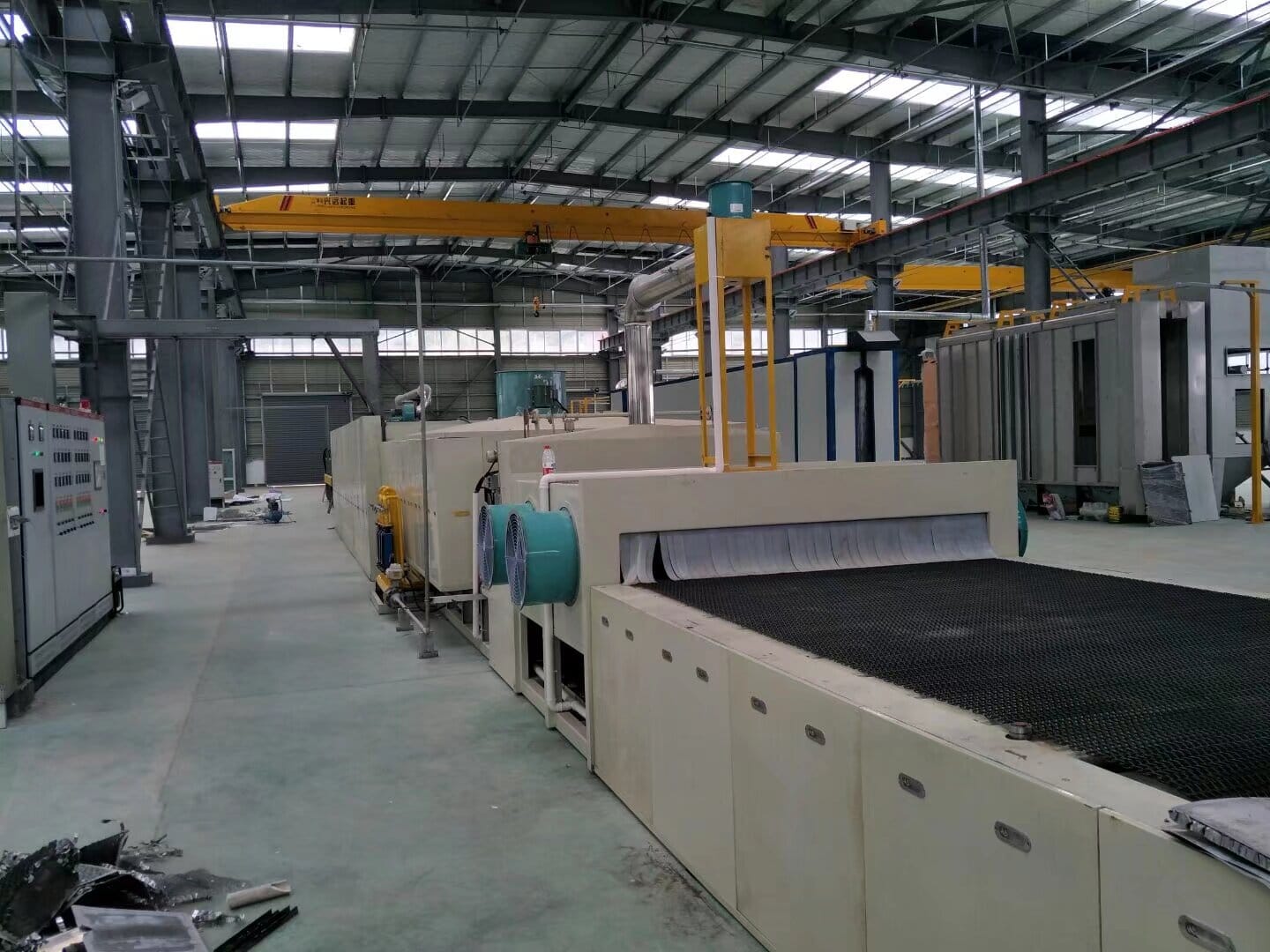

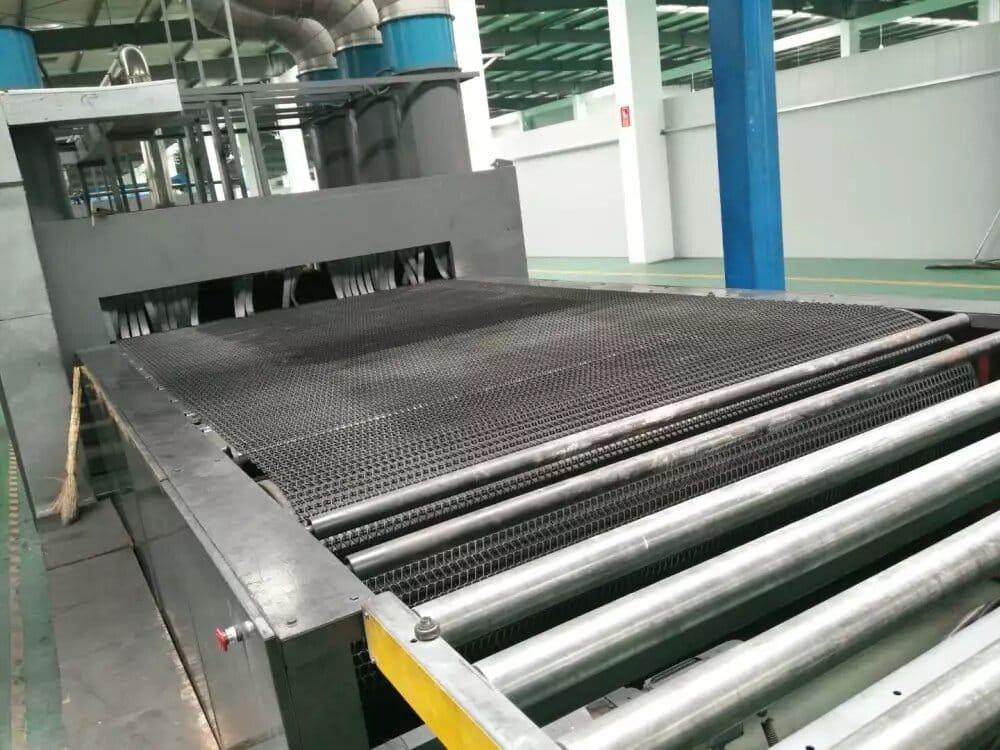

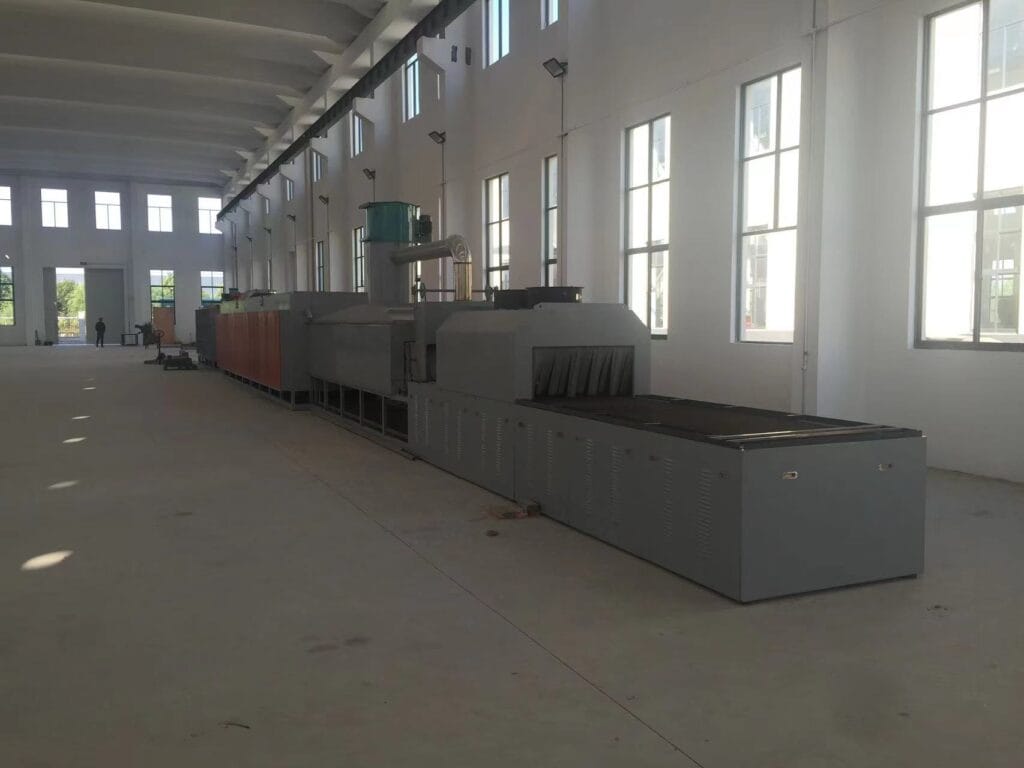

Water-Cooled Plate Brazing Furnace

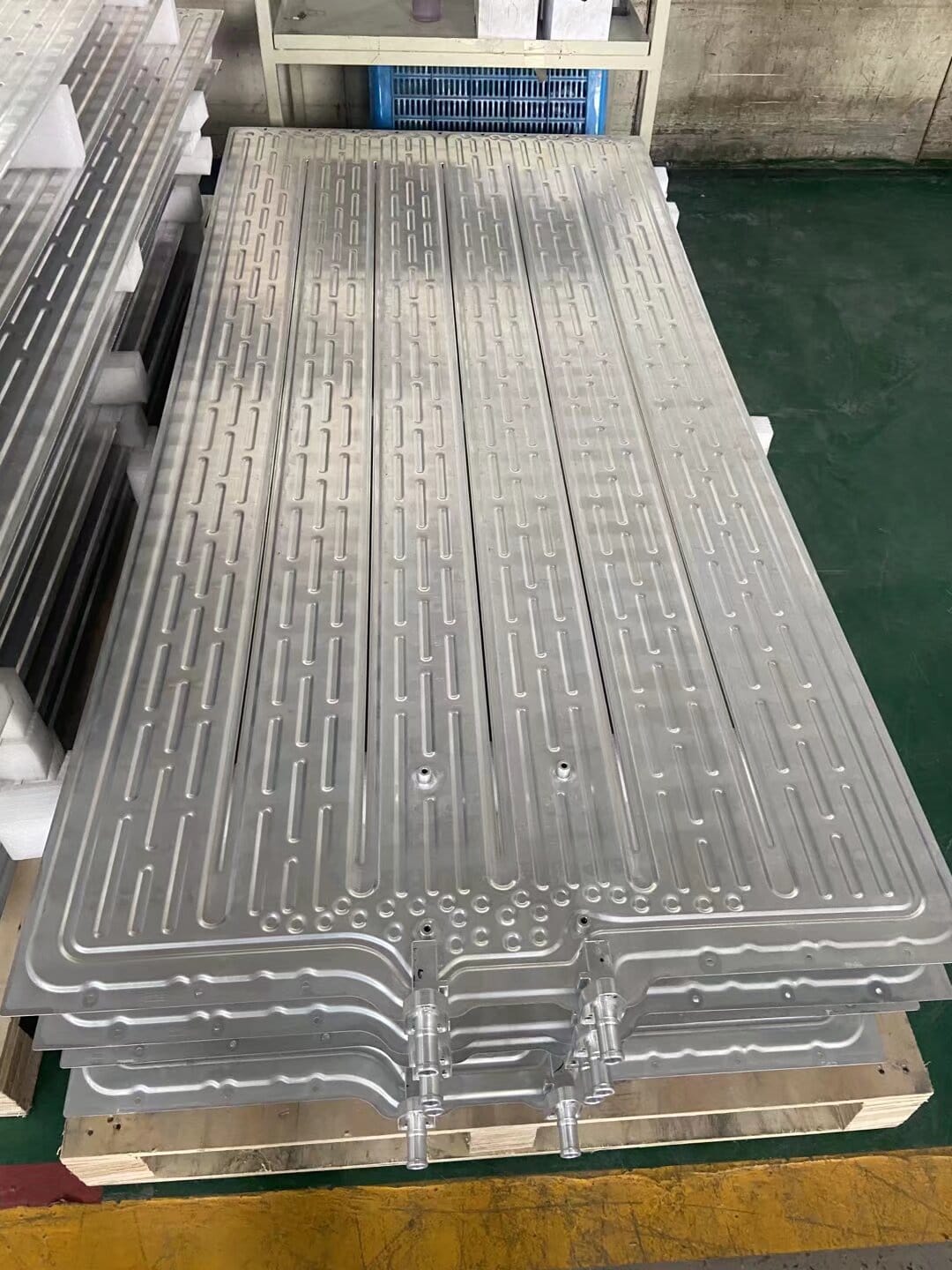

A water-cooling plate brazing furnace is an industrial system engineered for the precision manufacture of liquid-cooled cold plates that serve as the thermal backbone of high-performance electronics—servers, energy-storage battery packs, IGBT modules and comparable applications.
The furnace delivers a tightly controlled, high-purity atmosphere in which a molten brazing filler alloy forms hermetic, high-strength joints between stamped or machined metal sheets, creating complex internal flow channels with minimal distortion and maximum leak-tightness.
Product Advantages
Water-Cooled Plate Brazing Furnace
Brazing is a solid-state joining technology. Unlike fusion welding, the base metals never reach their melting point. A filler alloy whose solidus lies below that of the parent material is inserted between the faying surfaces. The assembly is heated to a temperature above the filler liquidus but below the base-metal solidus. Once molten, the filler wets, spreads and dissolves a controlled amount of the substrate, then flows into the joint gap by capillary action. Metallurgical inter-diffusion between filler and base metal produces a continuous, void-free bond line that seals the channel network while preserving the dimensional tolerances critical for high-efficiency heat transfer.
Water-Cooled Plate Brazing Furnace
A water-cooling plate brazing furnace is an industrial unit purpose-built for fabricating the liquid-cooled cold plates used in thermal-management systems of high-power electronics—ranging from server enclosures to new-energy battery packs. By elevating the assembly to controlled, high-temperature conditions, it melts and flows a precisely alloyed brazing filler, creating metallurgically sealed, leak-tight metallic channel structures with exceptional dimensional accuracy and joint integrity. Our water-cooled plate brazing furnaces can be customized to meet your needs and budget at competitive prices. We welcome your inquiries and look forward to establishing a long-term partnership with you. Global Industrial Furnace Supplier. Get a Quote Now.
Product SKU: 2
Product Brand: DAG
