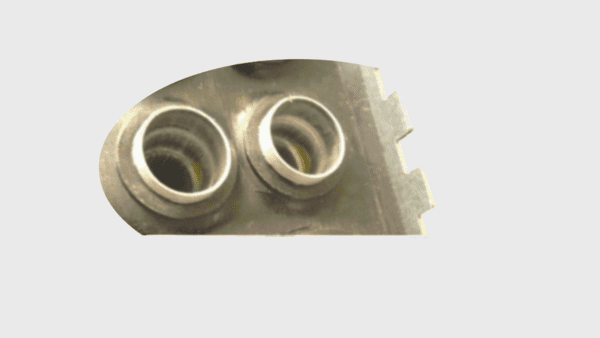

Tube -type radiator core body

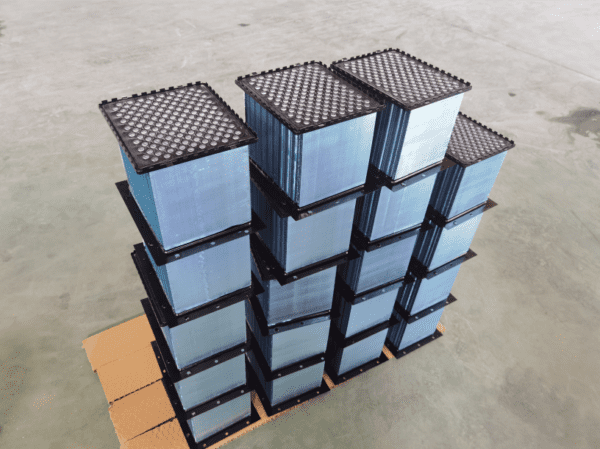

Tube -type radiator core body

The mechanical radiator-making machines include the expansion machine, which could flare the pipe end and form a tight contact between the header and the aluminum pipe.

Pipe expansion is an essential step in making mechanical aluminum radiators.

Send Your Inquiry Now

Description

Machine Description

Machine Name: Radiator Making Machine Radiator Type: Mechanical
Aluminum Pipe: 8mm Dia PLC Brand: Delta, Taiwan
Power: 7.5KW Electrical Control System: PLC And HMI
High Light: radiator manufacturing equipment, radiator production line

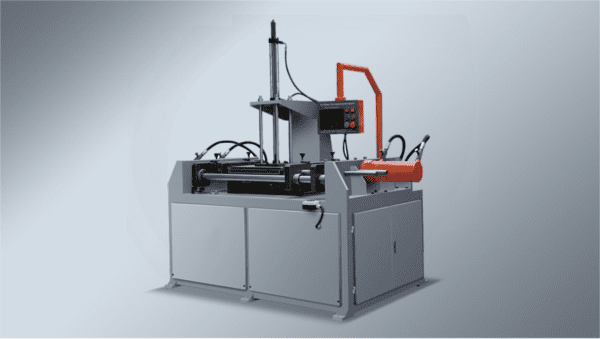

Tube-header Expansion Machine

  • Both automatic and manual control modes are available.
  • The electrical control system relies on a PLC controller to control the tube expansion process.
  • The machine works with hydraulic power.
  • It is easy to change the tooling for different models.

Machine Technical Parameters

Core dimension Core height direction:350-780mm
Core Width direction:200-680mm
Hole flaring specification as per the Customer’s requirements
Pipe Hole Quantity as per the Customer’s requirements
Precision Tolerance Rangethe as per Customer’s requirements
Pipe Processed per time 1 Set/Cycle
Production capacity Around 240 Sets/Hour
Drive mode Servo/Pneumatic Hydraulic/Pneumatic(Optional)
Overall Dimension 2800*1500*1700mm
Weight 2.3 T

Additional information

Product Origin

CHINA
Brand Name

DaG MC
Model Number

DGC-E8
MOQ

1
Lead Time

60 day
Payment

30% DEPOSIT,70% BEFORE DELIVERY
Packaging Details

Wooden boxes that meet international export standards
Supply Ability

10sets/month
