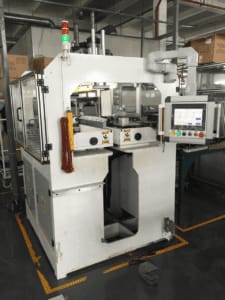

0.8Mpa Radiator Plastic Tank Crimping Machine

Radiator Crimping Machine
Radiator Plastic Tank Clinching Machine
Radiator Plastic Tank Crimping Machine
Car radiator water tank

Plastic Tank Clinching Machine for Car Aluminum Radiator

Radiator plastic tank crimping machine is divided into manual, semi-automatic and automatic models.At present, the manual ones in the market are basically eliminated.

The most commonly used features of the semi-automatic clinching machine are: low price, simple operation, suitable for the production situation of many models and small quantity

Features of automatic clinching machine: more than 200 models can be set for positioning press production. It does not need to be pressed by hand, and can press the tab on the four sides of the core at the same time. High production efficiency and high speed. It is suitable for the production mode of single model and quantity production quantity.

Send Your Inquiry Now

Machine Description

Machine Name: Radiator Plastic Tank Crimping Machine Power Supply: 3P 380V 50HZ (customized)
Core Components: PLC, Motor Air Pressure Requirements: 0.8MPa
Radiator Core Width: 350-950mm Header Plate Width: 30-120mm (customized)
High Light: Aluminum Radiator Plastic Tank Crimping Machine, Radiator Clinching  Machine

0.8Mpa Radiator Plastic Tank Crimping Machine

The device connects the plastic water chamber and the radiator core closely through the air cylinder drive to ensure that the coolant circulates in the radiator, which is the last process to complete the radiator manufacturing.

Machine Technical Parameters

Mould can customise shape unregular
Design style can customise after-sale service yes
OEM Welcome Indenter width 20/30/40mm
Driving mode Pneumatics Air pressure requirements 0.8Mpa
Number of cylinders 6–8 Voltage, power 3P 380V 50HZ,2.5kw
Core size 1000*900*56mm running speed adjustable
Workstation 2 production efficiency 60sec.
Maximum size of head plate 120mm Number of preset models Non.
Machine dimensions 1300*1200*1800 Direction adjustment 3 direction
Machine weight 800kg Programmable Non.
warranty 12 months brand name DaG MC
usage automobile Surface treatment vertical bright, transition matte or two-way bright
Plastic Tank Clinching Machine for Car Aluminum Radiator

Radiator plastic tank crimping machine is divided into manual, semi-automatic and automatic models.At present, the manual ones in the market are basically eliminated. The most commonly used features of the semi-automatic clinching machine are: low price, simple operation, suitable for the production situation of many models and small quantity Features of automatic clinching machine: more than 200 models can be set for positioning press production. It does not need to be pressed by hand, and can press the tab on the four sides of the core at the same time. High production efficiency and high speed. It is suitable for the production mode of single model and quantity production quantity.

Product SKU: 6

Product Brand: DAG

Editor's Rating:
5

Additional information

Product Origin

CHINA

Brand Name

DaG MC

Model Number

DGT-8M

MOQ

1

Lead Time

60 day

Payment

30% DEPOSIT,70% BEFORE DELIVERY

Packaging Details

Wooden boxes that meet international export standards

Supply Ability

10sets/month

Reviews

There are no reviews yet.

Be the first to review “0.8Mpa Radiator Plastic Tank Crimping Machine”

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours. Looking forward to working with you!
