PRODUCT DESCRIPTION

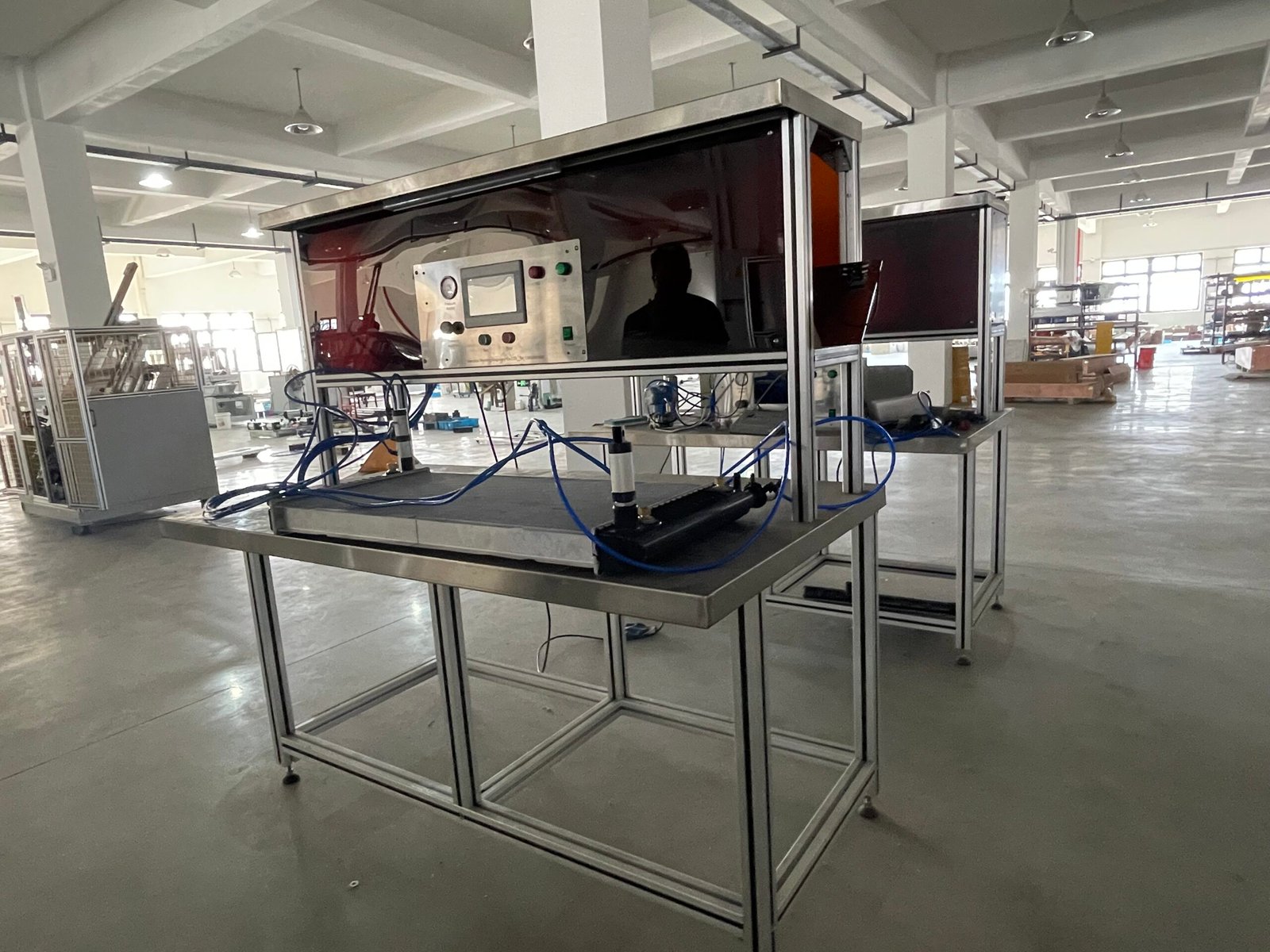

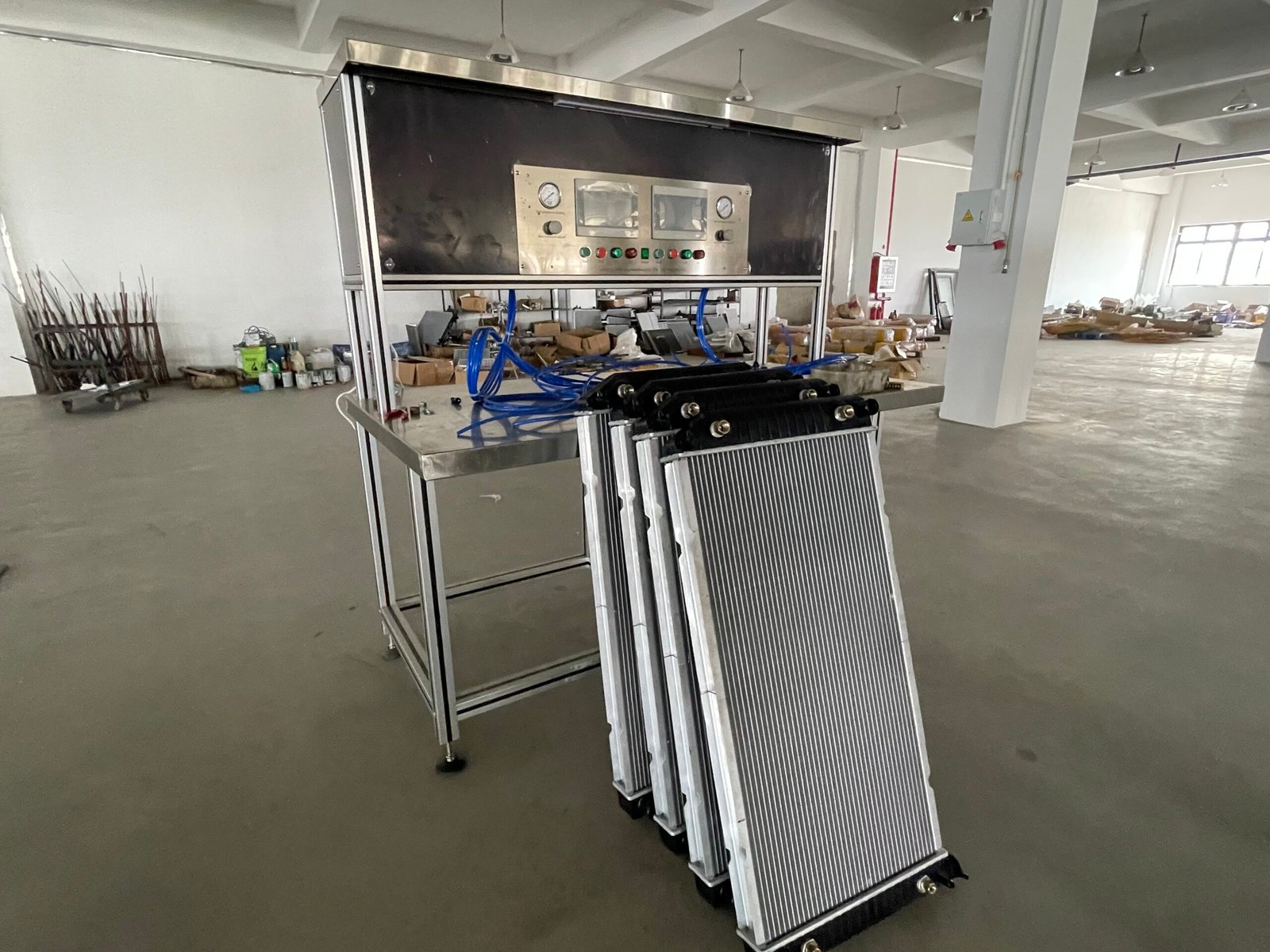

Radiator Leakage Tester
Product main features:
- large screen 7-inch touch screen;
- differential pressure definition1 Pa;
- multi-channel parameters (32 groups);
- both manual and automatic test modes;
- automatic self-cleaning function of the air pipes;
- RS232 interface output;
- USB data output; measurement value is directly written into U disk;
- sufficient remote control terminals for connecting PLC or directly driving the external equipment (such as solenoid valve);
- 12000 groups of data storage capacity; could be tracked by date
- a wide range of cores to be tested
PRODUCT PARAMETERS
Differential pressure type leakage test
| Essential pressure sensor | Resolution display | 0.1Pa |
| Sensor measuring range | 0~±2000Pa | |
| Sensor tolerated pressure | 13.8MPa | |
| Sensor error | 0.065%FS | |
| Direct pressure sensor | Resolution display | 0.1kPa |
| Measuring range | Qc100 Model：3~100kPa | |
| Qc300 Model：5~300kPa | ||
| Qc600 Model：5~600kPa | ||
| Qc1000 Model 50~1000kPa | ||
| Qc4000 Model：50~4000kPa | ||
| Sensor tolerated pressure | Three times the Pressure if the sensor is in full-scale | |
| Sensor error | ±1%FS | |
| Display unit | Test Pressure | kPa、kg/cm2、PSI、mbar、bar、Torr、mmH2O、mmHg |
| Leakage amount | Pa、Pa/s、mL/s、mL/min |
Direct pressure leakage tester
| Direct pressure sensor | Resolution display | 0.1 kPa |
| Measuring range | 0.0-20MPa | |
| Sensor tolerated pressure | Three times the pressure if the sensor in full scale | |
| Sensor error | ±1%FS | |
| Display unit | Test Pressure | kPa、kg/cm2、PSI、bar、mbar、torr、mmHg、mmH2O |
| Leakage amount | kPa、kg/cm2、PSI、bar、mbar、torr、mmHg、mmH2O、mL/min | |
| Leakage&test pressure upper limit | 20MPa | |
Flow leakage tester
| Flow sensor | Resolution display | 0.001mL/min |
| Display range | 0~999.9999mL/min | |
| Sensor tolerated possum | 0.7MPa | |
| Leakage upper limit | 200.00L/min | |
| Sensor error | ±1%FS | |
| Direct pressure sensor | Resolution display | 0.1kPa |
| Sensor measuring range | 0~600kPa | |
| Sensor tolerated pressure | ±1%FS | |
| Sensor error | Three times the Pressure if the sensor is in full-scale | |
| Display unit | Test Pressure | kPa、kg/cm2、PSI、bar、torr |
| Leakage amount | mL/min、mL/s、sccm、m3/h | |
| Pressure test range | 5~600kPa | |
| Data channel number | 32 groups（0~32） | |
| Display Refresh number | 20Hz | |
| Testing Cycle Time setting | 0~999 seconds, test time 1800 seconds | |
| Power | AC220V±10%，50Hz | |
| Test pressure source | Clean, dry air, pressure between 100kPa and 600kPa | |
| Environment temperature | Working temperature 5~40℃ Storage temperature-20~70℃ | |
