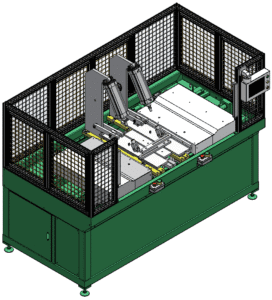

Servo Control Radiator Expanding Tube & Pipe Head Machine

Radiator Expanding Tube & Pipe Head Machine

As the main equipment for manufacturing an auto whole aluminum radiator, the radiator core during production adopts a servo motor as power. The process is to push an enlarging needle, to use needle to expand the diameter of aluminium tube. It makes aluminum tube and a main plate, a rubber seal fixed closely and ensures no leakage of the radiator. The machine has automatic and manual control, two safe ways of operation for your choice. It can be customised according to customer needs, with stable performance and an affordable price. Welcome to inquire!

Send Your Inquiry Now

Description

Machine Introduction

This machine is a flaring device for tube-fin radiators. Through the whole set of operation flow of this equipment: cover plate presses down → flaring needle advances → flaring needle retreats → cover plate rises → completes, the tube, main board, and sealing strip of the tube-fin radiator meet the sealing requirements. It uses pressure oil as power and completes the flaring in one working cycle through mechanical means. After flaring, the diameter of the tube is larger than the diameter of the sealing strip, so that the tube, main board and sealing strip are integrated to achieve a higher sealing effect.

Machine Parameters

Core width (main board length) 195mm---600mm
Core height (distance between main boards) 300mm--800mm
Core thickness 22mm---50mm
Enlarging speed 15 seconds
Equipment power supply Three Phase Four Wire 380V
Equipment dimensions L2310×W1220×H1620mm
Equipment weight About 1450kg
