Radiator Core Builder Machine With Tube Distribution

Radiator Core Builder Machine
Radiator Core Builder Machine
.Radiator Core Builder Machine
Radiator Core Builder Machine
.Radiator Core Builder Machine

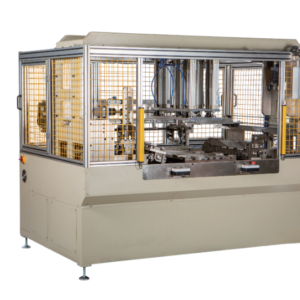

The radiator core builder machine is used to assemble cores based on the combined control of a mechanical and pneumatic mechanism, the electrical control system of a PLC, and a touch screen. The flat tubes, fins, side plates, and header plates are manually placed on the work table.

Send Your Inquiry Now

Description

Machine Description



Machine Name: Radiator Core Builder Machine Working Principle : Comb Teeth Structure; PLC Controlled; Hydraulic
Driving Force: Hydraulic, Pneumatic, Or Servo Color: Customer’s Requirement
Weight: 2500kg Power: 6kw
High Light: Core assembly machine, radiator core builder

Radiator Core Builder Machine With Tube Distribution

  • can be suitable for different types of tube
  • can adapt to varying sizes of cores
  • It has several core builder machines, such as a condenser core builder machine, an intercooler core builder machine, a heater aluminum core assembling machine, and a water tank core machine.

Machine Technical Parameters



shape unregular mold can customize
after-sale service yes design style can customize
Air pressure requirements 0.8Mpa Driving mode Pneumatics
Voltage, power 380V 50Hz ≤6Kw Number of cylinders 6–8
running speed adjustable Core size 1000*900*56mm
production efficiency 60sec. Workstation 1
Number of preset models Non. Maximum size of head plate 120mm
Programmable Non. Machine weight 2500kg
Brand name DaG MC warranty 12 months
Safety device radiator core builder is equipped with a photoelectric light curtain to protect the safety of the operator Efficiency About 4-5 Minutes One Core

Parameters of Radiator Core Builder

a. fin width:16, 18, 20, 24, 26, 32mm

b. fin height: 8mm

c. flat tube quantity: max 80 pcs (spacing at 10mm)

d. flat tube width: decided by the customer

e. flat tube thickness:2-3mm

f. tube-tube distance: decided by the customer

g. header width: decided by the customer

Additional information

Brand Name

DaG MC
Model Number

DGC-780*680mm
MOQ

1
Lead Time

60 day
Payment

30% DEPOSIT,70% BEFORE DELIVERY
Packaging Details

Wooden boxes that meet international export standards
Product Origin

CHINA
Supply Ability

10sets/month
