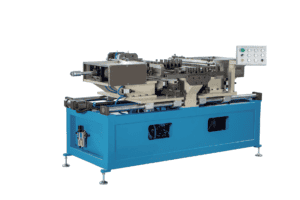

Pneumatic Radiator Core Builder Machine

Pneumatic Radiator Core Builder Machine
Radiator Core Builder Machine

This machine is used for the assembly of automobile radiators. Its main features are convenient and fast material distribution and simple use and adjustment. Compared with the fully automatic automobile heater assembly machine, this equipment eliminates the complex automatic material distribution device, and since it does not require flaring and adopts pneumatic transmission, the equipment price is greatly reduced. This machine has high processing accuracy, high positioning accuracy, simple and fast operation, safe and reliable, suitable for products of different sizes, and affordable price. Welcome to inquire! Welcome to buy!

Send Your Inquiry Now



Machine Introduction

The machine is special equipment for assembling the radiator core. The machine is used to construct the main board, side board, fins, and flat tubes into a car radiator. The cylinder controls the power of the machine, the process structure adopts the guide rail, and the position structure adopts the electrical equipment and machinery. The machine has the advantages of high process precision and high positioning accuracy. Simple operation, fast, safe, reliable, suitable for many variety of products.

Machine Parameters

Core height (distance between main boards) 300mm-950mm
Core width (main board length) 300mm-750mm
Core thickness 16mm-60mm
Pressure of pneumatic system 0.4Mpa-0.7Mpa
Raw No. One or Two
Power Single phase 220 (V)
Dimension 1.2（T）
Equipment weight(L×W×H) 2300mm×1800mm×1200mm
