Product Introduction

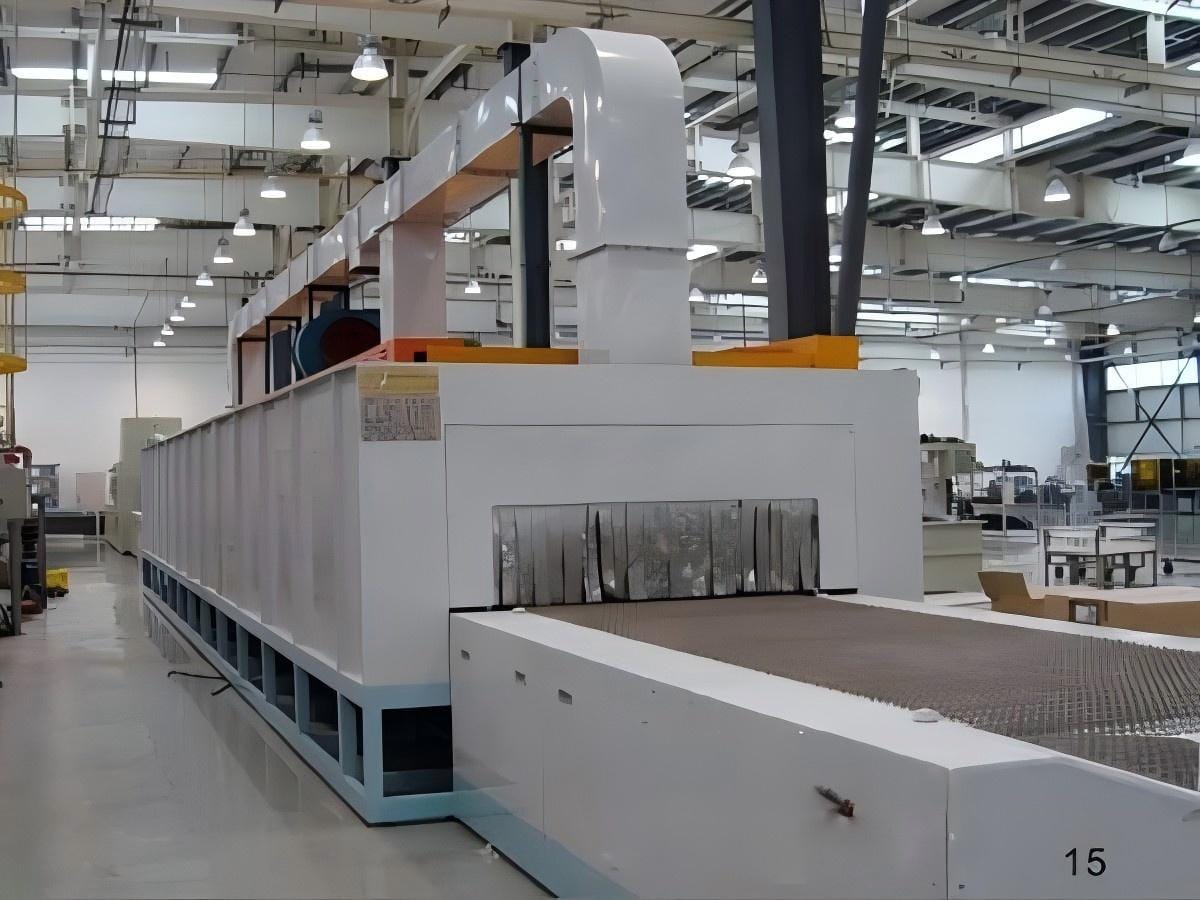

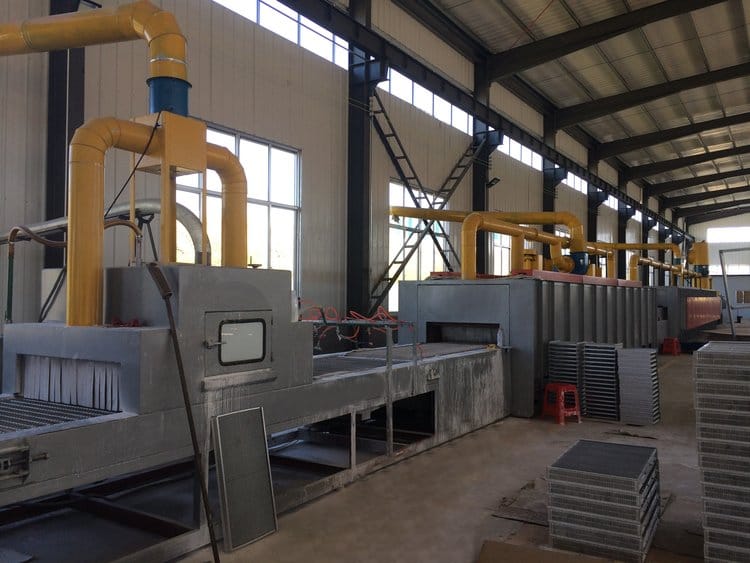

The NB continuous brazing furnace is an industrial-scale, nitrogen-atmosphere brazing line engineered for high-volume, oxide-free joining of aluminum heat exchangers. Operating under high-purity N₂ protection (< 5 ppm O₂, dew point –60 °C) and non-corrosive NOCOLOK® flux, the furnace delivers bright, flux-free joints at cycle speeds up to 1.5 m/min with zero post-braze cleaning.
This continuous brazing furnace is suitable for brazing automotive aluminum intercoolers, radiators, air conditioner condensers, evaporator heater radiators, and aluminum oil coolers.
Core Configuration
1. Multi-zone muffle design (3–12 m hot length) rated **650 °C max, ±2 °C uniformity per AMS 2750.
2. On-site nitrogen generator + molecular-sieve purification guarantees < 3 ppm residual oxygen throughout the brazing envelope.
3. 316 stainless-steel mesh belt (width 300–1 350 mm) or roller hearth for heavy cores; variable speed 200–1 500 mm/min.
4. Electro-static flux spray booth with closed-loop recycling cuts NOCOLOK® consumption 30 % and maintains 3–5 g/m² deposition.
5. Forced-air & water-jacket cooling section reduces exit temperature to < 50 °C, eliminating fin warpage.
Technical Parameters
Our engineering team has made comprehensive adjustments and technical improvements to the structure and energy saving of the NB continuous brazing furnace, making the equipment more neat and beautiful, energy-saving, and more applicable. It has been put into use by customers.
| Model | Rated voltage (V) | Number of phases | Rated power (kW) | Rated temperature (°C) | Working dimensions (mm) | External dimensions (mm) |
| NB-450-150 | 380 | 3 | 242 | 750 | 450*150 | 28500*1520*1600 |
| NB-450-200 | 380 | 3 | 242 | 750 | 450*200 | 28500*1520*1650 |
| NB-600-200 | 380 | 3 | 303.5 | 750 | 600*200 | 29000*1670*1650 |
| NB-600-300 | 380 | 3 | 303.5 | 750 | 600*300 | 29000*1670*1750 |
| NB-800-200 | 380 | 3 | 480 | 750 | 800*200 | 37700*1870*1750 |
| NB-800-300 | 380 | 3 | 480 | 750 | 800*300 | 37700*1870*1850 |
Note: Can be customized according to your requirements.
Affordable NB Continuous Brazing Furnace
Continuous brazing furnaces are used to manufacture aluminum intercoolers, radiators, air conditioning condensers, evaporator heater tanks, aluminum oil coolers, and other automotive products. Fully Customizable. Affordable Price.On-site Installation. Commissioning.Operator Training.Global Industrial Furnace Supplier. Get a Quote Now.
