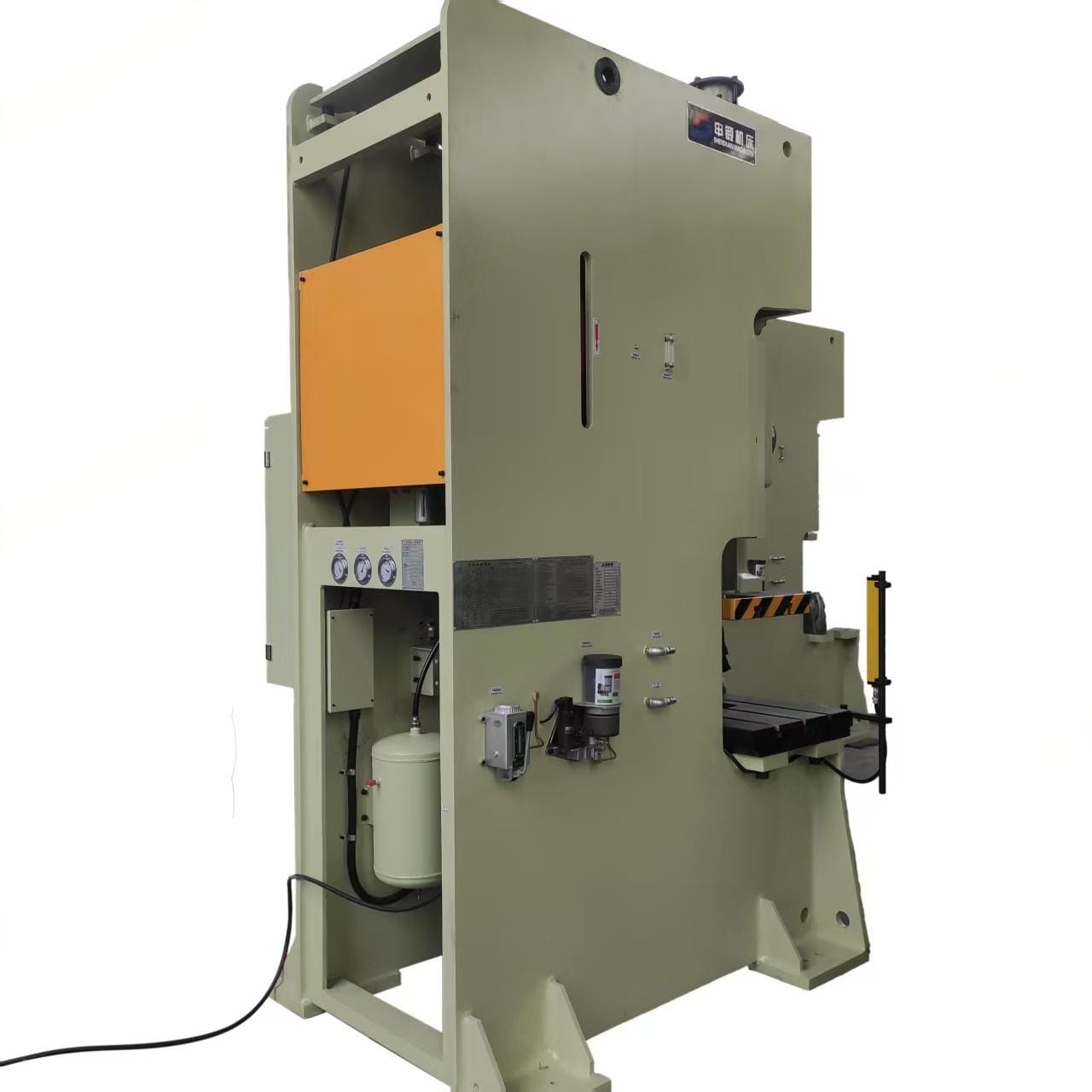

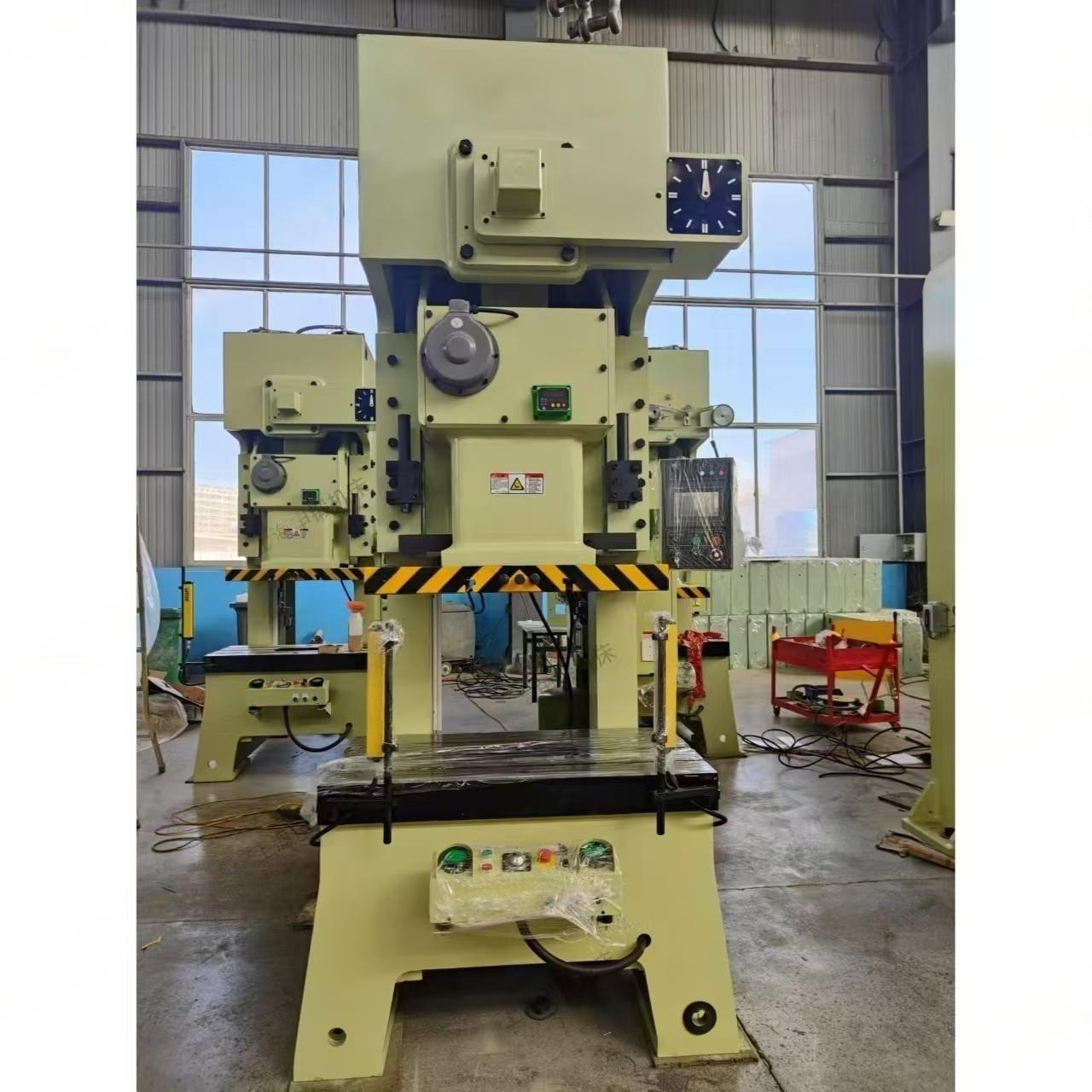

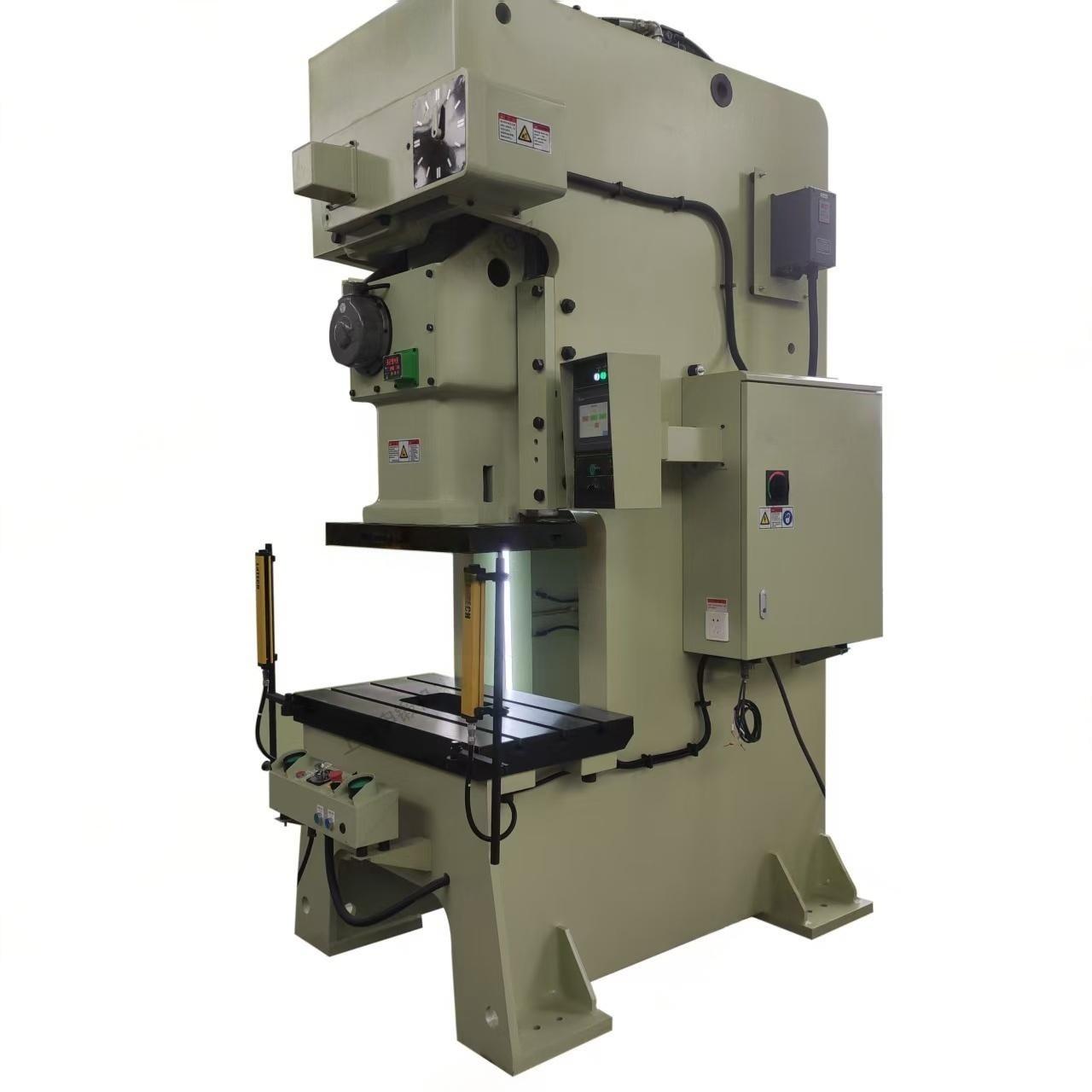

Our high-precision steel punch press frames are welded from high-quality steel plates and stress-relieved for enhanced stability and reliability. The drive center is aligned with the center of the machine tool to ensure punching accuracy and stability.
Product Features
1. In order to guarantee the machine runs stably and smoothly, adopt the design of symmetrical two slide boards with a balancer.
2. The precision of mould adjusting up to 0.1 mm, safety, reliability, and convenience.
3. Crank, gear, and connecting bar are oxidised hardening and milled, having a super comprehensive mechanical performance and durable function.
4. Using a reliable high-sensitive clutch brake and an international up double solenoid valve, an overload protector can guarantee the precision of slider running and stop the safe production of the machine.
5. Reasonable structural design is beneficial for automation production and reduces cost, improving efficiency.
6 . Advanced design principle, low noise, low consumption, low cost, and save energy.
Technical Parameters
Table 1
| Name | unit | APA-25 | APA-35 | APA-45 | APA-60 | APA-80 | DAG-110 | ||||||
| Model | V型 | H型 | V型 | H型 | V型 | H型 | V型 | H型 | V型 | H型 | V型 | H型 | |
| Capacity | Ton | 25 | 35 | 45 | 60 | 80 | 110 | ||||||
| Rated tonnage point | mm | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 | 4 | 2 | 6 | |
| Speed changing | s.p.m | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 100-150 | 35-90 | 80-120 | 35-80 | 80-120 | 30-60 | 60-90 |
| Stable speed | s.p.m | 110 | 85 | 75 | 65 | 65 | 50 | ||||||
| Stroke | mm | 60 | 30 | 70 | 40 | 80 | 50 | 120 | 60 | 150 | 70 | 180 | |
| Die height | mm | 200 | 215 | 220 | 235 | 250 | 265 | 310 | 340 | 340 | 380 | 360 | |
| Slide adjustment | mm | 50 | 55 | 60 | 75 | 80 | 80 | ||||||
| Slide area | mm | 300*220*50 | 360*250*50 | 400*300*60 | 500*360*70 | 560*420*70 | 650*470*80 | ||||||
| Bolster area | mm | 680*300*70 | 800*400*70 | 850*440*80 | 900*500*80 | 1000*550*90 | 1150*600*110 | ||||||
| Shank hole | mm | Φ38.1 | Φ38.1 | Φ38.1 | Φ50 | Φ50 | Φ50 | ||||||
| Main motor | kw | 3.7 | 3.7 | 5.5 | 5.5 | 7.5 | 11 | ||||||
| Air pressure | kg/cm² | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| Presses dimension （L*W*H) | mm | 1280*850*2200 | 1380*900*2400 | 1600*950*2500 | 1600*1000*2800 | 1800*1180*2800 | 1900*1300*3200 | ||||||
| Die cushion capacity | Ton | ﹣ | 2.3 | 3.6 | 3.6 | 3.6 | 6.3 | ||||||
| Stroke | mm | ﹣ | 50 | 70 | 70 | 70 | 80 | ||||||
| Die cushion effective area | mm² | ﹣ | 300*230 | 350*300 | 350*300 | 450*310 | 500*350 | ||||||
Table 2
| Name | unit | APA-125 | APA-160 | APA-200 | APA-260 | APA-315 | DAG-400 | ||||||
| Model | V型 | H型 | V型 | H型 | V型 | H型 | V型 | H型 | V型 | H型 | V型 | H型 | |
| Capacity | Ton | 125 | 160 | 200 | 260 | 315 | 400 | ||||||
| Rated tonnage point | mm | 6 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | 8 | 4 | 8 | 4 |
| Speed changing | s.p.m | 30-60 | 60-90 | 20-50 | 40-70 | 20-50 | 40-70 | 20-40 | 40-50 | 20-40 | 30-50 | 20-40 | 30-50 |
| Stable speed | s.p.m | 50 | 35 | 35 | 30 | 30 | 30 | ||||||
| Stroke | mm | 180 | 80 | 200 | 90 | 200 | 100 | 250 | 150 | 250 | 150 | 250 | 150 |
| Die height | mm | 360 | 410 | 460 | 510 | 460 | 510 | 500 | 550 | 500 | 550 | 550 | 600 |
| Slide adjustment | mm | 80 | 100 | 100 | 120 | 120 | 130 | ||||||
| Slide area | mm | 650*470*80 | 700*550*90 | 850*630*90 | 950*700*100 | 1250*750*100 | 1350*800*100 | ||||||
| Bolster area | mm | 1150*600*110 | 1250*800*140 | 1400*820*160 | 1500*840*180 | 1600*860*190 | 1650*900*200 | ||||||
| Shank hole | mm | Φ50 | Φ65 | Φ65 | Φ65 | Φ65 | Φ65 | ||||||
| Main motor | kw | 11 | 15 | 18.5 | 22 | 30 | 37 | ||||||
| Air pressure | kg/cm² | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| Presses dimension（L*W*H) | mm | 1900*1300*3200 | 2300*1400*3800 | 2615*1690*4075 | 2780*1850*4470 | 2910*1950*4500 | 3180*2150*5025 | ||||||
| Die cushion capacity | Ton | 6.3 | 10 | 14 | 14 | 14 | 14 | ||||||
| Stroke | mm | 80 | 80 | 100 | 100 | 100 | 100 | ||||||
| Die cushion effective area | mm² | 500*350 | 650*420 | 710*480 | 810*480 | 710*480 | 710*480 | ||||||
Accessories
Standard Accessories
1. Hydraulic over-load protector
2. Manual operation slide Adjust device(TP below 60 )
3.Electrical driving Slide Adjust device(TP 60 or more )
4. Die height indicator (TP below 60)
5.Die height indicator(TP 60 or more)
6. Balance device
7. Air source receptacle
8. Against over-un safety device
9. Air ejector
10. Maintenance tool box
11. Operation manual
12. Inverter
13. Power supply
14. Auti-vibration press mount
15.7-Inch touch screen, electronic cam
16. Angle display
17. Tonnage measurement and protection devices
18. The bottom dead point detecting
Optional Accessories
1. High-performance wet clutch & brake
2 . Electrical automatic lubrication system
3 . Pneumatic die cushion device
4. Foot, switch
5 .Quick die change device(dielifter, clamp, and die amm sepias)
6. Slide knock-out device
7. Misfeed detection consent
8. Photoelectric safety device
9. Touch pad counter system
10. Automatic feeding device (Feeder, 7.UriCoHerLeveler)
11. Mechanism hand
12. Die room light
Our company can customize the stroke-adjustable punch press according to requirements.
