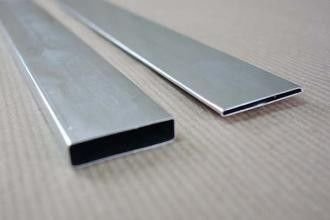

7072 30 × 8.0mm High Frequency Welded Aluminum Flat Tube for Heavy Truck Radiator

High Frequency Welded Aluminium Alloy Flat Tube For Automotive Radiator
7072 30 × 8.0mm High Frequency Welded Aluminum Flat Tube for Heavy Truck Radiator - Image 2
7072 30 × 8.0mm High Frequency Welded Aluminum Flat Tube for Heavy Truck Radiator - Image 3

High Frequency Welded Aluminum Flat Tube for Passenger Vehicle Radiator

We use high quality materials, we have advanced production equipment, strict production requirements, and can customize any size tube to meet your needs at affordable prices.

Precision high-frequency welding device ensures precision welding of precisely formed aluminum strips, welding pointer ensures continuous and precise positioning of the weld and keeps the welder’s energy focused on the weld without leakage or weld offset.

PACKAGING: Strict testing must be done before packing to ensure no leakage.

Send Your Inquiry Now

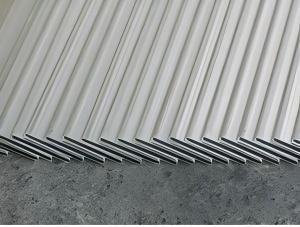

Automotive Radiator/Heavy Truck Radiator High Frequency Welded Aluminum Flat Tube

Our high-frequency welded tubes are widely used in a variety of automobile radiators, heavy truck radiators and other vehicle heat exchangers.

The products are available in a full range of tube sizes, including the most common 16 mm, 26 mm and 32 mm. In addition, we also produce 50 mm and 64 mm aluminum intercooler tubes.

Material: Alloy 4343/3003/7072; 4343/3005/7072; 4343/3003; 4343/3003/4343; 4045/3003; 4045/3003/7072; 3003

3003 aluminum flat tube

High frequency welded aluminum tube for intercoolers

Tube Size Wall thickness
30 × 8.0mm 0.26mm
32 × 7.6mm 0.26mm
36.6 ×10.1mm 0.45mm
50× 7.6mm 0.45mm
50 × 8.08mm 0.50mm
50 × 10.1mm 0.45mm
62 × 10.1mm 0.45mm
64 ×7.6mm 0.45mm
64 × 8.08mm 0.50mm

High frequency welded aluminum tube for radiators

Tube size Wall thickness
16 × 2mm 0.28mm
18 × 2mm 0.30mm
22 × 2mm 0.30mm
26 × 2mm 0.30mm
32 × 2mm 0.30mm

Features of our high frequency welded aluminum tubes

1. High brightness, anti-corrosion, anti-oxidation.

2. Good straightness, no deformation.

3. High strength, good toughness.

4. Neat and smooth section, no burr.

5. High-frequency welding, precise specifications.

6. Aluminum flat tube size can be customized to meet your special requirements.

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.

Looking forward to working with you!
