High Frequency Welded Aluminum Flat Tube for Sale

We use high quality materials, we have advanced production equipment, strict production requirements, and can customize any size tube to meet your needs at affordable prices.

Precision high-frequency welding device ensures precision welding of precisely formed aluminum strips, welding pointer ensures continuous and precise positioning of the weld and keeps the welder’s energy focused on the weld without leakage or weld offset.

PACKAGING: Strict testing must be done before packing to ensure no leakage.

Product Introduction

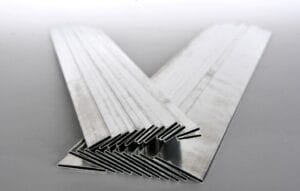

High Frequency Welded Aluminum Flat Tube

Our HF-welded aluminum tubes are engineered for premium automotive radiators, heavy-duty truck charge-air coolers and other vehicle heat exchangers.
Full dimensional range is available, covering the industry standards 16 mm, 26 mm and 32 mm, as well as 50 mm and 64 mm intercooler tubes.

Available clad alloys:
4343/3003/7072 | 4343/3005/7072 | 4343/3003 | 4343/3003/4343 | 4045/3003 | 4045/3003/7072 | bare 3003

All compositions meet ASTM B209/B316, ISO 6361 and OEM corrosion-test specs; tight zinc-diffusion layer guarantees >1 000 h SWAAT performance.

Intercoolers

High Frequency Welded Aluminum Flat Tube

Tube Size	Wall thickness
30 × 8.0mm	0.26mm
32 × 7.6mm	0.26mm
36.6 ×10.1mm	0.45mm
50× 7.6mm	0.45mm
50 × 8.08mm	0.50mm
50 × 10.1mm	0.45mm
62 × 10.1mm	0.45mm
64 ×7.6mm	0.45mm
64 × 8.08mm	0.50mm

Radiators

High Frequency Welded Aluminum Flat Tube

Tube size	Wall thickness
16 × 2mm	0.28mm
18 × 2mm	0.30mm
22 × 2mm	0.30mm
26 × 2mm	0.30mm
32 × 2mm	0.30mm

Features

High Frequency Welded Aluminum Flat Tube

1. High brightness, anti-corrosion, anti-oxidation.

2. Good straightness, no deformation.

3. High strength, good toughness.

4. Neat and smooth section, no burr.

5. High-frequency welding, precise specifications.

6. Aluminum flat tube size can be customized to meet your special requirements.

Affordable High Frequency Welded Aluminum Flat Tube

We use high quality materials, we have advanced production equipment, strict production requirements, and can customize any size tube to meet your needs at affordable prices. Precision high-frequency welding device ensures precision welding of precisely formed aluminum strips, welding pointer ensures continuous and precise positioning of the weld and keeps the welder's energy focused on the weld without leakage or weld offset. PACKAGING: Strict testing must be done before packing to ensure no leakage.
