Description
Device Description
| Heating Method | Resistance Heating | Heating Element | Resistance Wire |
|---|---|---|---|
| Type | Resistance Furnace | Power (kW) | 700 |
| Cooling Method | Water Cooling Or Air Cooling | Use | Aluminum-aluminum Welding, Copper-copper Welding, Etc |
| High Light | 700 KW Aluminum Brazing Furnace, 1000mm mesh belt furnace brazing equipment | ||

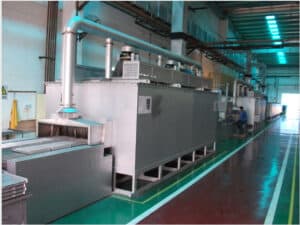

700KW Continuous Aluminium Radiator Brazing Furnace
Mesh Belt Conveyor furnaces are specifically designed to service a wide range of heat treatment processes, such as Hardening, Carburising, Carbonitriding, Nitriding, bright Annealing, Tempering, Isothermal Annealing, and Stress Relieving. The production line is equipped with a loading machine, pre-washing machine, carburizing quenching furnace, after-cleaning machine, tempering furnace, etc.
Technical Parameters
Product specifications
| Place of Origin: | China | Warranty: | 1 Year |
| Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
| Type: | Resistance Furnace | Applicable Industries: | Manufacturing Plant |
| Usage: | Heat Treatment Furnace | Muffle length: | 10m |
| Brand Name: | DaG MC | Mesh belt speed: | 200-1000mm, depending on furnace size |
| Voltage: | Requirement | Rated working temperature: | 650-degree celsius |
| Dimension(L*W*H): | Custom Made | Cooling method: | Water cooling or air cooling |
| Certification: | CE | Protective atmosphere: | nitrogen |
| Power (kW): | 700 | Energy medium: | electricity |
| Brand: | DaG MC | Power(W): | Adjustable |
| Weight: | 2T-35T |
Product technical parameters
| Mesh belt operating surface height | 900mm |
| Normal operating temperature | 600～650℃ |
| Furnace temperature uniformity | ±3℃ |
| maximum service temperature | 700℃ |
| effective working size | 1000mm(Mesh belt width)×250mm(Height of mesh belt) |
| The channel size | 1050mm×300mm(Straight edge height) |
| Temperature control zone | 6 points in Section 6 of Section 3 (temperature measurement) |
| Temperature measuring point layout | The upper and lower of each section + furnace temperature measurement |
| design power | 240KW±10% |
| Temperature control mode | PID, The work pressure regulating |
| heating mode | resistance wire |
| length of the heating zone | 6M |
| conveying chain | SUS316L, Wire Φ 3 mm, wear silk Φ 3.5 mm |
Product advantages
1). Driving system of mesh belt: Driving the stainless steel roller with high-temperature resistance through the chain wheel to circulatory drag mesh belt move into the chamber, which can expand the service life of the mesh belt and Reduce furnace heat loss while improving higher thermal efficiency.
2). The furnace is equipped with a fan to ensure uniform temperature and protect the evenly dispersed (carburizing) atmosphere, which can improve the carburizing speed and workpiece quality.
3). On the rear of the furnace, equipped with an exhaust fan for timely discharge of waste gas, improved the workpiece surface gloss.
4). The bottom of the furnace body is equipped with a slag removal mouth, which is convenient for cleaning up the slag.
5). The new sealing design of the furnace door can save 55-65% of atmosphere consumption, deep permeation, and 30-40% higher efficiency than before under pressure at ≥10-100Pa.
