Collecting Pipe Auto Punching Forming Machine

Collecting Pipe Auto Punching Forming Machine

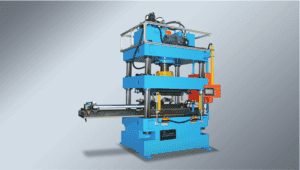

Condenser Header Pipe Punching Machine
Condenser Header Pipe Punching Machine
Condenser Header Pipe Punching Machine
Collecting Pipe Mold

Automatic Condenser Header Pipe Punching Machine

Advanced CNC header punching machine for automotive parallel flow condenser manufacturing. Features four-post hydraulic press construction with rapid die changeover system, optimized for high-volume aluminum header tube processing. Delivers precision-perforated round and custom-shaped headers essential for modern heat exchanger production lines.

Engineered and manufactured by DAG Company in Shenzhen, China, this machine delivers exceptional value through cost-effective pricing and complete customization flexibility. We provide comprehensive turnkey solutions backed by professional technical support and reliable worldwide shipping. Inquiries welcome!

Send Your Inquiry Now

Machine Description

Machine Name: Radiator Making Machine Working Principle : Hydraulic; 4-column Structure; PLC Controlled
Driving Force: Hydraulic And Pneumatic Type: Servo
Power: 7.5KW Weight: 4Ton
High Light: radiator production line, radiator tube-making machine

Collecting Pipe Auto Punching Forming Machine

This specialized machine is engineered for parallel flow condenser header production, processing aluminum tubes via automated punching. It serves as critical equipment in parallel flow condenser assembly lines, manufacturing both circular headers and profiled/shaped headers with high accuracy.

1. Drive System: High-performance hydraulic power unit with integrated automatic lubrication

2. Frame Construction: Robust four-column structural design ensures maximum stability and punching precision

3. Quick-Change Tooling: Equipped with die assembly/disassembly slide rails for rapid mold replacement and minimal downtime

4. Processing Method: Precision punching operation for consistent hole quality

Machine Technical Parameters

Automatic Condenser Header Tube Punching Forming Machine

Working method manual feeding, automatic forming, and discharging
Collecting pipe to be produced per time One pipe
Pipe outer diameter* wall thickness according to the customer’s requirement
Pipe effective length 200-650mm
Slot center-to-center distance and tolerance 5~12mm; ±0.05 mm
Slot forming time 20 seconds per pipe
Total power 7.5KW
Hydraulic system working pressure 8-21Mpa
pneumatic system working pressure 0.5-0.8Mpa
overall dimension 2500mm×2100mm×2750mm
equipment weight 4T
Condenser Header Pipe Punching Machine

This specialized header punching machine performs precision hole punching on aluminum tubes to manufacture headers for parallel flow condensers. As essential equipment in parallel flow condenser production lines, it efficiently produces both circular headers and profiled/shaped headers.

Product SKU: 3

Product Brand: DAG

Editor's Rating:
5

Additional information

Product Origin

CHINA

Brand Name

DaG MC

Model Number

DG-CP

MOQ

1

Lead Time

60 day

Payment

30% DEPOSIT,70% BEFORE DELIVERY

Packaging Details

Wooden boxes that meet international export standards

Supply Ability

10sets/month

Reviews

There are no reviews yet.

Be the first to review “Collecting Pipe Auto Punching Forming Machine”

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours. Looking forward to working with you!
