Machine Description
This car aluminum radiator fin machine is engineered and manufactured by Shenzhen DAG Company in China, delivering exceptional value through cost-effective pricing and complete customization flexibility. We provide comprehensive turnkey solutions backed by professional technical support. With reliable worldwide shipping and dedicated service, we welcome your inquiries for customized manufacturing solutions.
| Core Components | PLC, Motor |
| Condition | New |
| Height Tolerance | +0.03mm, – 0.01mm |
| Fin Width | 8~200mm (customized) |
| Fin Pitch Tolerance | +/-0.10mm |

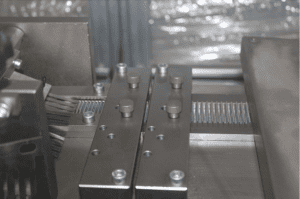

Car Aluminum Radiator Fin Machine
This advanced machine integrates comprehensive automation functions including decoiling, precision tension control, servo feeding, automatic lubrication, fin rolling, fin securing, automatic cutting, material shortage detection, blade jam detection, and overload protection with auto-shutdown.
Intelligent Control System:
PLC-based architecture with variable frequency drive, precision servo feeding, and intuitive touchscreen HMI ensures streamlined, efficient operation with minimal training required.
Rapid Tool Change Design:
Quick-change tooling enables fast, seamless switching between different fin specifications, maximizing production flexibility and minimizing downtime.
Machine Technical Parameters
| Power supply | 3Phase, 380V 50HZ (customized) |
| Total power | 4.5KW |
| Working speed | 0-100m/min stepless control |
| Fin production efficiency | 1000-4000 fin convolutions per minute; regulation by inverter control; |
| Cutting frequency | max 60 times/ min |
| Protection measure | organic glass cover around the main machine body |
| Cutting accuracy | servo control; ±0 fin; cut at the crest; |
| Equipment Weight | About 1.8Ton |
| Equipment overall size | 4000X900X1800M |
| Air source requirement | air pressure >0.5Mp, Q>0.1m3/ min, dry and cool compressed air |
| Aluminum foil size | ID: 200±20 mm (adjustable);OD: ≤1200mm |
Product features:
1. It can have multiple blades and do a maximum of 8-10 combination cutting.
2. Automatically cutting and counting
3. Size can be customized
4. It can be programmed.
5. It can have shields or no shields
6. high precision, high speed
7. can be customized according to customer requirements of different shapes of fin
Customized Car Aluminum Radiator Fin Machine
This specialized fin forming machine is engineered for the continuous precision roll forming of aluminum foil coils into corrugated fins, specifically designed for high-efficiency heat exchangers, automotive radiators, and condenser/evaporator applications. Our Aluminum fin forming machine: high-speed, precision, cost-effective. Complete technical support & global shipping. Professional solutions. Inquire now!
