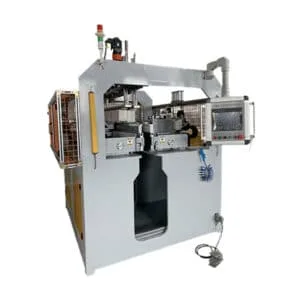

Car Plastic water chamber Buckler Crimping Machine

Plastic water chamber Buckler Crimping Machine
Plastic water chamber Buckler
Plastic water chamber Buckler
Plastic water chamber

The plastic water chamber Buckler consists of a long-side and short-side clinching structure. It clamps the header plate teeth firmly on the edge of the plastic tank, allowing the core and tank to be tightly assembled together. Therefore, it creates a sealed space between the crimped plastic tank and the core.

Send Your Inquiry Now

Description

Machine Description



Plastic water chamber Buckler Crimping Machine

  • To clinch the radiator header plate, gasket, and plastic tank together.
  • It consists of a long-side and short-side clinching structure. The header plate teeth are clamped firmly on the plastic tank edge, ensuring that the core and plastic tank are tightly assembled. This creates a sealed space between the crimped plastic tank and the core.



Machine Technical Parameters



Workpiece Dimension Core height direction:350-950mm

Core width direction:100-800mm
Crimping Way Internal
Machine running time Around 35 s
Drive Mode Pneumatic/ Servo
Overall Dimension 1800*1300*1900mm
Weight 3.2 T



Additional information

Product Origin

CHINA
Brand Name

DaG MC
Model Number

DG-PC
MOQ

1
Lead Time

45 day
Payment

30% DEPOSIT,70% BEFORE DELIVERY
Packaging Details

Wooden boxes that meet international export standards
Supply Ability

10sets/month

Reviews

There are no reviews yet.

Be the first to review “Car Plastic water chamber Buckler Crimping Machine”

Your email address will not be published. Required fields are marked *

3 × 1 =

Related products

DaG radiator LOGO

DAG is your first choice if you want to set up a radiator factory at your location. We will provide you with the best services.

PRODUCT

CONTACTS

  • Whatsapp : +8618938889043
  • WeChat: lynnlincat1688
  • E-mail: lynnlin@dagmachinery.com

Send Your Inquiry Today

Disclaimer: We promise not to automatically push advertising emails for you.

We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

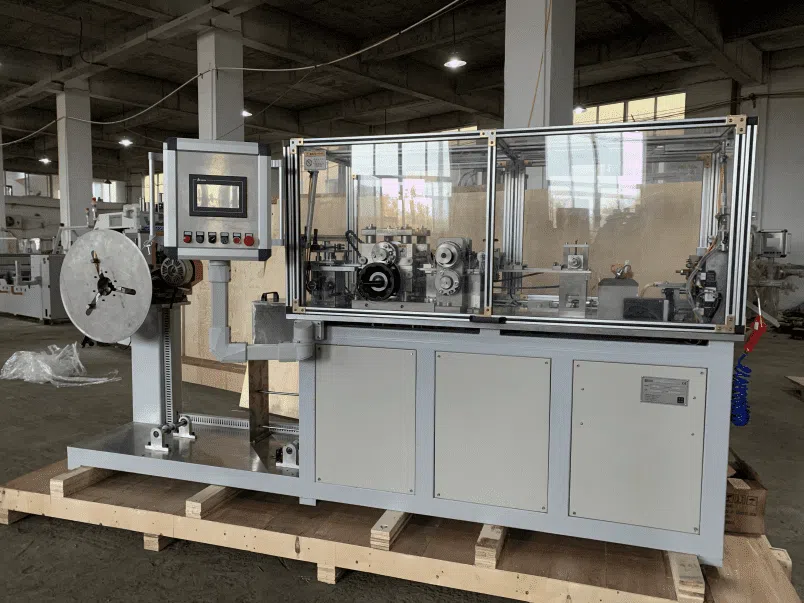

Copper Radiator Fin Machine

PLC Copper Radiator Fin Forming Machine

Condition:New
Fin Material:Copper
Speed:100 M/min
Working Principle:Fin Rolling Mechanism

We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

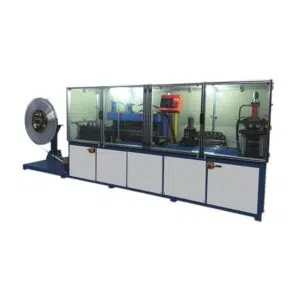

Side Plate Auto Forming Machine

Side Plate Auto Forming Machine

Condition:New
Workpiece specification:as per drawing’s requirement
Workpiece length:100-1000mm
Production capacity:180 pcs/hour
Drive mode:Servo+Hydraulic+Pneumatic

We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

150-600mm/Min Aluminium Radiator Brazing Furnace

150-600mm/Min Aluminium Radiator Brazing Furnace

Height Of Brazing Furnace:250mm
Width Of Brazing Furnace:1000mm
Mesh Belt Operating Surface Height:900mm
Length Of Brazing Furnace:6000mm
Working Station Size:1000mm×250mm
Speed:150～600mm/min



We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

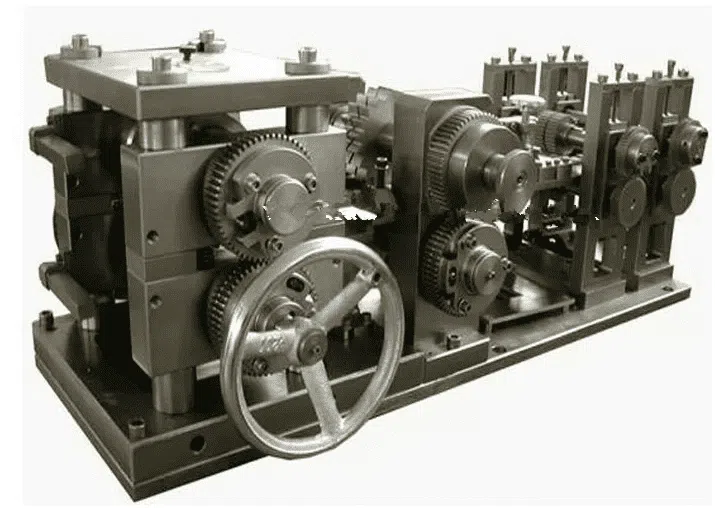

Auto Radiator Fin Making Machine

280 M/Min High Speed Auto Radiator Fin Making Machine

Condition:New
Fin Making Machine :280m/min
coil inner diameter:300mm
Fin cutting frequency: max 80 times/min;

We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

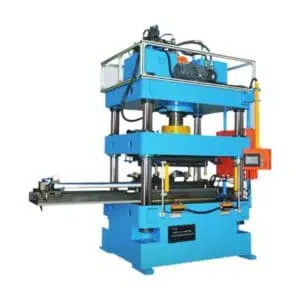

Condenser Header Pipe Punching Machine

Condenser Header Pipe Punching Machine

Pipe effective length: 200-650mm
Slot forming time: 20 seconds per pipe
Hydraulic system working pressure: 8-21Mpa
pneumatic system working pressure: 0.5-0.8Mpa
overall dimension: 2500mm×2100mm×2750mm

We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

Radiator Fin Forming Machine

Radiator & Condenser Fin Making Machine

Core Components:PLC, Motor
Condition:New
Height Tolerance:+0.03mm, – 0.01mm
Fin Width:8~200mm (Customized)

We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

Aluminum Radiator Fin Forming Machine

Radiator & Condenser Fin Making Machine

Core Components:PLC, Motor
Condition:New
Height Tolerance:+0.03mm, – 0.01mm
Fin Width:8~200mm (Customized)

We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

PLC Controlled Intercooler Core Assembly Machine

Intercooler Core Assembly Machine

Core Height:350-780mm (Customized)
Core Thickness:16~48mm (Customized)
Clearance Between Fin & Header Plates:2mm (1.0mm)
Built Core Width Error:±1.5mm

We will contact you within 4 hours, please note that the email suffix is “@dagmachinery“.

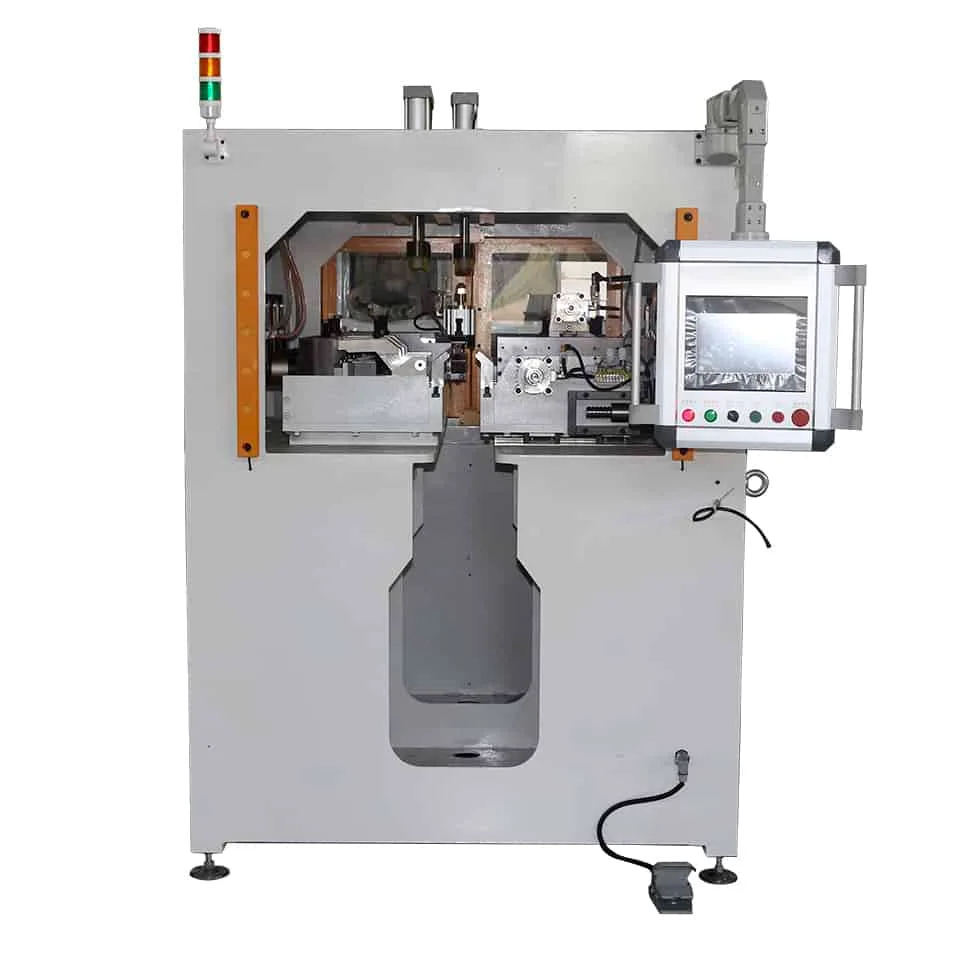

1.5 KW Radiator Plastic Tank Crimping Machine
