Product Introduction
| Product Name: | Aluminum Radiator Brazing Furnace | Energy: | Electric |
| Muffle Length: | 6 Meter | Mesh Belt Wide: | 1200 Mm |
| Mesh Belt Height: | 250 Mm | Speed: | 200 – 1000 Mm/min |
| High Light: | continuous brazing furnace, furnace brazing equipment | ||

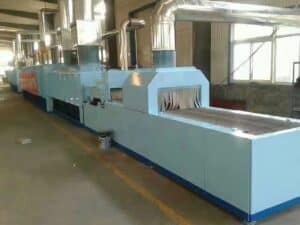

6 m Automotive Aluminum Radiator Brazing Furnace
The line integrates flux-spray booth, drying oven, pre-brazing vestibule, 6-metre brazing furnace, water-cooling tunnel, post-brazing vestibule, air-knock-off blow-off station, variable-speed drive, full PLC electrical package, and dedicated nitrogen inlet/outlet manifolds.
Operating under high-purity nitrogen, the furnace performs non-corrosive flux brazing of aluminum assemblies: automotive radiators, tube-and-fin condensers, parallel-flow condensers, evaporators, laminated evaporators, aluminum oil coolers and similar heat exchangers.
Technical Parameters
6 m Automotive Aluminum Radiator Brazing Furnace
Fluxing Chamber of CAB aluminum brazing furnace
| Overall dimension: 2500mm(L)×1190mm(W)×2030mm(H) |
| Effective driving chain width: 800mm(W)(material: 1Cr18Ni9Ti) |
| Driving belt speed adjustment range: 100—500mm/min(Delta inverter with frequency conversion speed adjustment and torque control) |
| Driving power N﹦1.1KW |
Drying Furnace
| Furnace type: conveyor belt type continuous furnace ( belt width: 800mm) |
| Max working temperature: 350℃ |
| Power: 68KW |
| Temperature control zone: 1 zone |
| Temperature control: solid-state PID control; |
| Temperature controller: SHIMADEN, Japan; |
| Effective size: 800mm(W)×200mm(H) |
| Overall dimension: 4000mm(L)×1670mm(W)×1700mm(H), 1 set |
Brazing Furnace
| Overall dimension: 6000mm(L)×1870mm(W)×1700mm(H) |
| Casing: 1.5mm thick steel plates with reinforcing sectional steel |
| Heating component: OCr25Al5 heating components ( mounted above and below the muffle with easy replacement), 1 set |
| Muffle: upper SUS-304, lower SUS-316L(thickness: 8mm), 1 set |
| (2 pieces of nitrogen discharge pipe inside the muffle) |
| Thermal coupling: 1 piece of thermal coupling ( measuring the heart temperature)(Nicr-Nisi), 1 set |
| Refractory lining: high-temperature fiber and fiber products |
Automotive Aluminum Radiator Brazing Furnace for Sale
The radiator aluminum brazing furnace works under a nitrogen-protective atmosphere and welds aluminum workpieces with a non-erosive brazing agent. Objects can be brazed: automobile radiator, tubular type automobile condenser, parallel flow type condenser, evaporator, overlapping type evaporator, aluminum oil cooler, etc. Designed & manufactured by DAG Shenzhen— full customizable, turnkey installation, worldwide commissioning, 24/7 technical support,affordable prices ,inquiries welcome.
Product SKU: 2
Product Brand: DAG
