Description
| Name: | Aluminium Radiator Brazing Furnace | Mesh Belt Speed: | 200-1200mm Per Minute |
|---|---|---|---|
| Brazing Area Length: | 12m | Drying Oven Energy: | Gas |
| Brazing Temperature: | 650 Degree Celcius | Drying Temperature: | 230 Degree Celcius |
| High Light: | continuous brazing furnace, furnace brazing equipment | ||

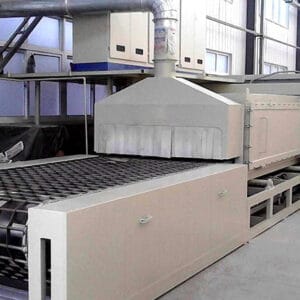

CAB Electric Nocolok Brazing Furnace With Gas
The Mesh Belt Brazing Furnace Continuous Aluminum Brazing Treatment for Automobile Radiators is comprised of the following parts: a round-shaped flux, a flux mixing and supply device, the drying oven, the front curtain chamber, the preheating oven, the brazing oven, the air cooling chamber, the rear curtain chamber, the air blast chamber, the driving system, the water and gas pipeline, and the electrical control system.
Technical Parameters
General Parameters
| Mesh belt operation surface height (to the ground) | 900mm |
| Mesh belt speed | 300～1200mm/min (inverter control) |
| Effective working size | 1200mm(width)×220mm (height) |
Drying oven technical parameters
| Overall dimension | 7000mm(L)×2300mm(W)×2400mm(H) |
| Outer layer | steel plate, Q235, δ=6mm |
| Inner layer | stainless steel plate, δ=3mm (inner layer and air returning hood) |
| Heat preservation layer | silicate aluminum fiber |
| Ground foot | 100×50 channel steel |
| Hot air circulation fan | 5.5KW, 4-grade, 2 sets |
| Temperature sensor | K type (temperature controller controlling the air/gas proportional valve) |
| Max design temperature | 350℃(service temperature 180～250℃) |
| Heating element | stainless steel U-type heating tube |
| Heat source | Two natural gas burners (2 zone control) |
| Single-burner gas consumption | 13Nm3/h～33.8Nm3/h |
| Burner output power | 130-338KW |
| Temperature control | PID controller to control air-gas proportional valve |
- The drying oven well dries the parts, and the dried parts are an important precondition of a high-quality brazing process.
- The drying oven is an essential part of the aluminum radiator brazing furnace.
- The drying oven works with gas to save operational costs for the overall CAB brazing furnace line.
Parameters of Brazing Oven
| Furnace type | mesh belt conveyance furnace |
| Overall dimension | 10000mm(L)×2070mm(W)×1800mm(H) |
| Max design temperature | 700℃ |
| Heating element | spiral shape resistance wire |
| Heating power | 230KW |
| Heating zone | Three zones, 6 points |
| Temperature control | intelligent temperature controller with PID regulation; PLC control |
| Temperature rising method | direct temperature rising |
| Effective size | 1200mm×220mm (including brazing fixture) |
- The brazing oven is the critical part of the aluminum radiator brazing furnace line.
- To save electricity consumption, the furnace uses natural gas heating to preheat the stove to a temperature of 500℃, leaving more time for brazing.
Equipment Advantages
1) The CAB aluminum radiator brazing furnace adopts high-performance porcelain fiber cotton material for heat preservation.
The furnace can rise to 630℃ from the ambient temperature in around 2 hours.
2) The muffle of the brazing oven is once-formed by the large size bending machine and is made from Sweden 316L steel plate and
304 steel plate. A 10M muffle is formed by one-time bending, and only one v-slot is at the bottom. The one-time
Forming muffles could reduce the misshapen effect at welding and deformation during heating.
3) The furnace zones are divided based on the upper, lower, rear, and back areas. The heating power is adjusted through the PID
regulator so that the stove can achieve an ideal temperature uniformity of ±1℃. The brazing area could achieve a temperature
uniformity of ±2℃ to meet the brazing requirements.
4) The temperature controller has the PID regulation function to achieve a smooth temperature rise. Also, the temperature controller
has an over-temperature alarm. The mesh belt is steplessly regulated through the inverter. The driving mechanism is started up in
the acceleration manner and stopped in the deceleration manner to reduce the tension of the mesh belt.
5) the aluminum radiator brazing furnace (CAB) has a complete control system integrating intelligent control,
alarm, and protection systems. The real-time temperature recording function provides the process data of different products.
6) The area of the fluxing chamber which contacts the flux is made of stainless steel material. The two side walls of the fluxing
chamber are both set with an observation window to observe the fluxing performance. The fluxing nozzles have a 90º fan-shape
spraying to prevent nozzle blockage. There is a filtering net for recycling the flux to avoid damage to the fluxing pump.
7) The dry air cooling room is set with a slag-cleaning chamber. A side door of the slag cleaning chamber allows
the worker to clean the flux slags. Compared to the traditional water cooling chamber, the dry cooling room doesn’t risk corrosion because of water and deformation of the chamber because of cold and heat. There is no need for cooling water.
8) power at the temperature rising stage: 100%; power at the brazing stage: ≤60%
