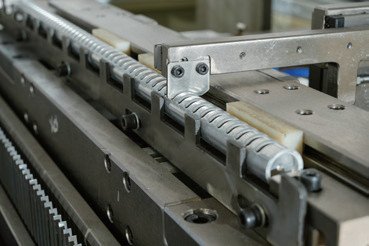

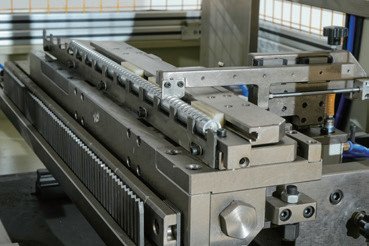

Automatic Dropping Tube Condenser Core Builder Machine

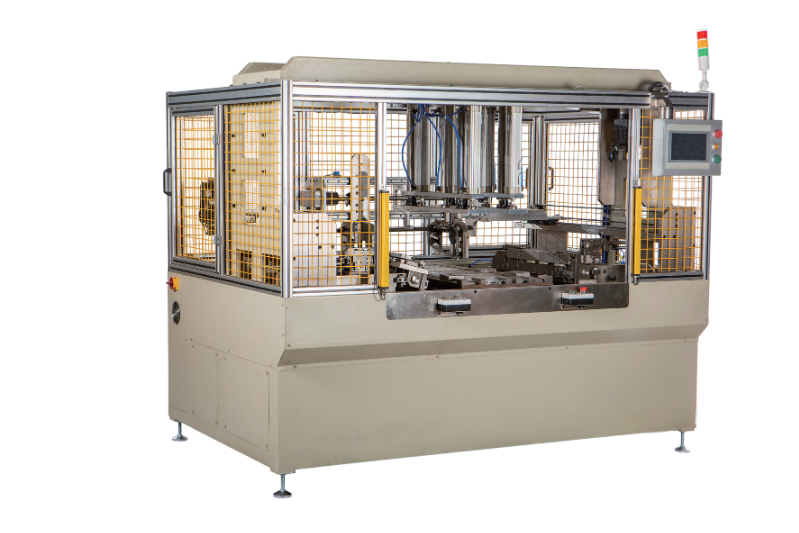

AUTO Dropping Tube Car Condenser Core Builder Machinery

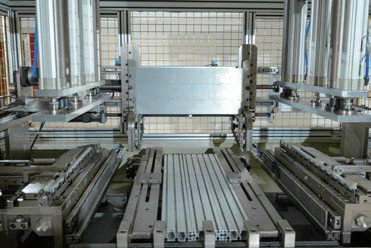

Dropping Tube Condenser Core Builder Machine

This equipment is a special equipment for assembling the core of an automobile condenser. There is a pipe laying workbench base in the middle of the equipment. By replacing the pipe laying workbench, the cores of different sizes can be assembled. It is equipped with an automatic pipe laying mechanism, chain comb teeth and formed material needles, which are easy and quick to replace. The main device adopts a servo drive, which makes the equipment’s performance stable and reliable. Affordable price, welcome to inquire! Welcome to buy!

Send Your Inquiry Now

Machine Introduction

The equipment is special equipment for the automobile condenser core. The middle of the equipment is provided with the base of the laying bench, which realizes the assembly of cores of different sizes. With an automatic pipe distribution mechanism, chain comb teeth and molding material needle combination, convenient and quick replacement. The main device adopts a servo drive to make the equipment’s performance stable and reliable.

AUTO Dropping Tube Car Condenser Core Builder Machinery

Machine Parameters

Core height (distance between main boards) 300mm-800mm
Core width (main board length) 260mm-700mm
Core thickness 12mm-26mm
Pressure of pneumatic system 0.4Mpa-0.7Mpa（One stabilizing gas tank）
Raw No. One
Power Single phase 380 (V)
Dimension 2.2（T）
Equipment weight(L×W×H) 2300mm× 1800mm×2200mm
