Automatic Dropping Tube Condenser Core Builder Machine

Machine Introduction

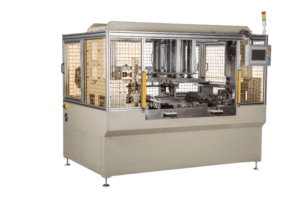

Automatic Dropping Tube Condenser Core Builder Machine

Purpose-built for automotive condenser cores, this fully automatic assembler delivers high-speed, zero-damage loading of aluminum micro-multi-port tubes onto fins and headers.

Key Features

1. Center-mounted, width-adjustable tube-deck base (min 250 mm – max 1 200 mm) handles all popular OEM core sizes without fixture change.

2. Servo-driven tube-drop magazine indexes and places each tube to ±0.2 mm pitch accuracy; cycle ≤ 1.1 s per tube.

3. Quick-swap comb-and-pin cassette accepts 8–32 mm fin pitch; tool-less changeover < 3 min.

4. Low-friction chain comb guides tubes into pre-louvered fins, eliminating fin bruising and maintaining heat-transfer performance.

5. Allen-Bradley or Siemens servo pack with closed-loop tension control guarantees ±0.05 mm repeatability and 99.5 % first-pass yield.

Customization & Support

1. Deck length, magazine capacity and comb profile engineered to your tube drawing.

2. Remote FAT, on-site SAT, operator training, lifetime spare-parts program.

3. Export plywood crate, FOB/CIF/DDP terms, 4-week standard lead time.

Machine Parameters

Automatic Dropping Tube Condenser Core Builder Machine

Automatic Condenser Core Builder Machine for Sale

This equipment is a special equipment for assembling the core of an automobile condenser. There is a pipe laying workbench base in the middle of the equipment. By replacing the pipe laying workbench, the cores of different sizes can be assembled. It is equipped with an automatic pipe laying mechanism, chain comb teeth and formed material needles, which are easy and quick to replace. The main device adopts a servo drive, which makes the equipment’s performance stable and reliable. Tailored to Your Specs, Priced to Your Budget, Shipped Worldwide. DAG Worldwide Radiator Machinery Exporter
