Machine Description
| Name: | Radiator Plastic Tank Crimping Machine | Power Supply: | 3P 380V 50HZ (customized) |
| Core Components: | PLC, Motor | Air Source: | 0.6MPa |
| Radiator Core Width: | 350-950mm | Header Plate Width: | 30-120mm (customized) |
| High Light: | Aluminum Radiator Plastic Tank Crimping Machine, Radiator Clinching Machine | ||

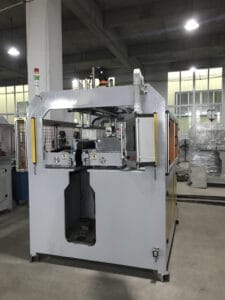

Aluminum Radiator Plastic Tank Crimping Machine
The radiator plastic tank crimping machine is engineered to deform the header plate tabs (teeth) around the plastic tank flange, creating a permanent mechanical lock that securely fastens the tank to the radiator core assembly.
This essential radiator manufacturing equipment is also known as: Tank Crimping Machine, Water Tank Crimping Machine, Radiator Water Tank Crimping Machine, Plastic Water Tank Crimping Machine, and Radiator Assembly Press.
Machine Technical Parameters
| Radiator height | 350-950mm |
| Radiator max width | 100-800mm |
| Crimping way | stepping way |
| Production capacity | about 24 cores per hour |
| Driving force | servo + pneumatic |
| Crimped teeth quantity | max 100 pieces |
| Total power | 1.5kw |
| Voltage grade | 3P 380V 50HZ |
| Overall dimension | 2200×2000×1900mm (L*W*H) |
| Weight | 1.8Ton |
Car Aluminum Radiator Plastic Tank Crimping Machine
Engineered to crimp the header plate tabs, this machine securely locks the plastic tank onto the radiator core assembly. This advanced servo-driven plastic tank press delivers precision crimping force control and repeatable accuracy across diverse product specifications, making it ideal for high-mix production environments. -Manufactured in China to international quality standards. -Fully customizable specifications for your production needs. -Complete engineering solutions and dedicated technical support included. -Competitive factory-direct pricing. -Request a detailed quotetoday.
