Product Introduction

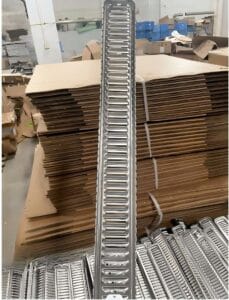

Truck Aluminum Radiator Header Plates
Heavy-duty header plates engineered for commercial-truck, bus and off-highway radiator cores.
1. Material: 3-ply 4343/3003/7072 aluminum; clad layer melts at 605 °C to create a self-healing fillet that locks 16–90 port flat tubes under 1.4 MPa burst pressure .
2. Thickness & Size: 1.5–3.0 mm gauge, widths to 800 mm, length cut to order; CNC-pierced hole pitch 22 × 2 mm standard, ±0.01 mm true-position for 4-row truck cores .
3. Post-braze strength: 95 MPa yield, withstands 22 N·m tank-bolt torque and 250 kPa cyclic pressure surge common in Class-8 cooling loops.
4. Corrosion: >1 000 h SWAAT salt-spray; optional zinc-diffused layer for glycol-based long-life coolants.
5. Finish: degreased or anodized, interleaved & plywood-crate packed.
Features： The gaps between the holes on the radiator plate are the same. High Strength, Heat Resistance, Corrosion Resistance
Application
Aluminum Radiator Header Plates
Ideal for commercial trucks, buses and Heavy-duty and electric vehicle radiators; compatible with plastic or aluminum tanks, NOCOLOK® and vacuum brazing lines.
Global shipping: FOB, CIF or DDP options; free sample set for serious buyers
Truck Aluminum Radiator Header Plates
Precision-stamped from high-grade AA3003+4343 clad aluminum, the header plate delivers exceptional rigidity and salt-spray resistance for long-term reliability under severe thermal cycles. Uniform CNC-pierced ports guarantee leak-free tube insertion and rapid brazing on CAB or NOCOLOK® lines. Free Samples, Customizable, Low MOQ, Factory-Direct Pricing, Affordable price, Global OEM/Aftermarket Supply.—Request a Quote Today.
Product SKU: 99999
Product Brand: DAG
