Product Overview

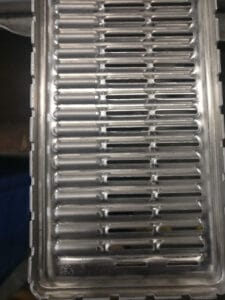

Multi-row Aluminum Radiator Core Head Plates
The Multi-row Aluminum Radiator Core Head Plate is a high-performance, fixed-dimension header plate engineered for OEM and high-volume aftermarket radiator production. Designed for universal multi-row compatibility, this single plate pattern accommodates 2-row, 3-row, and 4-row core configurations through strategically engineered tube slot geometry.
Manufactured from premium 3003 aluminum alloy with precision CNC stamping, it provides reliable, leak-free performance for passenger vehicles, commercial trucks, and industrial cooling systems where standardized dimensions and cost-effectiveness are paramount.
Key Features & Benefits
Multi-row Aluminum Radiator Core Head Plates
Multi-row Universal Design
1. Single Pattern Efficiency: One header plate design works for 2-row, 3-row, and 4-row radiator cores
2. Staggered Tube Slots: Optimized geometry ensures proper tube alignment across all row configurations
3. Reinforced Rib Structure: Internal cross-ribbing prevents deflection under high pressure (tested to 4.0 bar)
4. Flow Optimization: Precision-engineered internal channels promote equal coolant distribution across rows
Premium Material & Construction
1. Material: High-grade 3003-H14 aluminum alloy with 4343/3003/7072 clad composite option
2. Thickness: Standard 1.8mm for optimal strength-to-weight balance (custom 1.5-2.5mm available)
3. Surface Treatment: Hard anodized finish (25μm) with hydrophilic coating for superior corrosion resistance
4. Lightweight: 35% weight reduction vs. traditional steel plates (avg. 0.65kg vs. 1.0kg)
Precision Manufacturing
1. CNC Stamping: High-precision stamping dies ensure ±0.05mm dimensional accuracy
2. Burr-Free Edges: Advanced deburring process eliminates assembly damage and ensures worker safety
3. Consistent Hole Patterns: Uniform tube slot spacing and TAB heights guarantee perfect core alignment
Technical Specifications
Multi-row Aluminum Radiator Core Head Plates
1. Material: 3003-H14 Aluminum Alloy ; 4343/3003/7072 clad composite (Customizable)
2. Temper: H14 (1/2 hard) ; O, H12, H16 available (Customizable)
3. Thickness: 1.8mm (±0.1mm tolerance) ; 1.5mm, 2.0mm, 2.5mm (Customizable)
4. Width: 100mm – 1400mm (fixed) ( Per customer drawing )
5. Length: 100mm – 6000mm ( Per customer drawing )
6. Row Compatibility: 2-row, 3-row, 4-row (single pattern) , 5-row, 6-row heavy-duty versions (Customizable)
7. Tube Pitch: 22mm (standard), 16mm, 26mm ( Custom pitch spacing )
8. Operating Pressure: Rated 4.0 bar (burst pressure: 15 bar) ; Up to 5.0 bar high-pressure version (Customizable)
9. Temperature Range: -40°C to 180°C continuous ; 200°C high-temp version (Customizable)
10. Surface Finish: Hard anodized 25μm + hydrophilic ; Various color anodizing (Customizable)
11. Tensile Strength: ≥165 MPa | ≥180 MPa (special alloy)
12. Yield Strength: ≥140 MPa | ≥150 MPa |Flatness: ≤0.2mm per 100mm length | ≤0.1mm precision version
Applications
Multi-row Aluminum Radiator Core Head Plates
Primary Use Cases
1. OEM Manufacturing: Direct supply to Tier 1 radiator manufacturers for new vehicle production
2. Aftermarket Replacement: Standardized repair parts for common multi-row radiator models
3. Commercial Vehicles: Heavy-duty trucks, buses, construction equipment radiators
4. Industrial Cooling: Generators, compressors, hydraulic oil coolers
5. Performance Radiators: Fixed-dimension performance radiators for tuned vehicles
Typical Vehicle Applications
1. Light Vehicles: Toyota (Camry, Corolla), Honda (Accord, Civic), Ford (F-150, Mustang)
2. Commercial: Freightliner, Kenworth, Peterbilt, Volvo trucks
3. European: VW/Audi (2.0T/3.0T), BMW (3/5/7 Series), Mercedes (C/E-Class)
4. Asian: Nissan (Frontier, Titan), Hyundai/Kia (SUV models)
For custom specifications or technical consultations, please provide your radiator core drawings or sample plates for rapid quotation.
Multi-row Car Aluminum Radiator Core Head Plates
This radiator plate has high heat dissipation capacity and is the perfect solution for demanding thermal management needs. Its innovative design ensures efficient cooling and is ideal for a variety of industrial and automotive applications. For custom specifications or technical consultations, please provide your radiator core drawings or sample plates for rapid quotation. Free Samples. Low MOQ. Factory-Direct Pricing. Affordable Price. Request a Quote Today.
Product SKU: 99999
Product Brand: DAG
