Machine Description
| Product Name: | Radiator Making Machine | Principle: | To Expand Tube Inside To Form A Tight Contact Between Tubes And Fins |
| Expansion Length: | 300-1000mm | Working Force: | Hydraulic And Mechanical |
| Warranty: | 1 Year | ||
| High Light: | radiator production line, radiator tube-making machine | ||

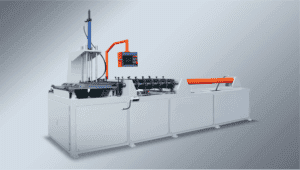

Aluminum Fin Tube Expanding Machine (Mechanical Radiator Tube Expander)
Engineered for high-precision tube expansion in mechanical aluminum radiator production, this machine integrates advanced servo control with robust electrical systems in a compact, space-saving design. The PLC-based control system ensures repeatable accuracy throughout the expansion cycle, while dual-mode functionality (automatic/manual) provides operational flexibility for diverse production requirements.
Key Features
1. Hybrid servo-electric architecture for precise control and energy efficiency
2. Compact footprint maximizes production floor utilization
3. PLC controller with touchscreen HMI for intuitive process management
4. Dual operation modes: Fully automatic and manual control
5. Quick-change tooling system for rapid model changeovers
Manufacturing Excellence
Made in China with CE certification. Fully customizable specifications. Complete technical support and training provided. Competitive factory-direct pricing. Request a detailed quote today.
Machine Technical Parameters
Aluminum Tube Expanding Machine
| Round tube expanded per time | One piece |
| Radiator tube holes per row | ≤20 holes (decided by the customer) |
| Aluminum pipe specification | φ6–φ12mm |
| Expansion length | 300-1000mm (decided by the customer) |
| Processing time | 10-20 seconds |
| Motor power | 7.5kw |
| Hydraulic system pressure | 5-16Mpa |
| Overall dimension | 3000*1450*1700mm |
| Equipment weight | 2.5T |
Applications of Radiator Making Machines
| Auto Radiator Manufacturers | Aluminum Pipe Expansion Machine for Mechanical Radiators in the Auto Industry |
| HVAC Industry | household air Conditions |
| Other heat exchangers | Where an Aluminum Pipe Expansion Machine is required |
Aluminum Fin Tube Expanding Machine
Utilizes high-pressure hydraulic force to internally expand aluminum tubes, creating a permanent mechanical bond that ensures intimate fin-to-tube contact. This critical manufacturing process eliminates thermal resistance gaps, delivering superior heat transfer performance and OEM-quality radiator cores. DAG Aluminum Fin Tube Expanding Machine for Car Radiator: Fully customizable specifications. Competitive factory-direct pricing. Request a detailed quote today.
Product SKU: 5
Product Brand: DAG
