Product Introduction

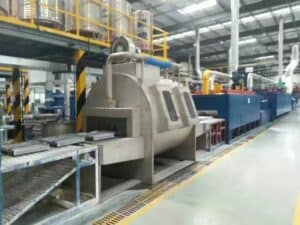

Continuous Aluminum Brazing Furnace
| Dimension(L*W*H) | Custom Made | Usage | Heat Treatment Furnace |
| Power (kW) | 400 | Conveying Belt Speed | 300~1000mm/min, Inverter Control |
| Total Oven Length | 35.5m | ||
| High Light | Continuous Nitrogen Brazing Furance, Car Aluminum Radiator Brazing Furnace, 400KW Aluminum Radiator Brazing Furnace | ||
Purpose-built continuous nitrogen-brazing furnace for high-volume aluminum radiators, intercoolers and condensers.
In-line process flow: load → flux spray → dry → front curtain (N₂) → brazing zone (N₂) → dross removal & N₂ pre-heat → static cooling chamber → rear curtain (N₂) → forced-air cooling → manual unload from conveyor.
With its automotive-grade temperature uniformity, low-oxygen atmosphere, and energy-efficient architecture, this continuous brazing furnace delivers consistent, audit-ready aluminum radiator cores for Tier-1 and OEM production lines worldwide.
Technical Parameters
| Serial number | Name | Length*Width*Height | Material |
| 1 | Spray zone | 7000*1360*250mm | The spray room is made of 304 Stainless steel; The masses are used low-carbon steel for welding |
| 2 | External size of drying furnace | 8000*1850*2000mm | The outside frame is processed and welded from low-carbon steel material |
| 3 | Internal size of drying furnace | 8000*1050*250mm | Internal plate 304 Stainless steel, thickness 2mm |
| 4 | External size of a burning furnace | 10000*2150*1900mm | The outside frame is processed and welded from low-carbon steel material |
| 5 | Internal size of a burning furnace | 1000*1050*250mm | Muffle 316L stainless steel, thickness of 8mm length. Use the whole sheet for bending without splicing |
| 6 | External size of air-cool room | 6000*1360*1900mm | Processed and welded from low-carbon steel material |
| 7 | Mesh belt | Width 1000mm Filament diameter3.2mm | Brazing zone 316L Other parts 304 Stainless Steel |
| 8 | The total length of the equipment | 35.5m |
Continuous Aluminum Brazing Furnace For Sale
A controlled-atmosphere aluminum brazing furnace system engineered for continuous brazing of automotive aluminum heat-transfer components—including radiators, oil coolers, intercoolers, heater-condensers, tube-type condensers, evaporators, parallel-flow condensers, cascade evaporators and air-coolers—under a protective nitrogen atmosphere. This continuous aluminum brazing furnace, designed and manufactured by Shenzhen DAG, can be fully customized to your furnace geometry, production goals, and plant layout. Shipped worldwide; Cost-competitive pricing; Send your RFQ today.
Product SKU: 1
Product Brand: DAG
