Device Description
| Power (kW) | 400 | Dimension(L*W*H) | Custom Made |
|---|---|---|---|
| Usage | Heat Treatment Furnace | Total Oven Length | 35.5m |
| Conveying Belt Speed | 300~1000mm/min, Inverter Control | ||
| High Light | Aluminium Radiator Brazing Furnace, 1000mm / Min Radiator Brazing Furnace, Controllable Atmosphere Radiator Brazing Furnace | ||

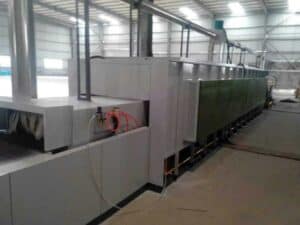

Aluminium Radiator Brazing Furnace With Controllable Atmosphere
An aluminum brazing furnace system with a controllable atmosphere is mainly used for continuous brazing of aluminum water tanks, oil coolers, intercoolers, warm air, tubular condensers, evaporators, parallel flow condensers, cascade evaporators, air coolers of power stations under nitrogen protection atmosphere.
Technical Parameters
| Serial number | Name | Length*Width*Height | Material |
| 1 | Spray zone | 7000*1360*250mm | The spray room is made of 304 Stainless steel; The masses are used low-carbon steel for welding |
| 2 | External size of drying furnace | 8000*1850*2000mm |
The outside frame is processed and welded from low-carbon steel material |
| 3 | Internal size of drying furnace | 8000*1050*250mm | Internal plate 304 Stainless steel, thickness 2mm |
| 4 | External size of a burning furnace | 10000*2150*1900mm |
The outside frame is processed and welded from low-carbon steel material |
| 5 | Internal size of a burning furnace | 1000*1050*250mm | Muffle 316L stainless steel, thickness of 8mm length. Use the whole sheet for bending without splicing |
| 6 | External size of air-cool room | 6000*1360*1900mm |
Processed and welded from low-carbon steel material |
| 7 | Mesh belt | Width 1000mm Filament diameter3.2mm | Brazing zone 316L Other parts 304 Stainless Steel |
| 8 | The total length of the equipment | 35.5m |
Advantages
a) Natural gas burners and control solenoid valves are all well-known Sinon brands in China.
b) Each burner is equipped with an independent gas valve control system.
C) The temperature controller automatically adjusts the flame size by air-fuel ratio to achieve uniform temperature control.
d) The drying oven adopts an independent conveyor belt and stepless variable frequency speed drive system.
e) Cleaning and maintenance openings are arranged on one side of the furnace body.
f) The preheater has a heat exchanger for heat recovery and utilization. The heat discharged can be reclaimed twice to the drying oven, and the air is preheated to save energy.
