Material: Aluminum Alloy 4343/3003/7072; 4343/3005/7072; 4343/3003; 4343/3003/4343; 4045/3003; 4045/3003/7072; 3003
Aluminum tubes are available in a wide range of sizes and alloys to ensure optimum performance for the required application.
Tubes are primarily clad in aluminum, enabling the combination of low melting point brazing alloys with high strength cores and the addition of corrosion resistant inner cladding as required. New high-strength, corrosion-resistant, long-life alloys are now in regular production, offering the possibility of cost and weight reductions.
Cores with brazing alloys on both the inner and outer surfaces can be used in pressurized air and oil cooler applications, allowing internal spoilers to be brazed to the tube wall, creating an uninterrupted heat flow medium from coolant to air.

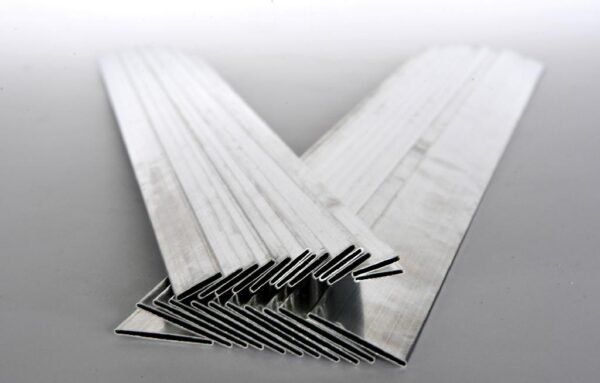

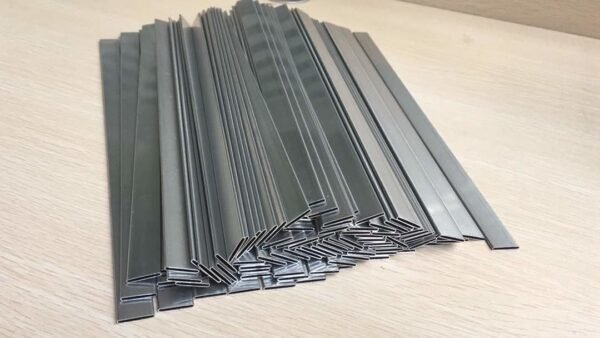

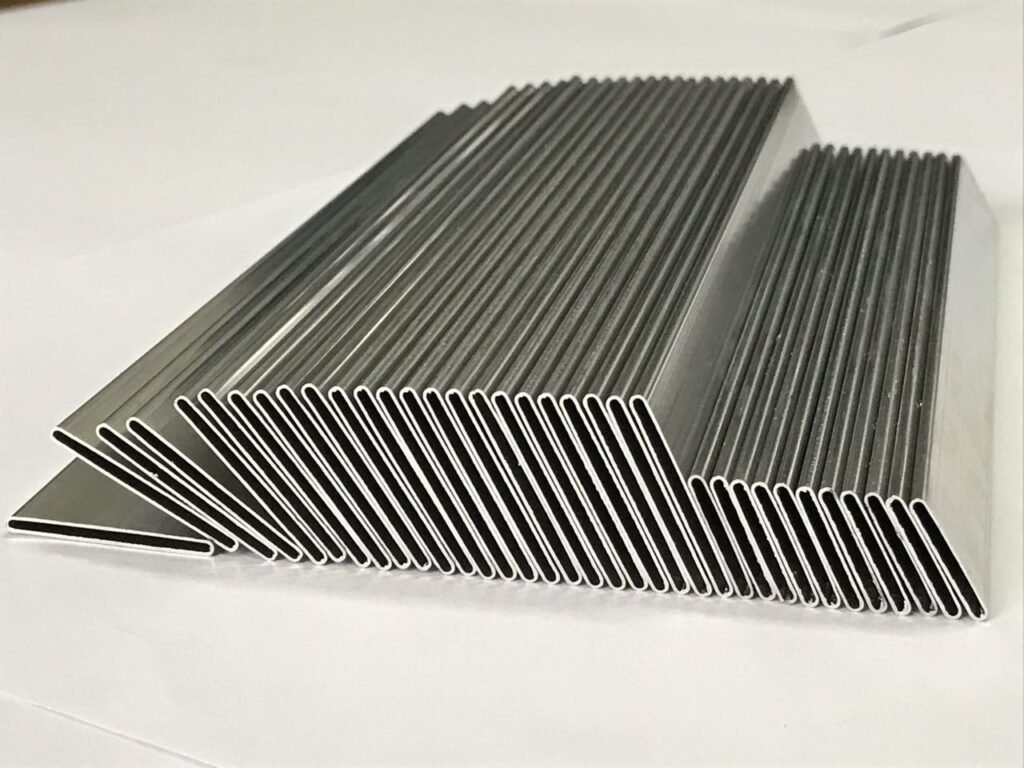

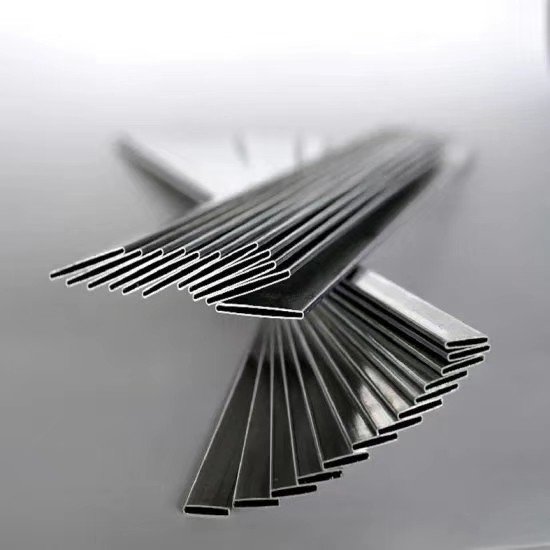

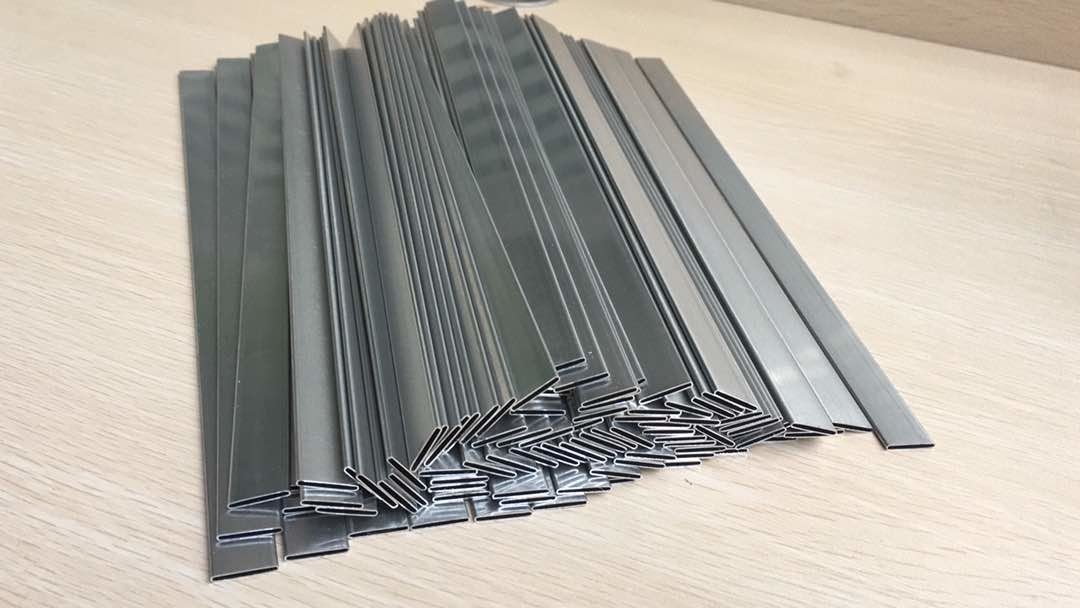

High frequency welded aluminum flat tube for automobile radiator
| Tube size(mm) | Wall thickness(mm) |
| 16 * 1.5 | 0.3 |
| 16 * 1.4 | 0.3 |
| 40 * 2.0 | 0.3 |
| 16 * 2.0 | 0.26 |
| 16 * 2.0 | 0.28 |
| 16 * 2.0 | 0.3 |
| 18 * 2.0 | 0.3 |
| 22 * 2.0 | 0.3 |
| 22.5 *1.5 | 0.3 |
| 26 * 2.0 | 0.3 |
| 26 * 2.0 | 0.32 |
| 32 * 2.0 | 0.3 |
| 32 * 2.0 | 0.32 |
| 32 * 2.0 | 0.35 |
High frequency welded aluminum tube for automobile charge air cooler
| Tube size(mm) | Wall thickness(mm) |
| 64 * 8.08 | 0.5 |
| 64 * 7.6 | 0.45 |
Features of our high frequency welded aluminum flat tube
1.High brightness, anti-corrosion, anti-oxidation.
2. Good straightness, no deformation.
3. High strength, good toughness.
4. Neat and smooth section, no burr.
5. High-frequency welding, precise specifications.
6.Flat tube size specification can be customized to meet your special requirements.
