Pneumatic Condenser Core Builder Machine

Pneumatic Condenser Core Builder Machine

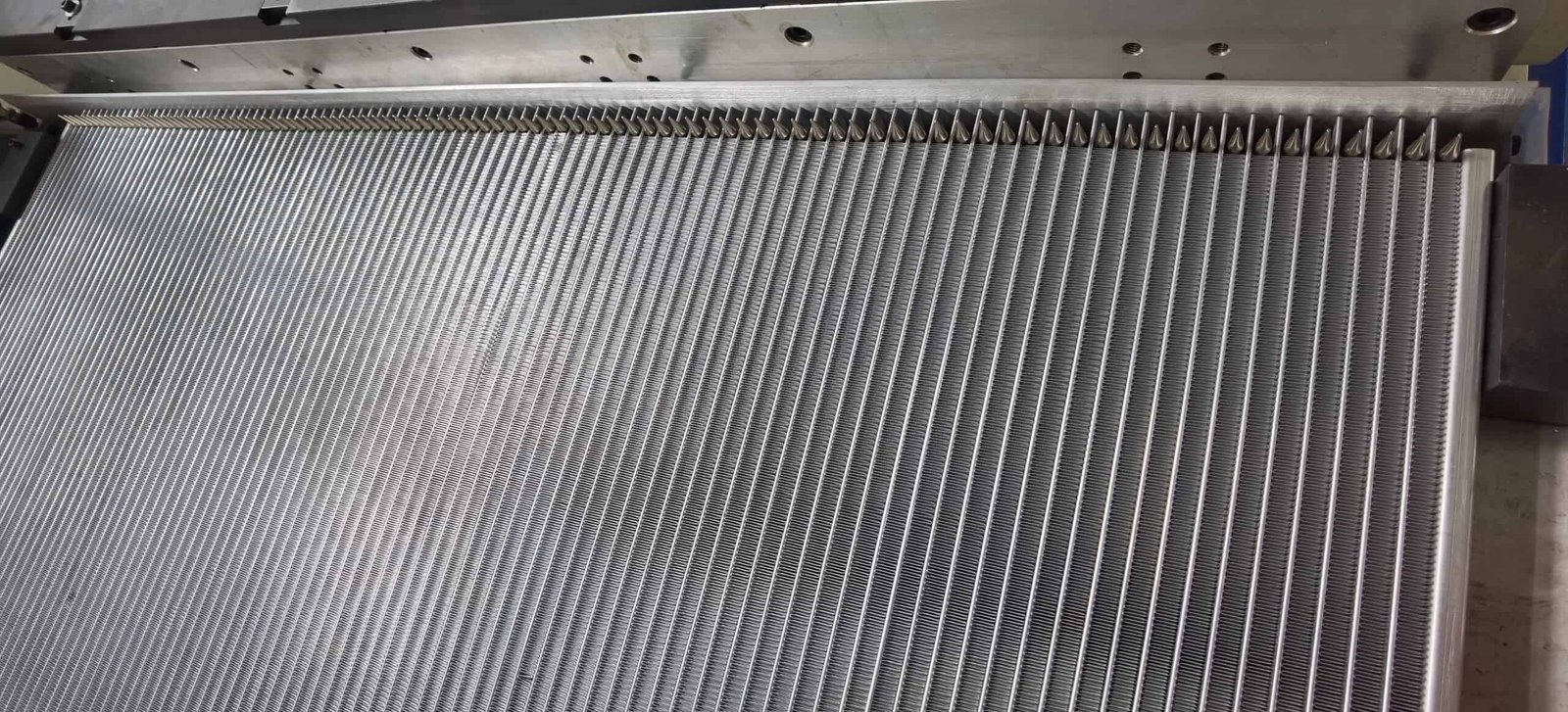

core assembly

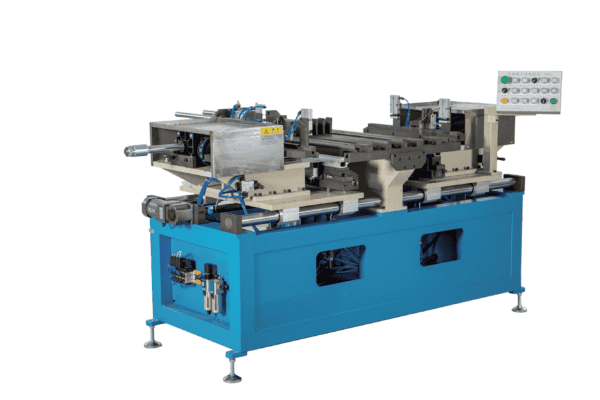

This machine is special equipment for assembling the core of an automobile condenser. It is used to assemble the manifold, harmonica tube, fin tube and flat tube together to form the automobile condenser. This machine has the advantages of high processing accuracy, high positioning accuracy, simple and fast operation, safety and reliability, etc. It is suitable for products of different sizes. Affordable price, welcome to inquire! Welcome to buy!

Send Your Inquiry Now

Machine Introduction

The machine is special equipment for assembling the condenser core. The machine is used to construct the collector, harmonica, fin, and flat tubes into a car condenser. The power of the machine is controlled by the cylinder, the process structure adopts the guide rail, and the position structure adopts the electrical equipment and machinery. The machine has the advantages of high process precision and high positioning accuracy. Simple operation, fast, safe, reliable, suitable for many variety of products.

Machine Parameters

Core height (distance between main boards) 280mm-800mm
Core width (main board length) 200mm-700mm
Core thickness 16mm-26mm
Pressure of pneumatic system 0.4Mpa-0.7Mpa
Raw No. One
Power Single phase 220 (V)
Dimension 1.2（T）
Equipment weight(L×W×H) 2300mm× 1800mm×1200mm
