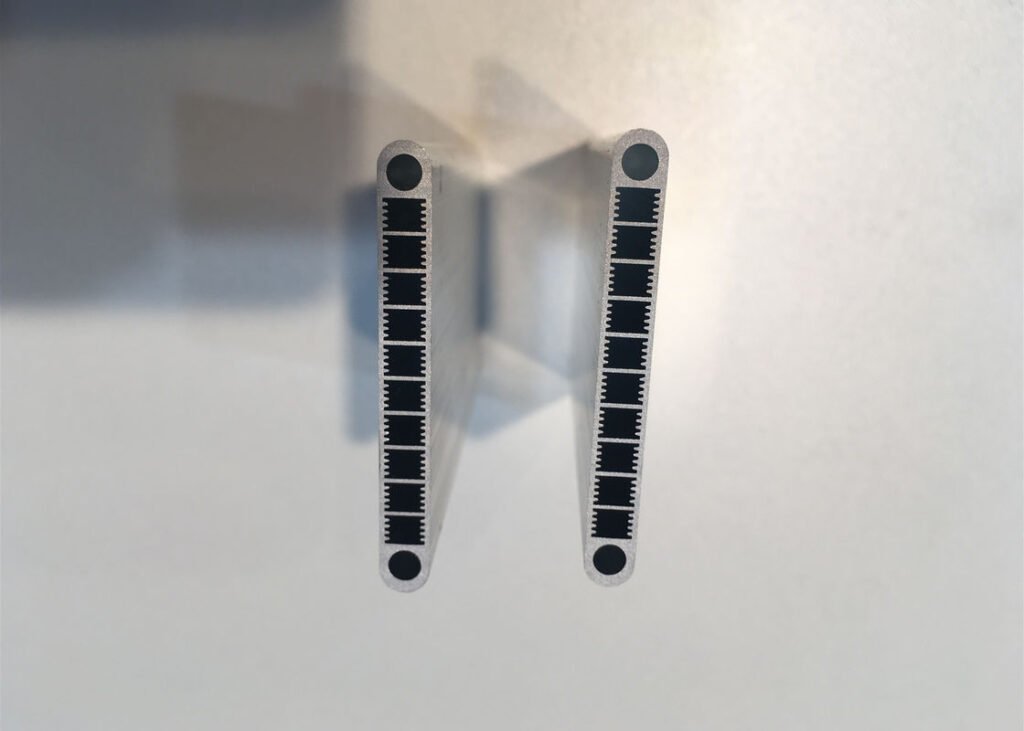

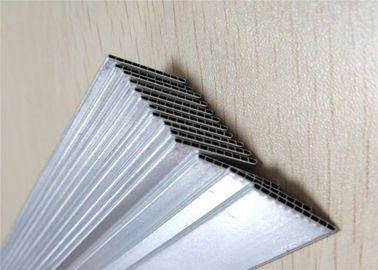

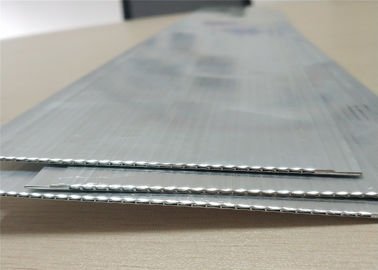

Micro Porous Extruded Aluminum Tubes (MPE Tubes) are unique tubes developed using the highest manufacturing quality. We do our best to create lightweight designs to help our customers reduce the weight of their tubes and lower production costs, while ensuring that the thermal and electrical conductivity of the tubes are maintained, we provide tubes with excellent forming and bending capabilities, as well as good corrosion and compression resistance, which will enable our customers to keep their products with a longer service life and good working performance. In addition, aluminum is a very environmentally friendly material with good recycling value. For tube dimensions, we have very strict molds that can control the tolerance within a very narrow range. For the inside and outside of the tubes, clean, clog-free and contaminant-free tubes can be supplied.
Product Features
Micro Multi Porous Extruded Aluminum Tubes (MPE Tubes) are mainly used in the production of heat exchangers. Due to their high corrosion resistance and good thermal conductivity, MPE tubes are particularly suitable for evaporators and condensers.MPE tubes require higher burst strength and better thermal conductivity to optimize the product dimensions. To meet the market demand, we have developed galvanized and flux-coated MPE tubes, which can be supplied in coils or in uncut split legal sizes.
Aluminium Alloy: 3003,3102,1100,1050
Temper: O, F, H111, H112
Shape: Flat Oval

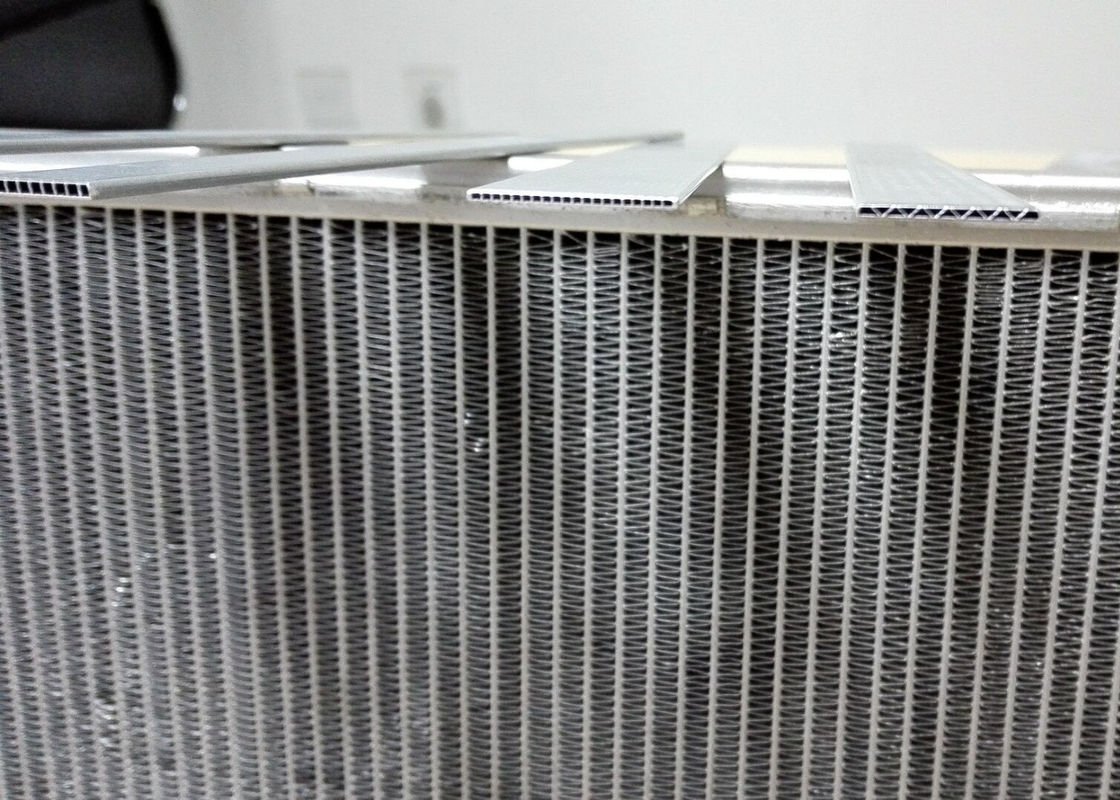

Applications: Radiators, Condensers, Evaporators
Surface: Zinc-spraying / Without Zinc-spraying
Aluminum Alloy Product Mechanical Properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
Package: In coil or Straight with fixed length.Packed in plywood box specialized for export.
