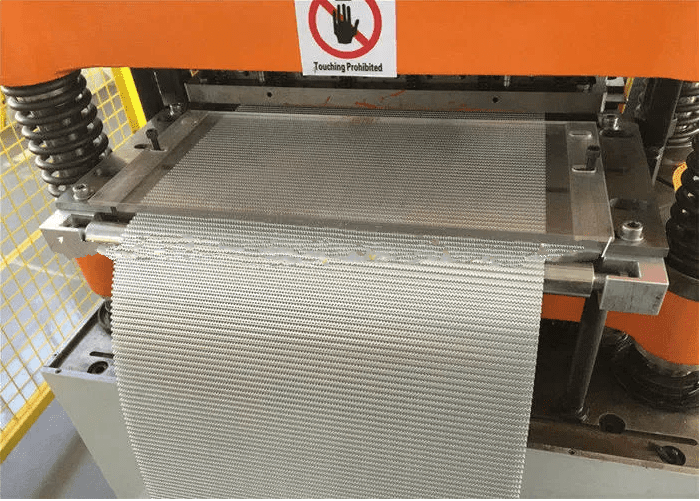

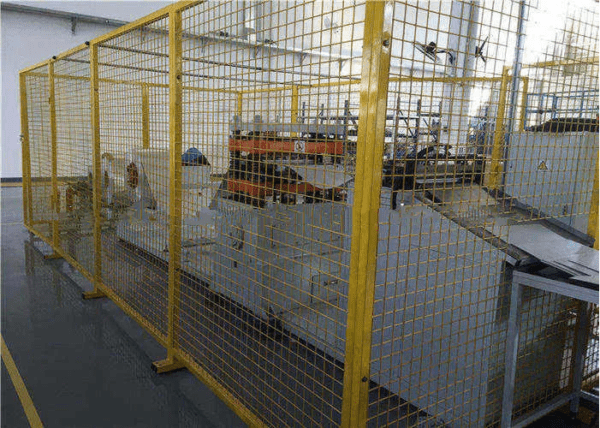

3003 Foil Radiator Fin Machine For 45mm Height With Stable Performance

Radiator Fin Machine

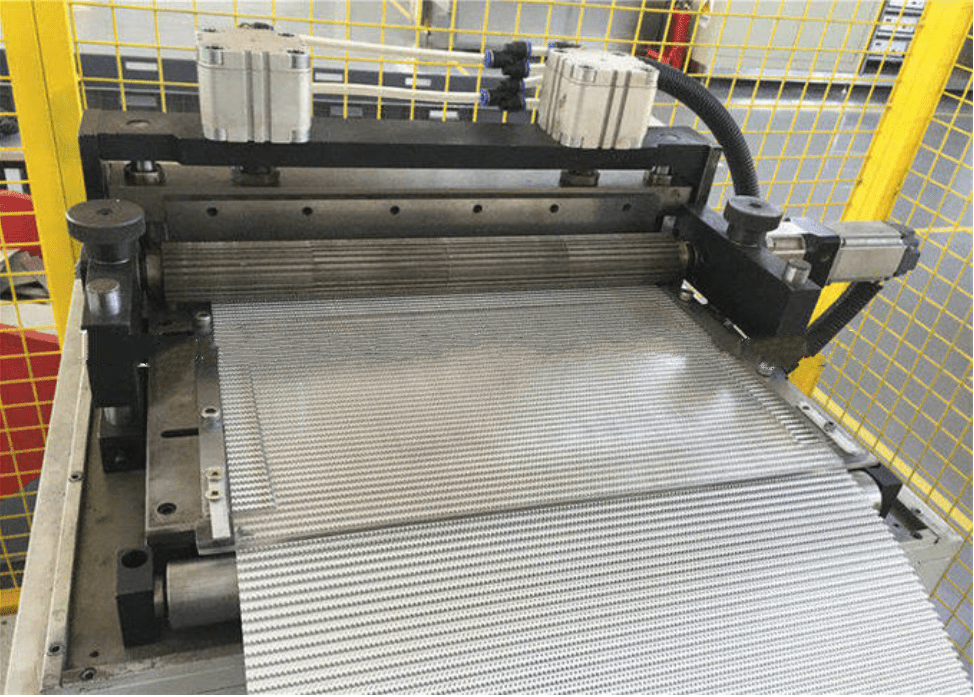

3003 Foil Radiator Fin Making Machine

An aluminum radiator fin machine, also called a fin stamping machine, is used to produce the following fins: straight and flat fins, serrated fins, perforated fins, wavy fins, louvered fins, and others.

Send Your Inquiry Now

Machine Description

Name: Radiator Fin Machine
Max Fin Width: 300mm
Fin Height: 45 Mm
Weight: 2000kgs
Size: 1800*1000*2000
High Light: Fin press machine， flat fin machine

Technical Parameters

Machine Technical Parameters Power supply customized 3P five-wire
Fin height: 45mm Fin pitch: 8F
Punching force 4200kg
Fin Size Fin Width max 300mm
customized
Fin height accuracy +/-0.01-0.05mm
Overall Size L, W, H 1800*1000*2000mm
Total Weight 2000kg

Components List of 3003 Foil Radiator Fin Machine

NO. Item Q’ty
1 Stamping Type Radiator Fin machine body 1 set
2 Decoiler 1 set
3 Lubrication device 1 set
4 Servo cutter 1 set
5 Collection table 1 set
6 Toolbox 1 set
7 Accessories Several

Additional information

Product Origin

CHINA
Brand Name

DaG MC
Model Number

DGF-3003
MOQ

1
Lead Time

60 day
Payment

30% DEPOSIT,70% BEFORE DELIVERY
Packaging Details

Wooden boxes that meet international export standards
Supply Ability

10sets/month
